2009 Kia Sorento 4WD V6-3.3L
Main Bearing Oil Clearance
2009 Kia Sorento 4WD V6-3.3LSECTION Main Bearing Oil Clearance

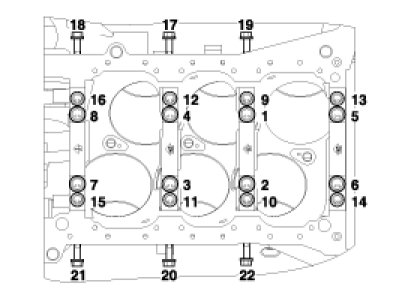

Main Bearing Cap
Tightening torque
Main bearing cap bolt
49.00 Nm (5.0 kgf.m, 36.16 lb-ft) + 90 ° (1 - 8)
19.60 Nm (2.0 kgf.m, 14.46 lb-ft)+ 120 ° (9 - 16)
29.40 - 31.36 Nm (3.0 - 3.2 kgf.m, 21.70 - 23.14 lb-ft) (17 - 22)
NOTE:
- Always use new main bearing cap bolt.
- If any of the bearing cap bolts in broken or deformed, replace it.
Crankshaft Bearing Size Codes
