2009 Kia Sorento 2WD V6-3.8L
Pinout Values and Diagnostic Parameters
2009 Kia Sorento 2WD V6-3.8LSECTION Pinout Values and Diagnostic Parameters
ENGINE CONTROL MODULE (ECM)

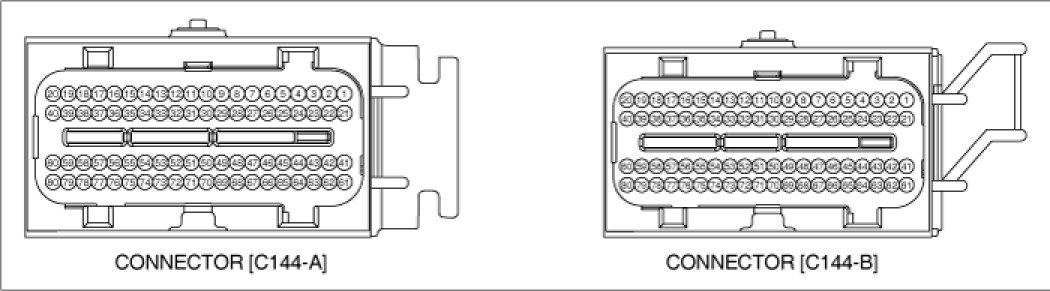

1. ECM HARNESS CONNECTOR

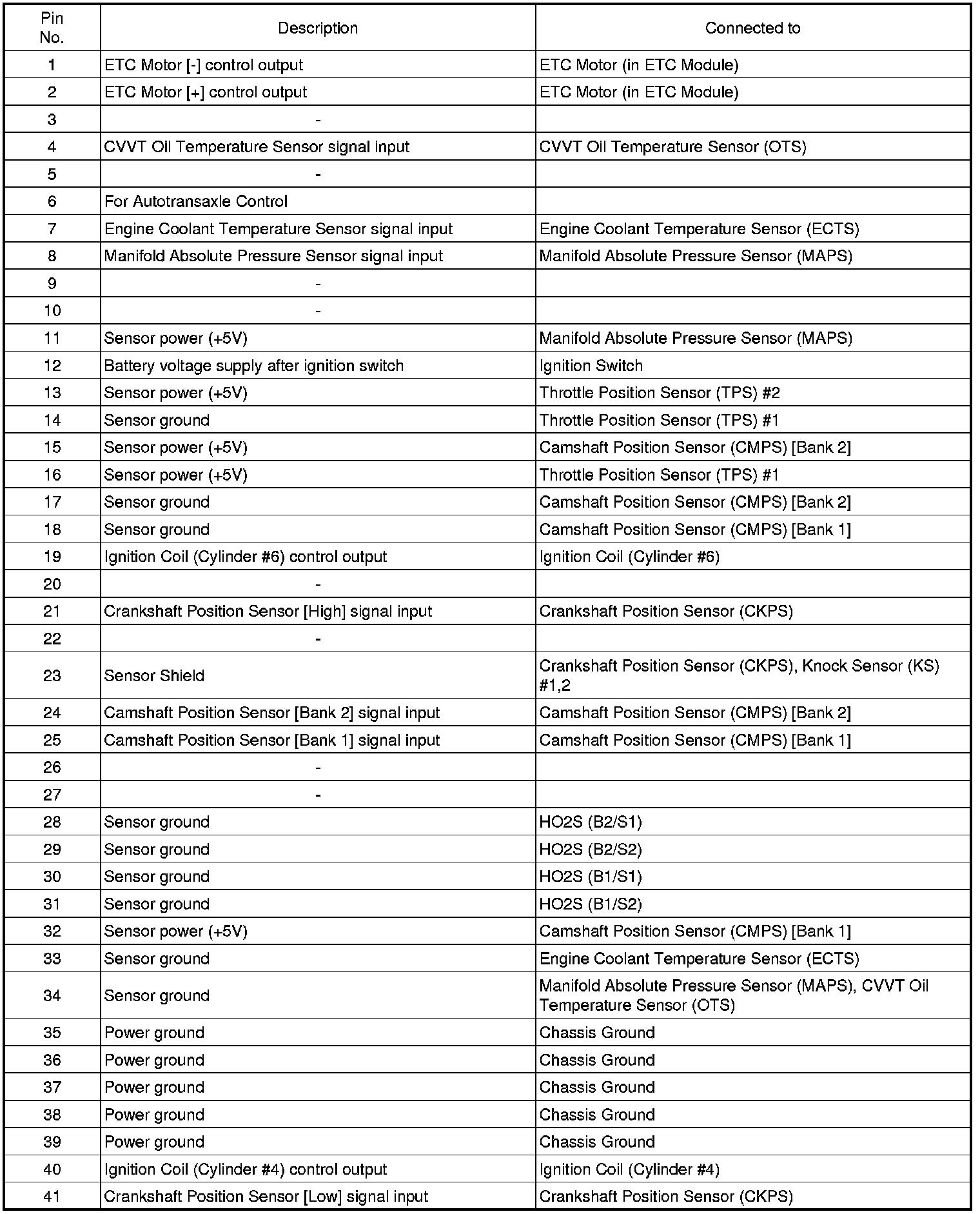

2. ECM TERMINAL FUNCTION

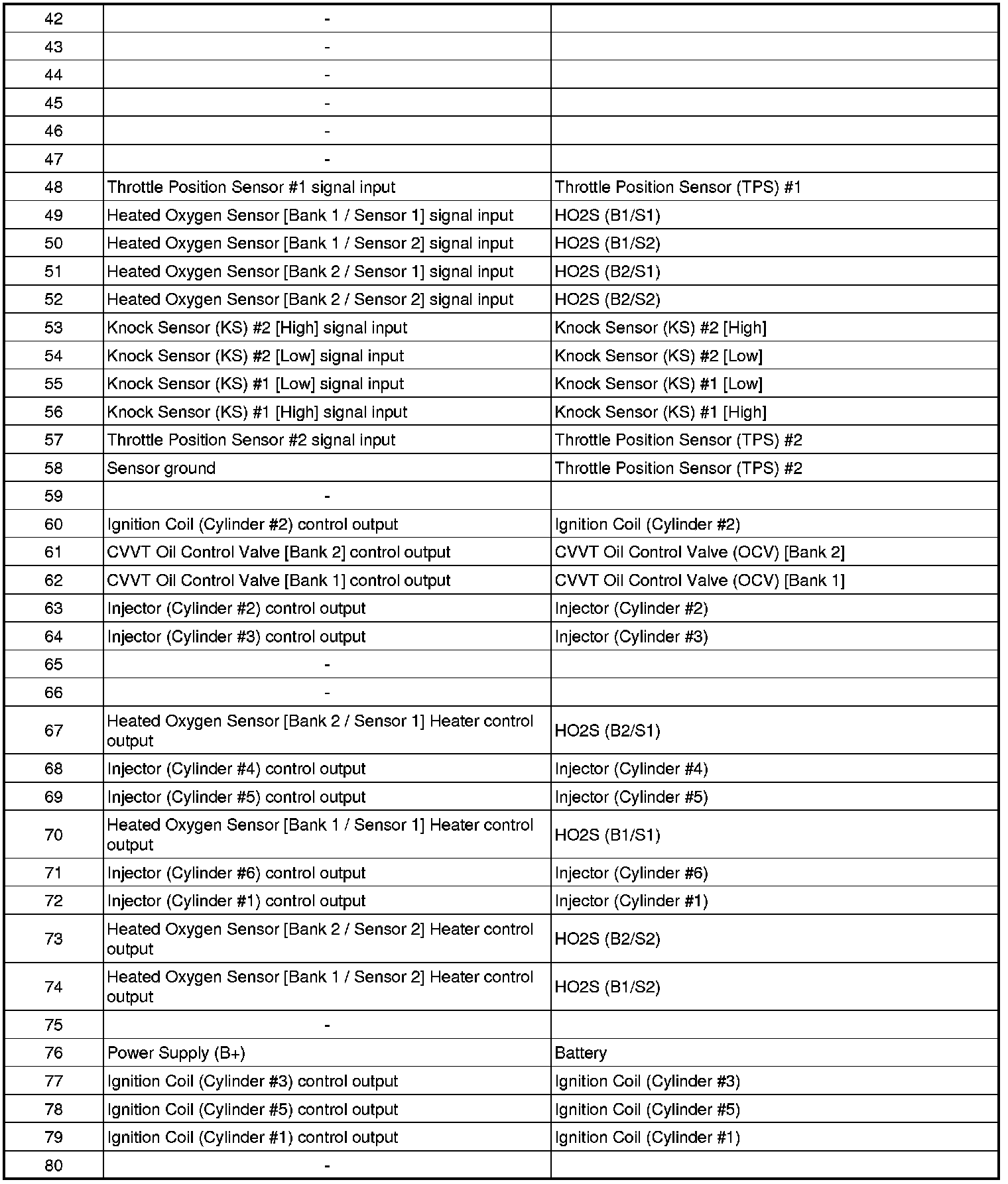

CONNECTOR [C144-A]

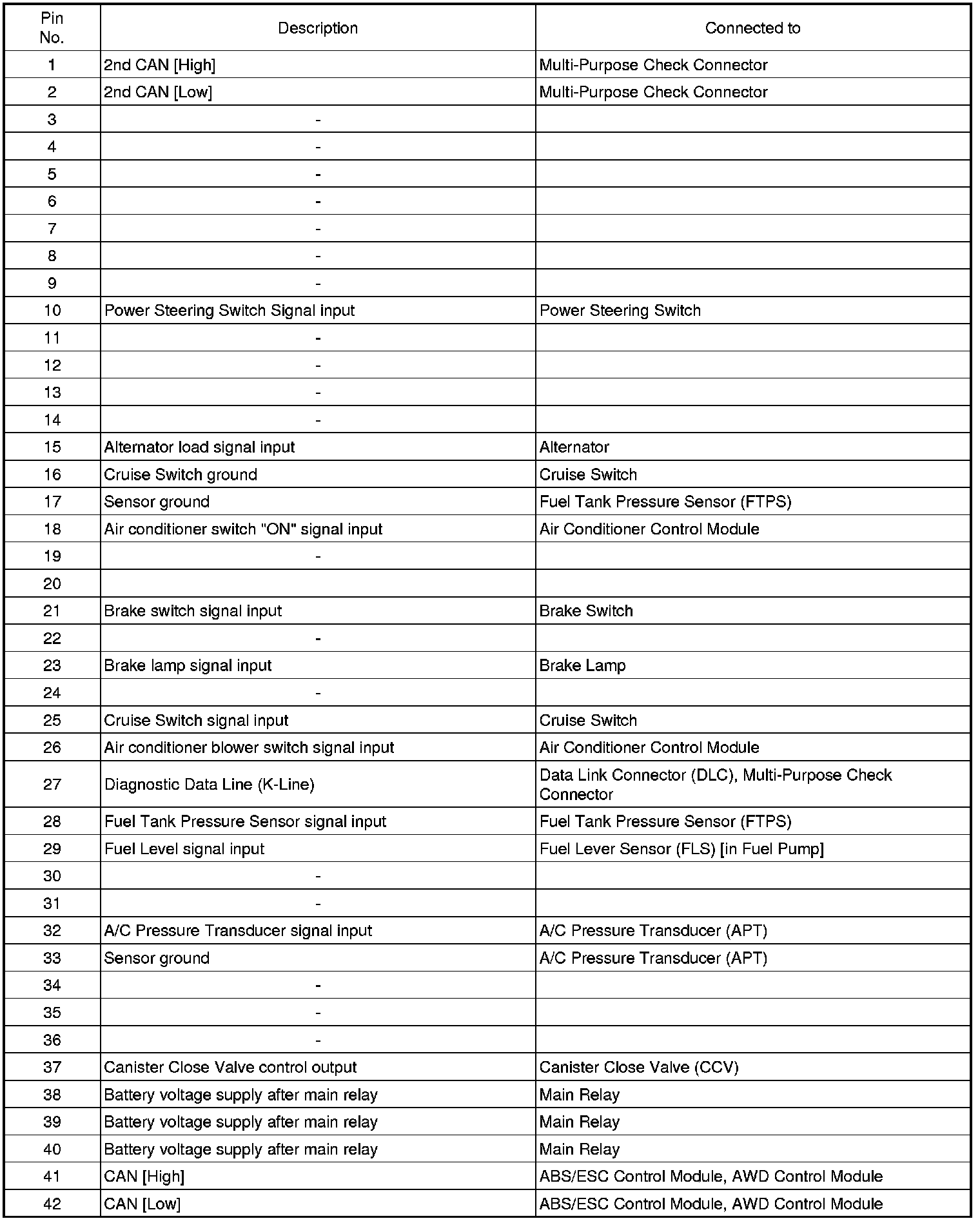

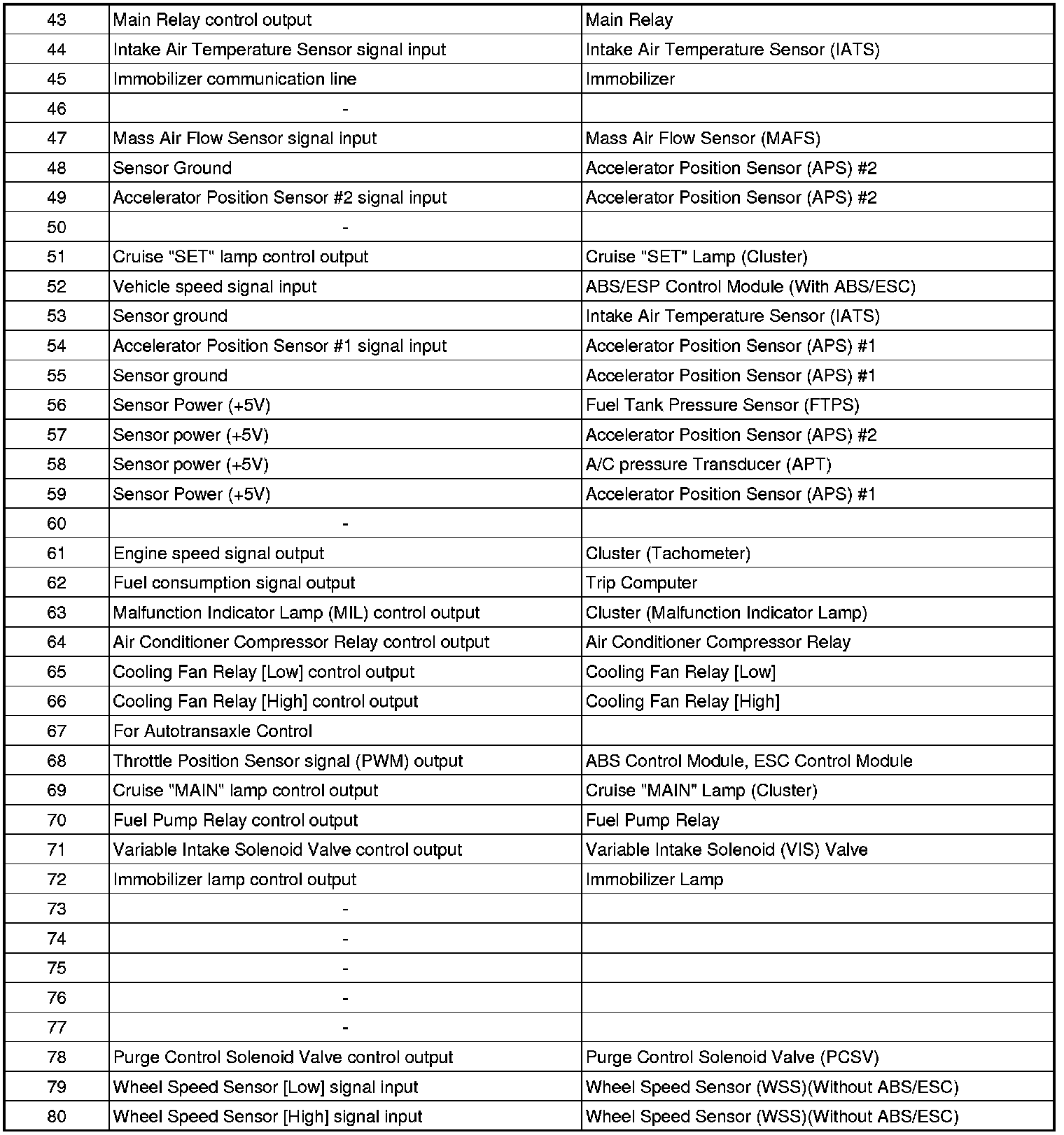

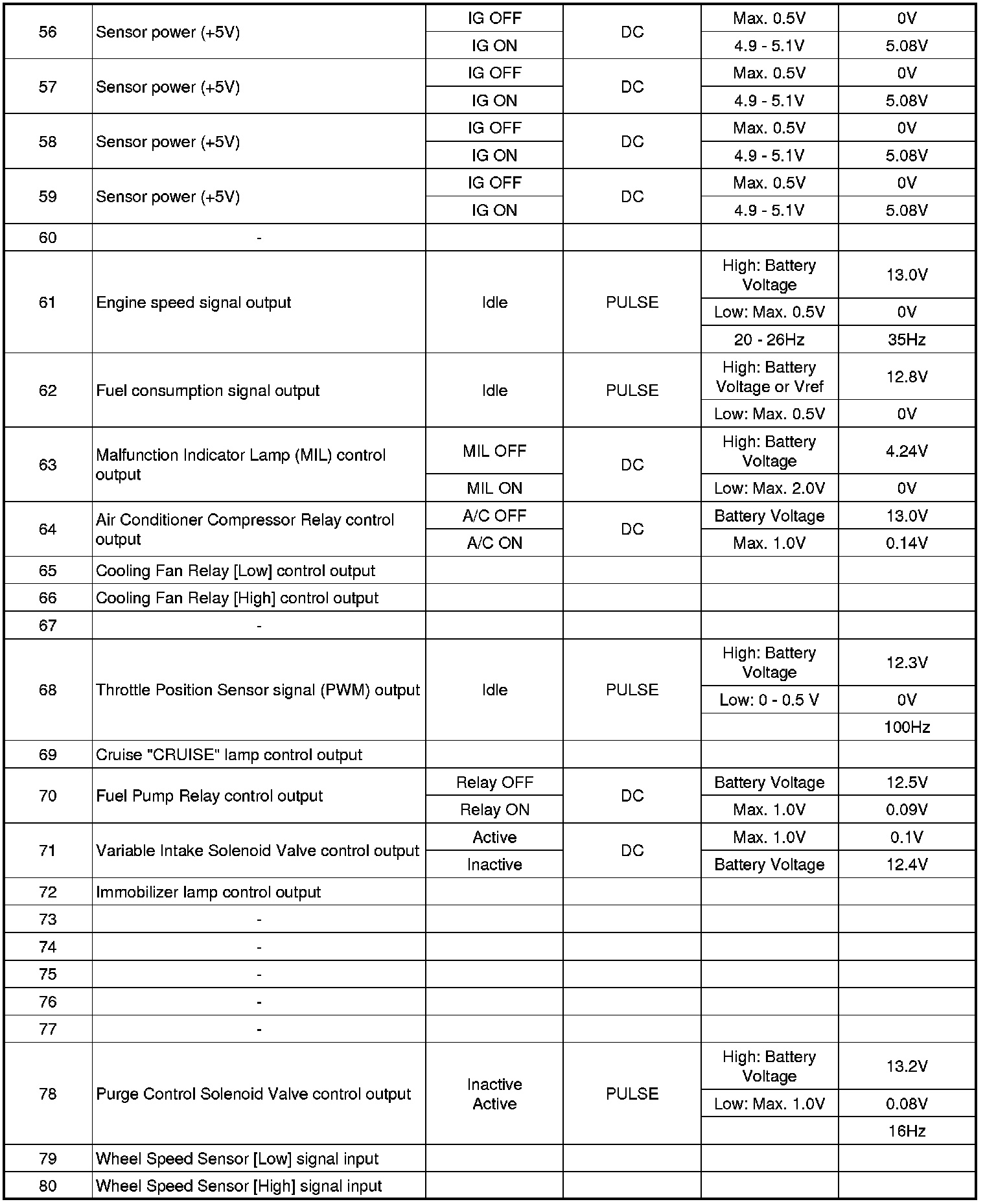

CONNECTOR [C144-B]

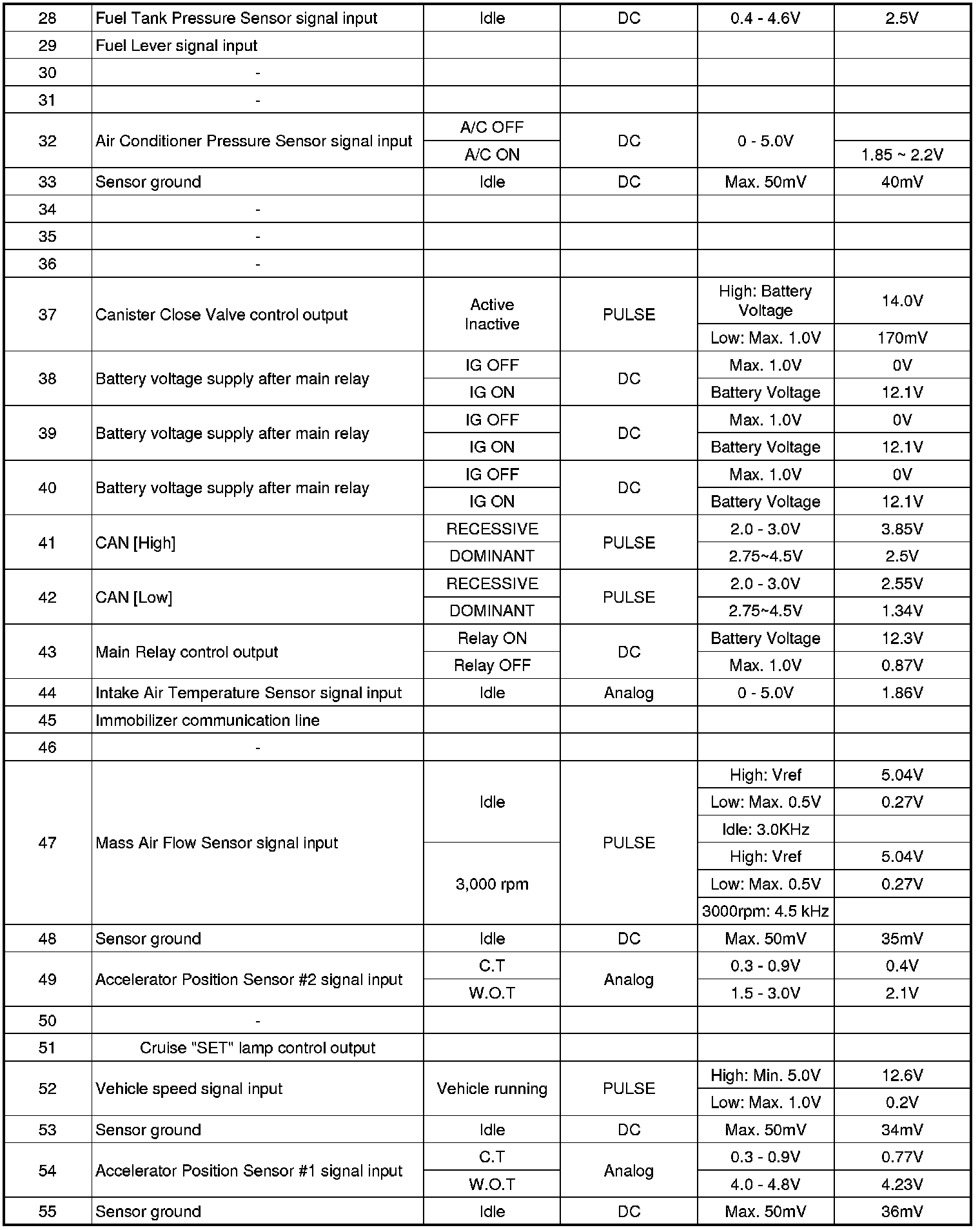

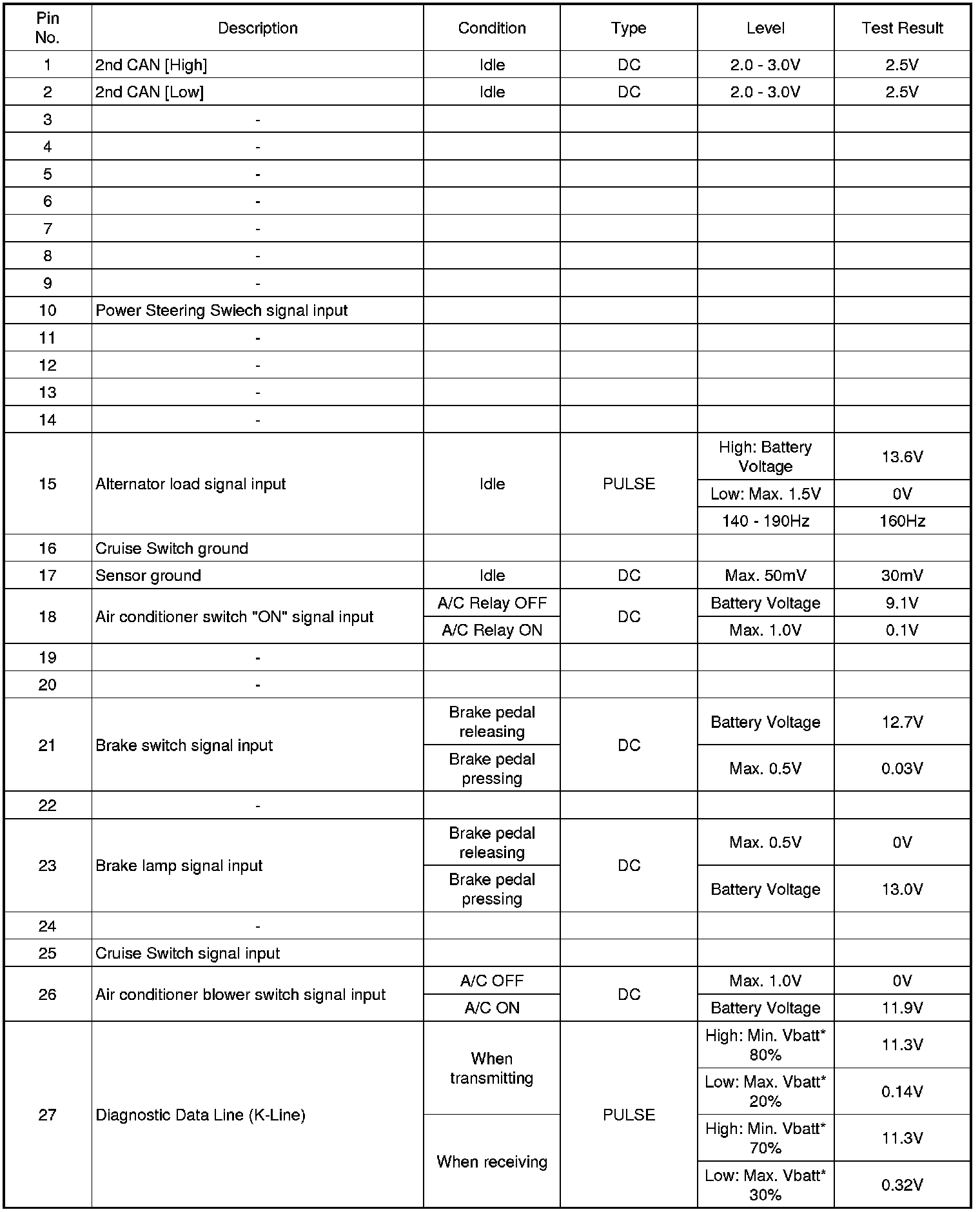

3. ECM TERMINAL INPUT/OUTPUT SIGNAL

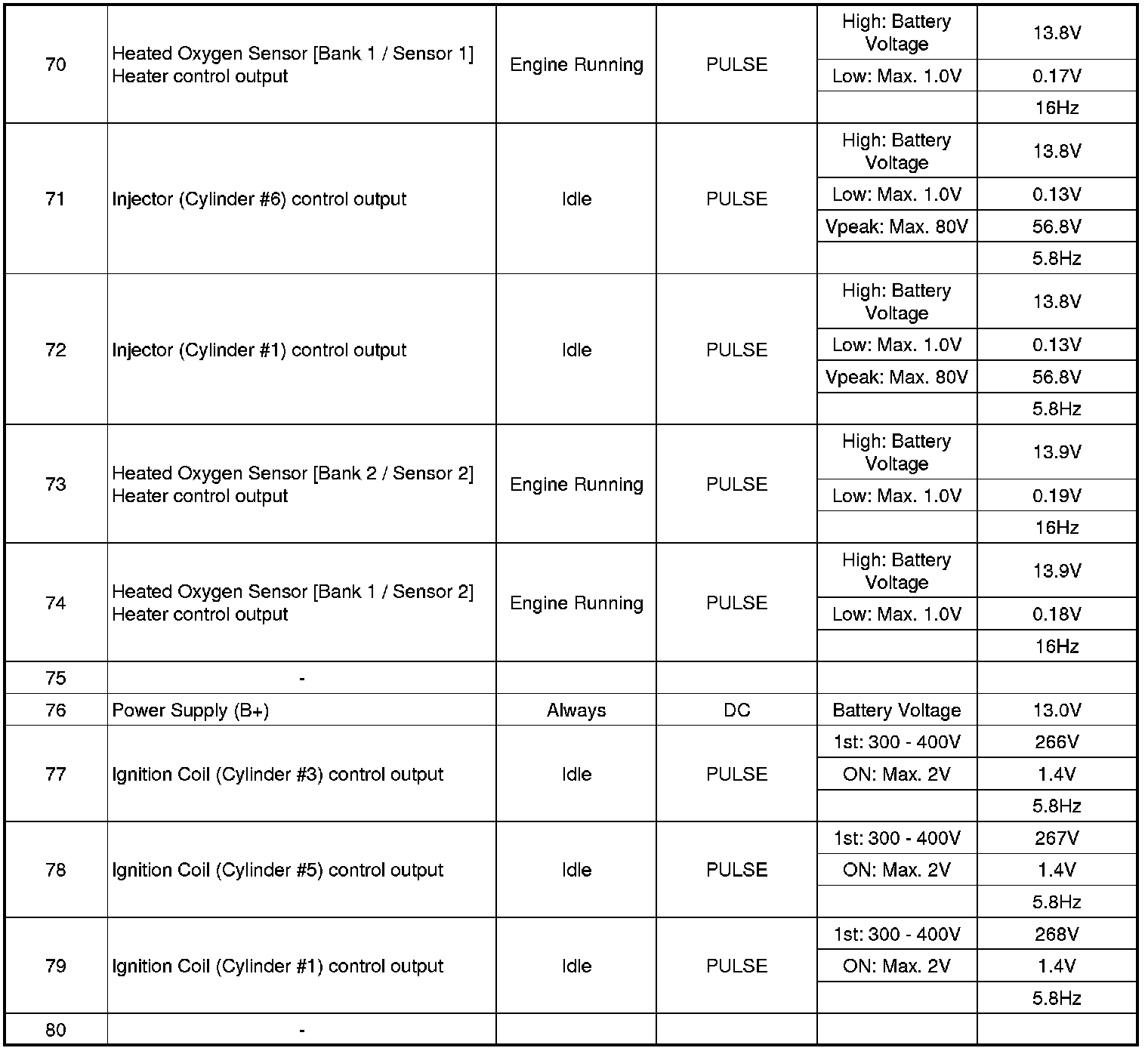

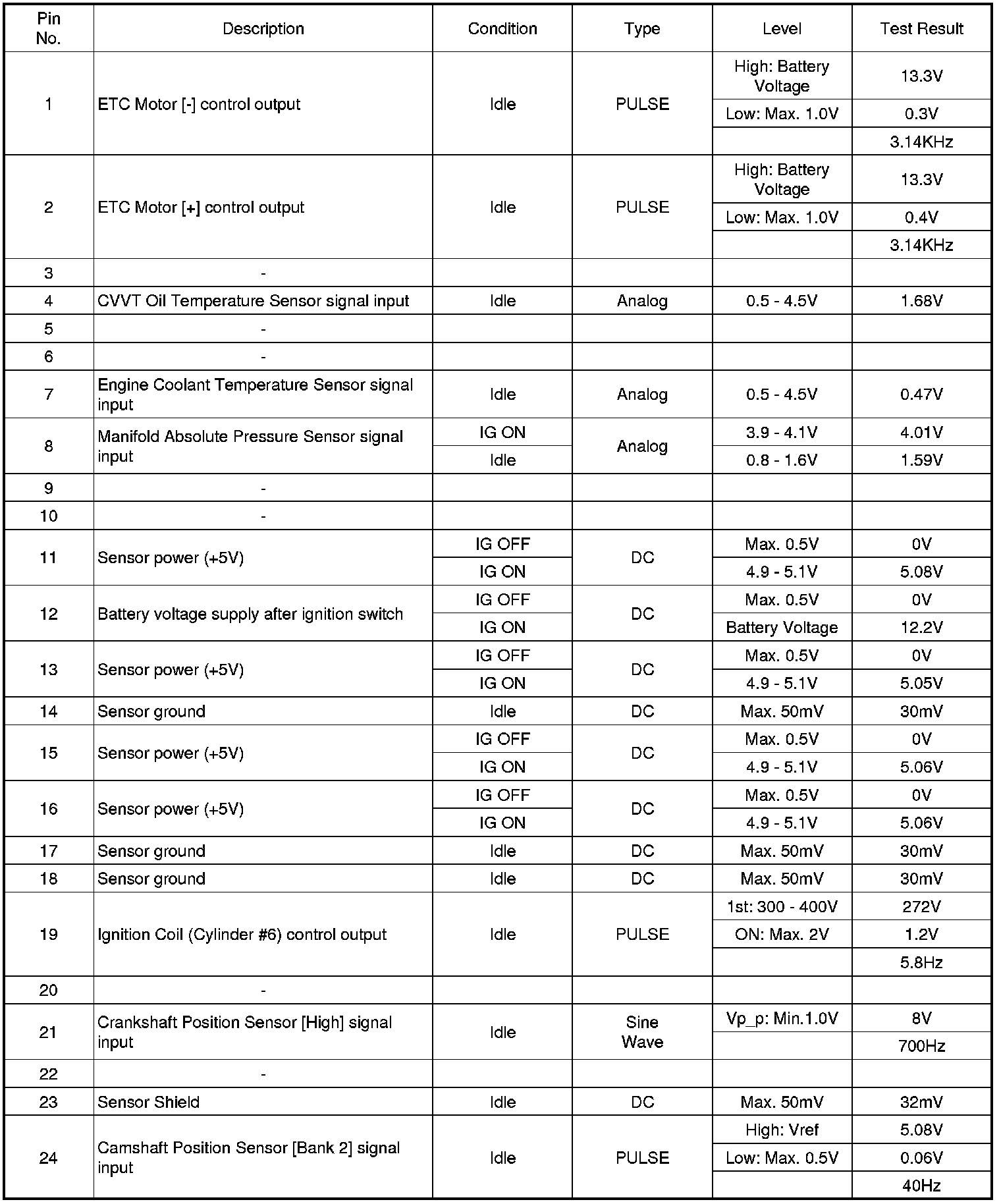

CONNECTOR [C144-A]

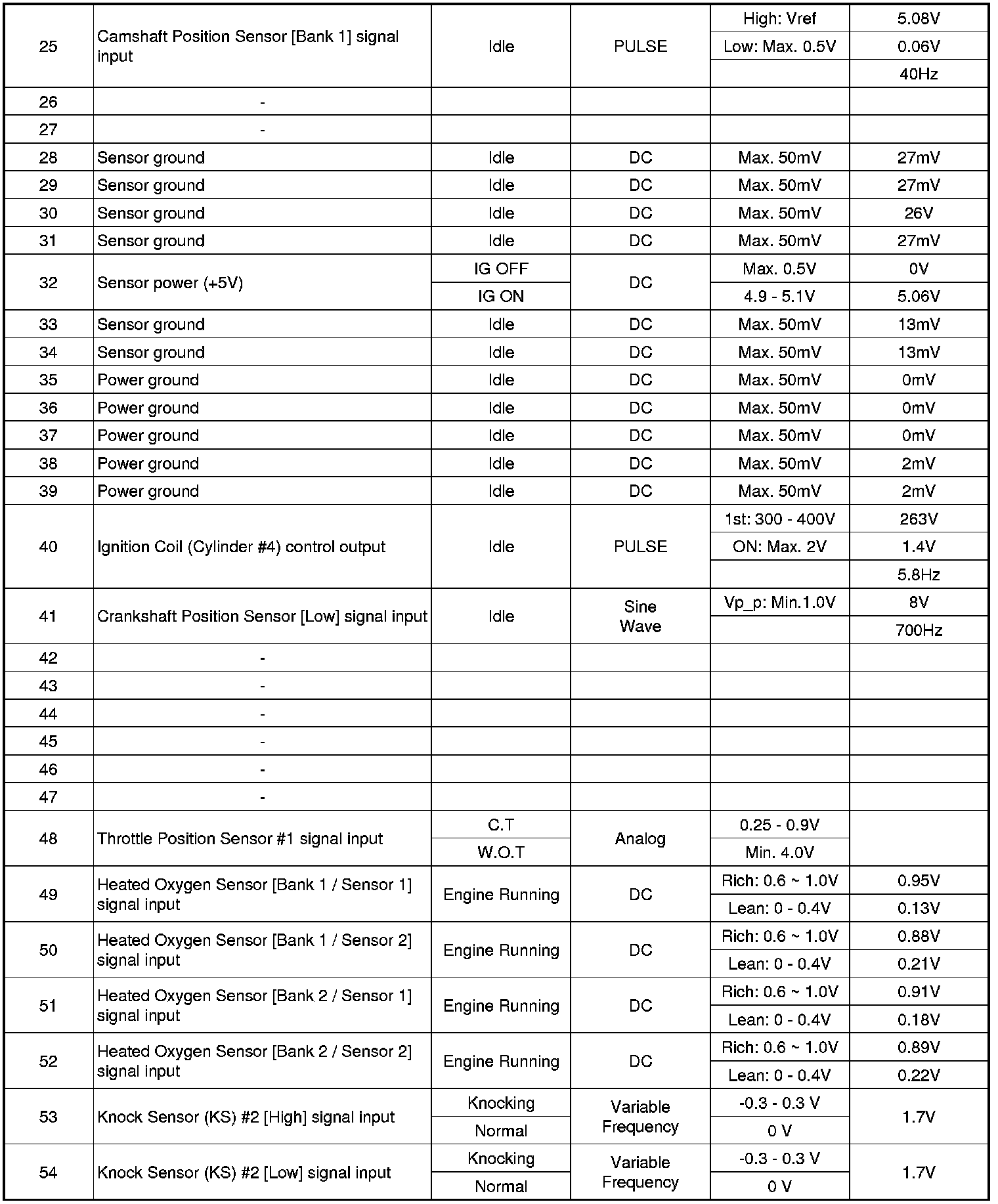

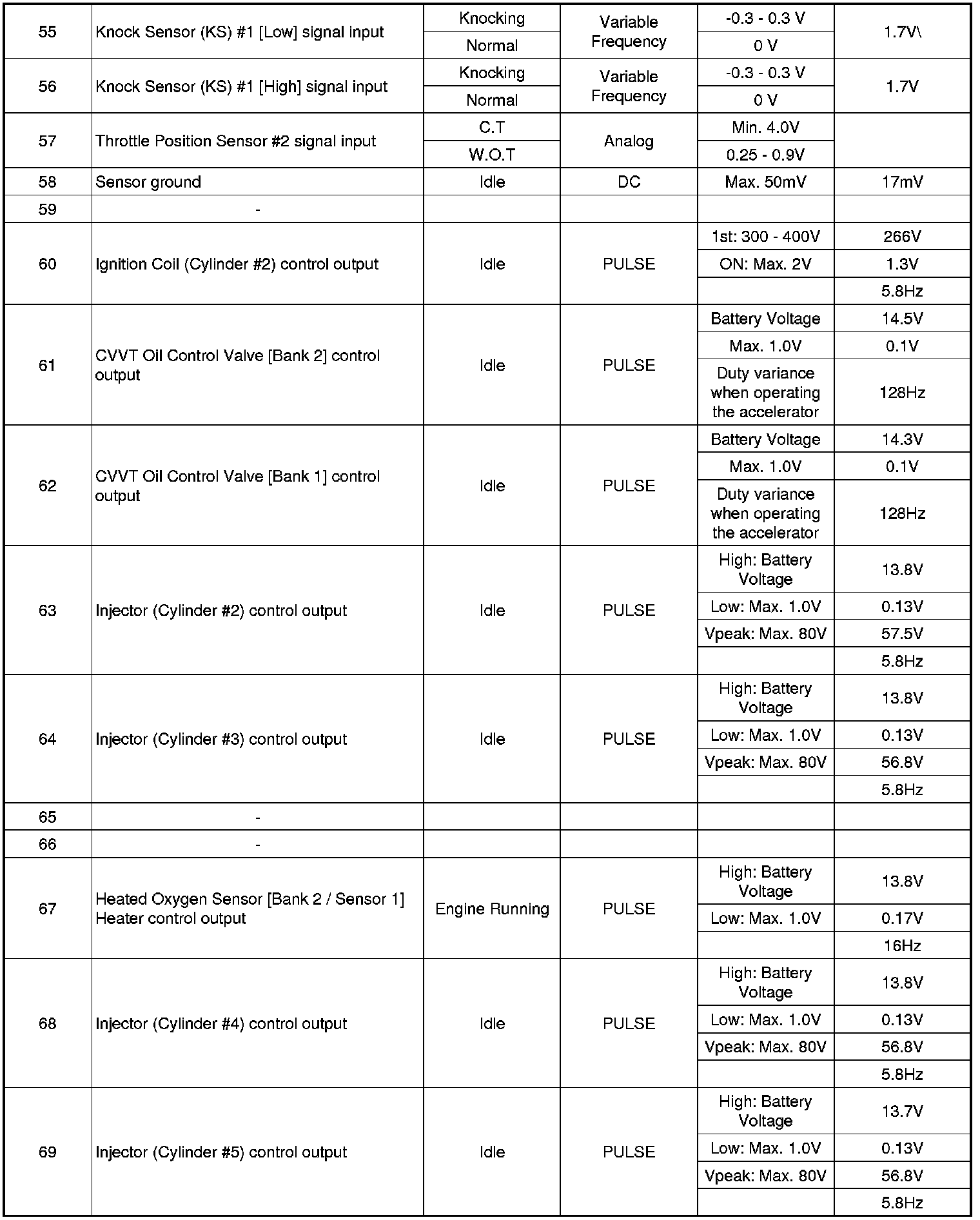

CONNECTOR [C144-B]
