Fail Safe Function
- TCM malfunction in 1st or 2nd gear.

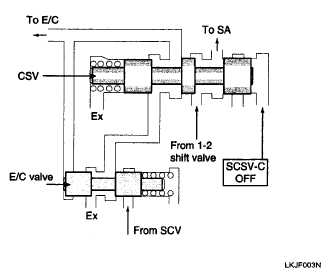

CUTTING OFF THE E/C PRESSURE BY E/C VALVE
SPEED REFERENCE CHARTSpeed F/C R/C E/C K/D 1st ◦ 2nd ◦ ◦ Fail ◦ ◦ - F/C, SR: from 2-3/4-3 shift valve
- R/C: from PCV-B
- SA: from 1-2 shift valve
- TCM malfunction in 1st or 2nd gear.
If the hydraulic pressure is supplied to E/C and the F/C, SR pressure is delayed.
SPEED REFERENCE CHARTSpeed F/C R/C E/C K/D 1st ◦ 2nd ◦ ◦ Fail ◦ ◦ - R/C, E/C, S/A: interlock
NOTE:- SA: Servo Apply pressure
- F/C: Front Clutch pressure
- R/C: Rear Clutch pressure
- K/D: Kick Down
- SCV: Shift Control Valve
- CSV: Control Switch Valve
- PCSV: Pressure Control Solenoid Valve
- SCSV: Shift Control Solenoid Valve
- PCV: Pressure Control Valve
- RCEV: Rear Clutch Exhaust Valve
