2008 Kia Rio Base, AutomaticFACTORY OEM SERVICE PROCEDURE
Immobilizer Control Unit: Replacement
- Disconnect the negative (-) battery terminal.
- Remove the crash pad lower panel (A). Refer to CRASH PAD . Take care of fixing clips (B).

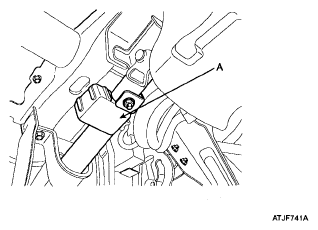

- Disconnect the 5P connector of the SMARTRA unit and then remove the SMARTRA unit (A) after loosening the nut.
- Installation is the reverse of removal procedure.
