2007 Kia Rondo BaseFACTORY OEM SERVICE PROCEDURE

Automatic Transaxle: Installation

Install the transaxle lower mounting bolts after fitting the transaxle assembly into the engine assembly.
TORQUE : 80~100 Nm (8.0~10.0 kgf.m, 57.9-72.3 lb-ft)

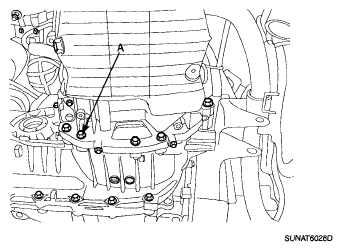

Fig 1: Identifying Transaxle Lower Mounting Bolts
Courtesy of KIA MOTORS AMERICA, INC.
Install the transaxle insulator mounting bracket bolts (A).
TORQUE : 60-80 Nm (6.0-8.0 kgf.m, 43.4-57.9 lb-ft)

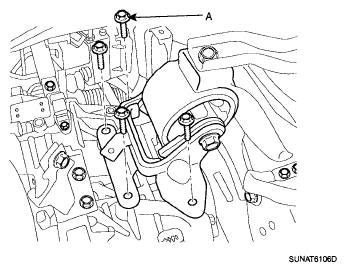

Fig 2: Identifying Transaxle Insulator Mounting Bracket Bolts
Courtesy of KIA MOTORS AMERICA, INC.
Install the drive plate bolts (A) by rotating the timing gear.
TORQUE : 46-53 Nm (4.6-5.3 kgf.m, 33.3-38.3 lb-ft)

NOTE: Install the bolts (A-6ea) rotating the crankshaft clockwise.
