2007 Kia Rondo BaseFACTORY OEM SERVICE PROCEDURE
Operation Components And Function

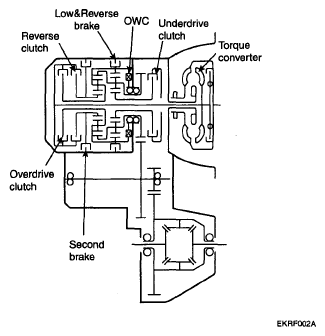

OPERATION COMPONENTS AND FUNCTION
| Operating Element | Symbol | Function |
|---|---|---|
| Under drive clutch | UD | Connect input shaft and under drive sun gear |
| Reverse clutch | REV | Connect input shaft and reverse sun gear |
| Overdrive clutch | OD | Connect input shaft and over drive carrier |
| Low & | Reverse brake LR | Hold LR annulus gear and OD carrier |
| Second brake | 2ND | Hold reverse sun gear |
| One way clutch | OWC | Restrict the rotating direction of low & reverse annulus gear |
