2007 Kia Rondo BaseFACTORY OEM SERVICE PROCEDURE

Front Wheel Speed Sensor: Removal

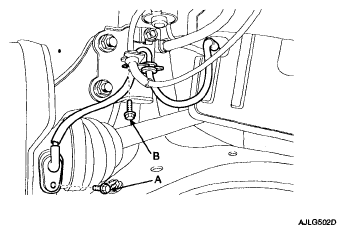

Remove the front wheel speed sensor mounting bolt (A) and cable mounting bolt (B).

Fig 1: Identifying Front Wheel Speed Sensor Mounting Bolt And Cable Mounting Bolt
Courtesy of KIA MOTORS AMERICA, INC.

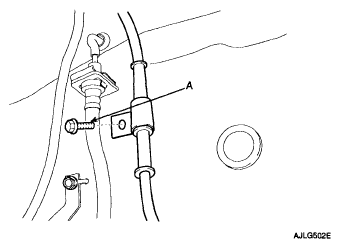

Remove the front wheel speed sensor bracket (A).

Fig 2: Identifying Front Wheel Speed Sensor Bracket
Courtesy of KIA MOTORS AMERICA, INC.
Remove the front wheel guard.
Disconnect the front wheel speed sensor connector (A), then remove the front wheel speed sensor.
