Pinion Jump-Out

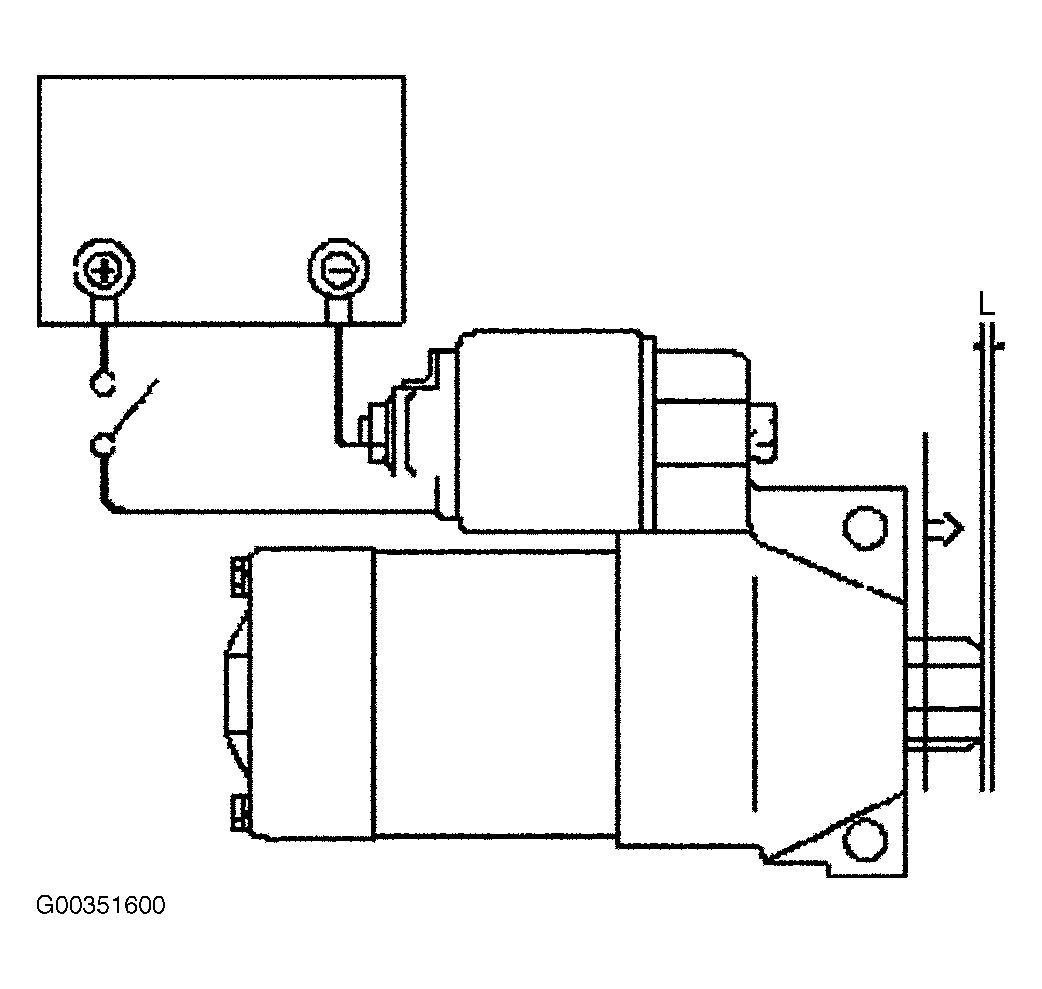

Connect the (+) cable of battery to the (S) and the (-) cable to the terminal (M). Turn the switch on, and measure pinion travel dimension in trust direction from the jump-out position. In measuring the dimension, pull the pinion out a little in the arrow direction. See Fig 1 . If the measure values is out of standard, insert dust cover, or disassemble and adjust. See STARTER SPECIFICATIONS .
