Description And Operation: Notes
DESCRIPTION

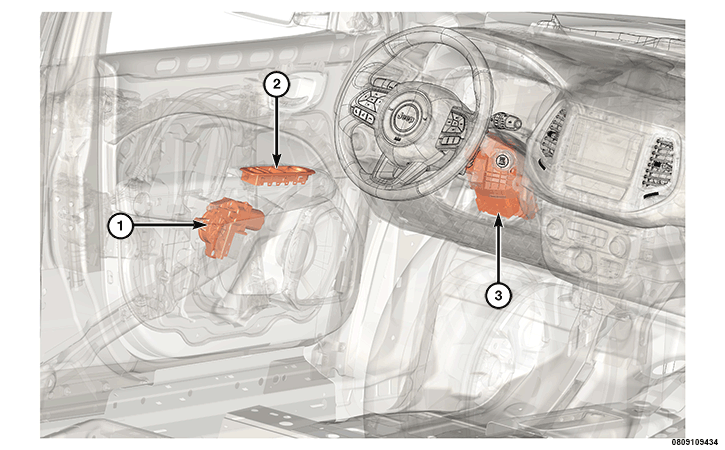

The following are some of the components that make up the power window system:
| 1. | Refer to POWER WINDOW MOTOR . |
| 2. | Refer to POWER WINDOW SWITCH . |
| 3. | Refer to BODY CONTROL MODULE (BCM) . |
OPERATION
The power window system allows each of the door windows to be raised and lowered electrically by actuating a switch on each door panel. A master switch on the driver door allows the driver to raise or lower each door window. The power window system operates only when the ignition switch is in the RUN or Accessory position.
Front door window lift motors use permanent type magnets. The B(+) and ground applied at the motor terminal pins will cause the motor to rotate in one direction. Reversing current through the motor terminals will cause the motor to rotate in the opposite direction.
