Fuel Pump Module - Removal

AWD






WARNING: Risk of injury to eyes and skin from contact with fuel, Wear protective clothing and eye protection. Risk of poisoning from inhaling and swallowing fuel. Pour fuel only into appropriately marked OSHA approved containers. Failure to comply may result in serious or fatal injury.

1. Perform Fuel System Pressure Release procedure. Service and Repair
2. Remove the air cleaner lid, disconnect the inlet air temperature sensor and makeup air hose.
3. Remove the negative battery cable.





4. Remove the rear seat cushion.





5. Rear seat cushion loose.





6. Remove plastic cover.





7. Clean top of tank to remove loose dirt and debris.
8. Use special tool Spanner Wrench #9340 to remove left side module lock ring.

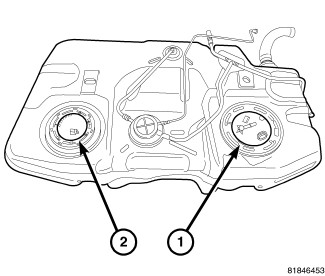

9. Note the fuel pump location on the top of the fuel tank.

NOTE: The pump has to be properly located to the tank for the fuel gauge to work properly.

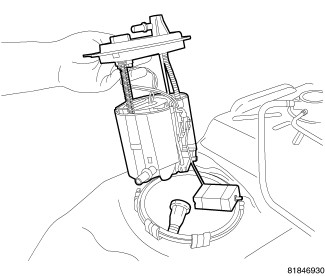

10. Pull module up out of fuel tank, make sure that you do not spill fuel inside of vehicle.





11. Drain fuel from fuel pump module. Do not spill fuel in interior of vehicle.





12. Disconnect internal line from fuel pump module.
13. Tip module on its side to drain remaining fuel from reservoir and remove module from vehicle.





14. Remove module from vehicle.





15. Remove seal from tank. Discard seal.
