2008 Jeep Compass Limited, AWD, Standard
Power Distribution Center

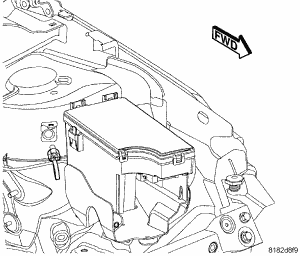

2008 Jeep Compass Limited, AWD, StandardSECTION Power Distribution Center
- Open hood.
- Disconnect and isolate the battery negative cable.
- Disconnect each of the Totally Integrated Power Module (TIPM) wire harness connectors.
- Remove the TIPM positive cable retaining nut and remove the cable from the stud.
- Depress the three mounting clips to disengage and remove the TIPM housing from its mounting bracket.
- Remove the TIPM from the vehicle.
