2008 Jeep Compass 4WD L4-2.4L
Brake Fluid: Service and Repair
2008 Jeep Compass 4WD L4-2.4LSECTION Service and Repair
BRAKE FLUID LEVEL CHECKING
NOTE: Brake fluid level should be checked a minimum of twice a year.

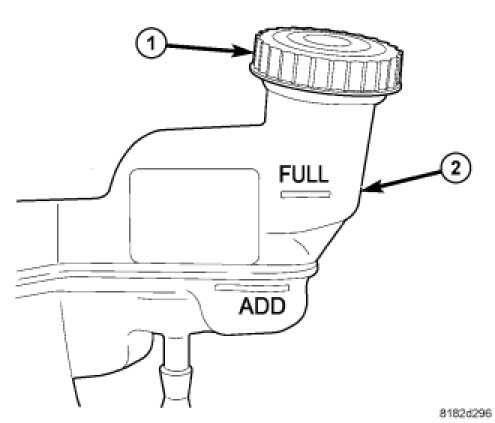

Master cylinder reservoirs (2) are marked, FULL and ADD, indicating the allowable brake fluid level range in the master cylinder fluid reservoir.
CAUTION: Use only Mopar(R) Brake Fluid DOT 3 Motor Vehicle or equivalent from a tightly sealed container. Do not use petroleum-based fluid because seal damage in the brake system will result.
NOTE: Although there is a range, the preferred level is FULL.
1. Remove the cap (1).
2. Adjust the brake fluid level to the FULL mark listed on the side of the master cylinder fluid reservoir (2) as necessary. Do not overfill the system.
3. Install the cap (1).
