Caster Adjustment

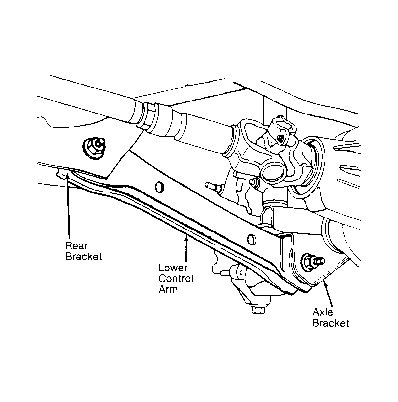

Check caster angle. See ALIGNMENT SPECIFICATIONS . If caster is not to specifications, adjustment can be made by adding or removing shims at rear of lower control arms on Cherokee, Comanche and Wagoneer models and between front axle pads and spring brackets on Grand Wagoneer and Wrangler models. See Fig 1 and Fig 2.
