2000 Jaguar XJRFACTORY OEM SERVICE PROCEDURE
Speed Control Sensor - Removal and Installation: Installation
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 Jaguar S-Type, 2007 Jaguar S-Type, 2006 Jaguar S-Type, 2005 Jaguar S-Type, and 2004 Jaguar S-Type. However, it is still accessible from the selected car via links, so may be relevant.

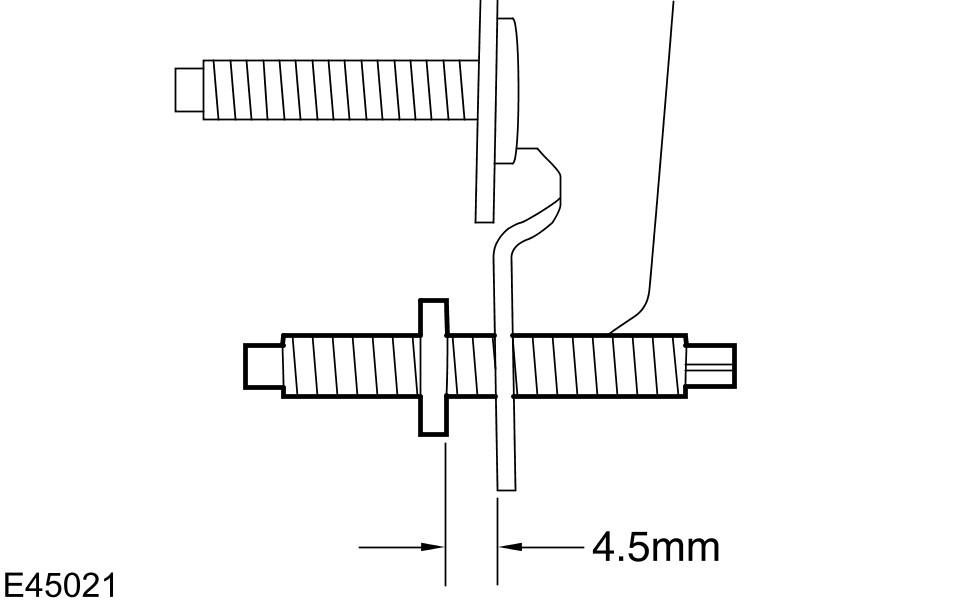

- Adjust the speed control sensor levelling bolt shoulder to mounting bracket clearance to 4.5 mm.

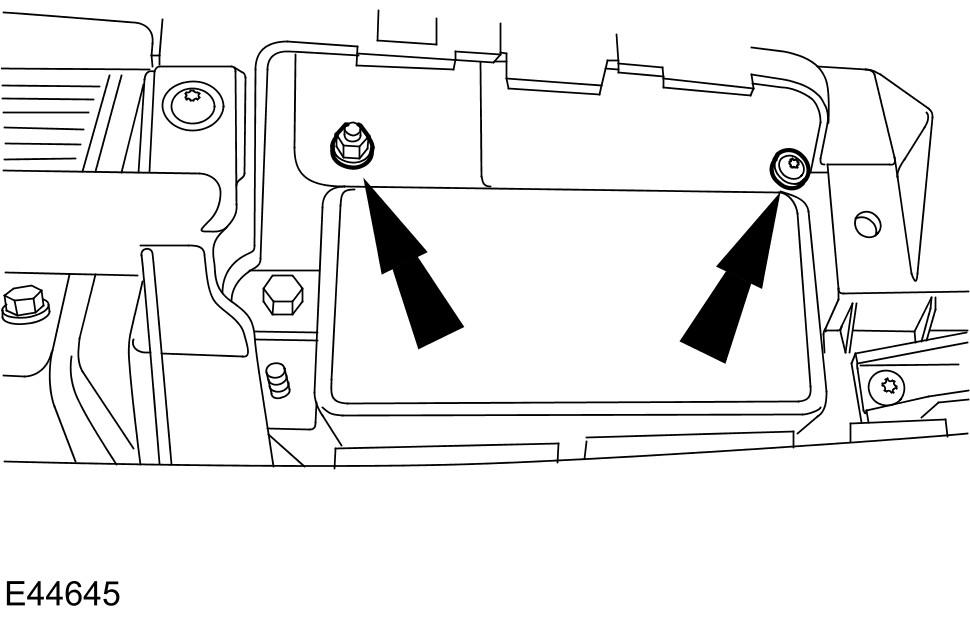

- Install the speed control sensor.
- Tighten to 5 Nm.

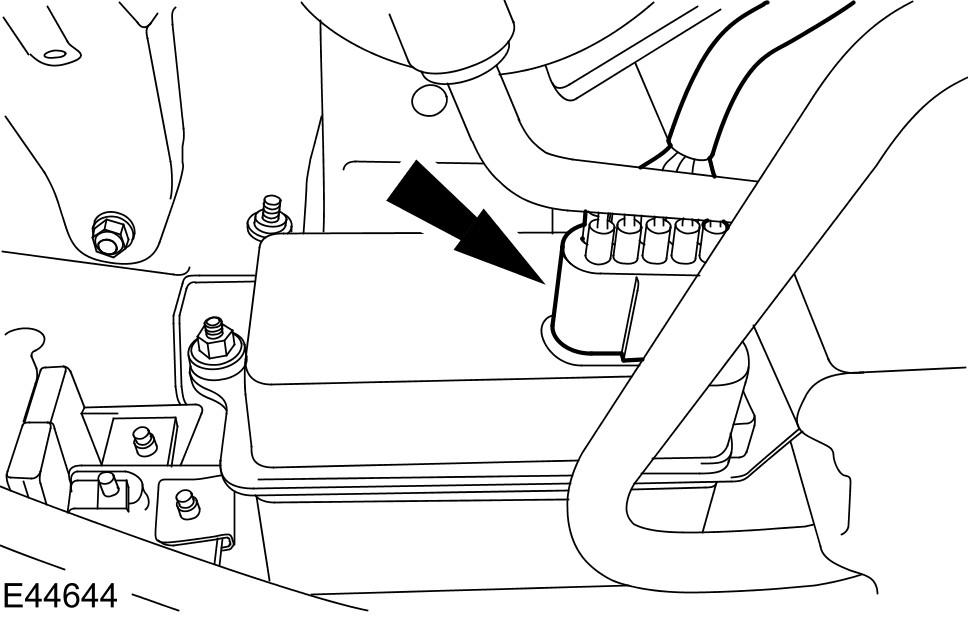

- Connect the speed control sensor electrical connector.
- Install the radiator splash shield. Refer to Radiator Splash Shield .
- Connect the battery ground cable. Refer to Battery Connect .
- Check and adjust the speed control sensor levelling. See Speed Control Module Alignment .
- Install the left-hand front bumper access cover.
