Special Tools

Tool Illustration	Tool Name	Tool Number
Courtesy of JAGUAR CARS, INC.	Inclinometer	501-F007

NOTE: Make sure the vehicle is positioned on level ground such as the headlamp alignment area.

Remove the left-hand front bumper access cover.

Courtesy of JAGUAR CARS, INC.

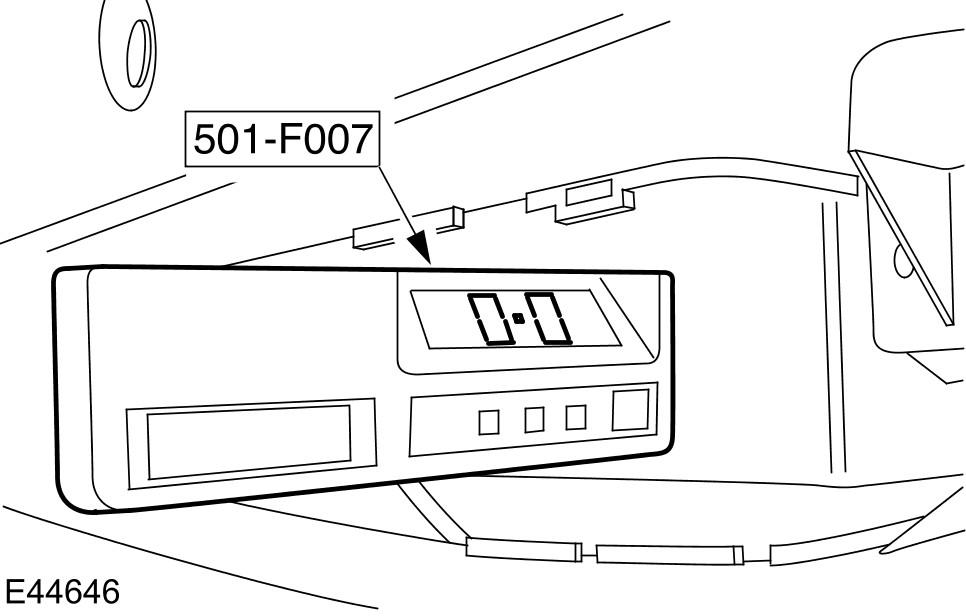

Using the special tool, check the speed control module vertical levelling.

Courtesy of JAGUAR CARS, INC.

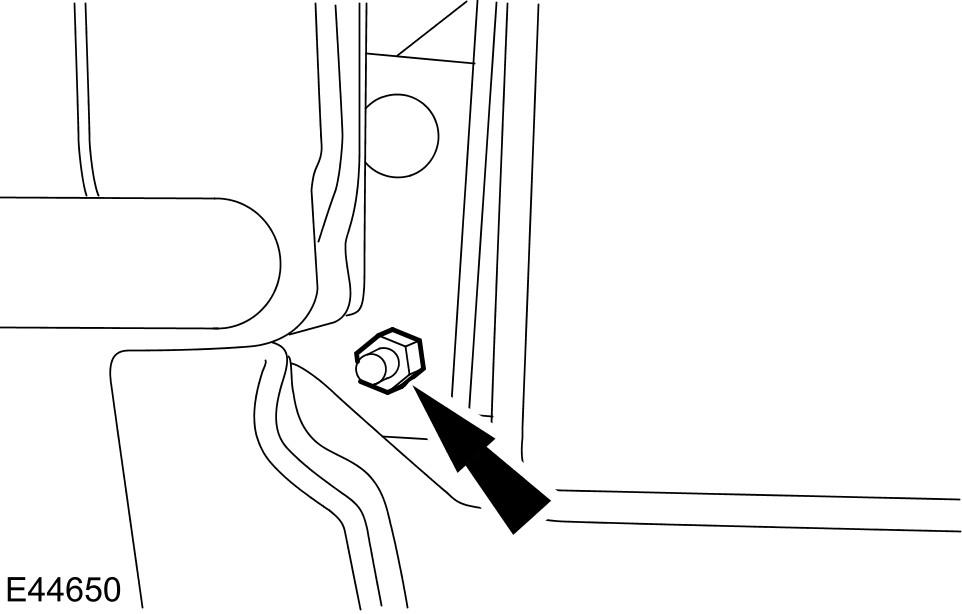

Level the speed control module.
- Rotate the speed control module levelling bolt to achieve a reading of zero degrees ± 0.75°.
Courtesy of JAGUAR CARS, INC.
Using the special tool, check the speed control module vertical levelling.
Install the left-hand front bumper access cover.
Carry out the speed control module calibration procedure. For further information, refer to the Jaguar approved diagnostic system.
