2006 Isuzu Ascender S, 4.2 S, 4WDFACTORY OEM SERVICE PROCEDURE

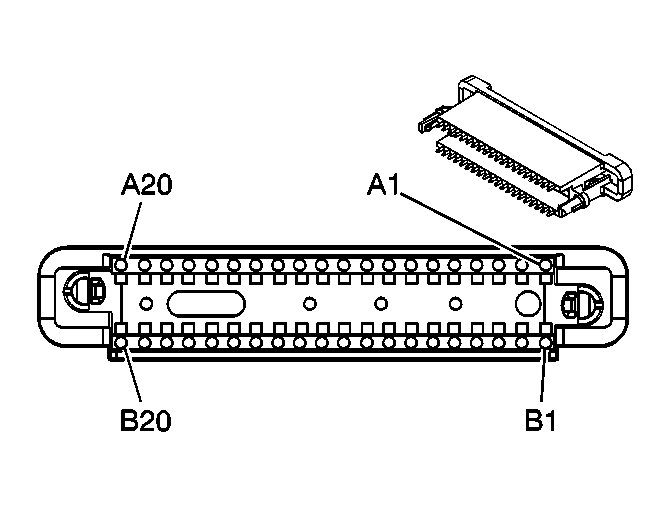

Body Control Module (BCM) C3
Body Control Module (BCM) C3
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A1 | - | 2140 | Battery Positive Voltage |
| A2 | - | 2140 | Battery Positive Voltage |
| A3 | - | 748 | Right Rear Door Ajar Switch Signal |
| A4 | - | 1134 | Park Brake Switch Signal |
| A5 | - | 195 | Door Lock Control |
| A6 | - | 2265 | Power Window Lockout Left Rear Control |
| A7 | - | - | Not Used |
| A8 | - | 747 | Left Rear Door Ajar Switch Signal |
| A9- A10 | - | - | Not Used |
| A11 | - | 1350 | Ground |
| A12 | - | 1353 | RAP Supply Voltage |
| A13 | - | 194 | Door Unlock Control |
| A14 | - | 1080 | Park Lamp Relay Control |
| A15 | - | 5168 | Power Sounder Enable Signal (BAE) |
| A16 | - | 5204 | Intrusion Sensor Data Signal (BAE) |
| A17 | - | - | Not Used |
| A18 | - | 992 | Ignition 0 Voltage |
| A19 | - | 39 | Ignition 1 Voltage |
| A20 | - | 541 | Ignition 3 Voltage |
| B1 | - | 230 | Instrument Panel Lamps Dimming Control |
| B2 | - | 230 | Instrument Panel Lamps Dimming Control |
| B3 | - | 690 | Courtesy Lamp Supply Voltage |
| B4 | - | 2240 | Battery Positive Voltage |
| B5 | - | 1186 | Power Window Switch Right Rear Up Signal |
| B6 | - | 2266 | Power Window Lockout Right Rear Control |
| B7 | - | 1188 | Power Window Switch Right Rear Down Signal |
| B8 | - | 1185 | Power Window Switch Left Rear Up Signal |
| B9 | - | 1187 | Power Window Switch Left Rear Down Signal |
| B10 | - | - | Not Used |
| B11 | - | 1350 | Ground |
| B12 | - | 24 | Backup Lamp Supply Voltage |
| B13 | - | 4440 | Battery Positive Voltage |
| B14 | - | 1382 | LED Dimming Signal |
| B15 | - | 543 | Accessory Voltage |
| B16 | - | - | Not Used |
| B17 | - | 4040 | Battery Positive Voltage |
| B18 | - | 1732 | Courtesy Lamps Supply Voltage |
| B19 | - | 1977 | Rear Fog Lamp Relay and Indicator Control |
| B20 | - | 5362 | Incline Sensor Signal (BAE) |
