2017 Infiniti Q60 Base, AWDFACTORY OEM SERVICE PROCEDURE
Direct Adaptive Steering: Fail-Safe

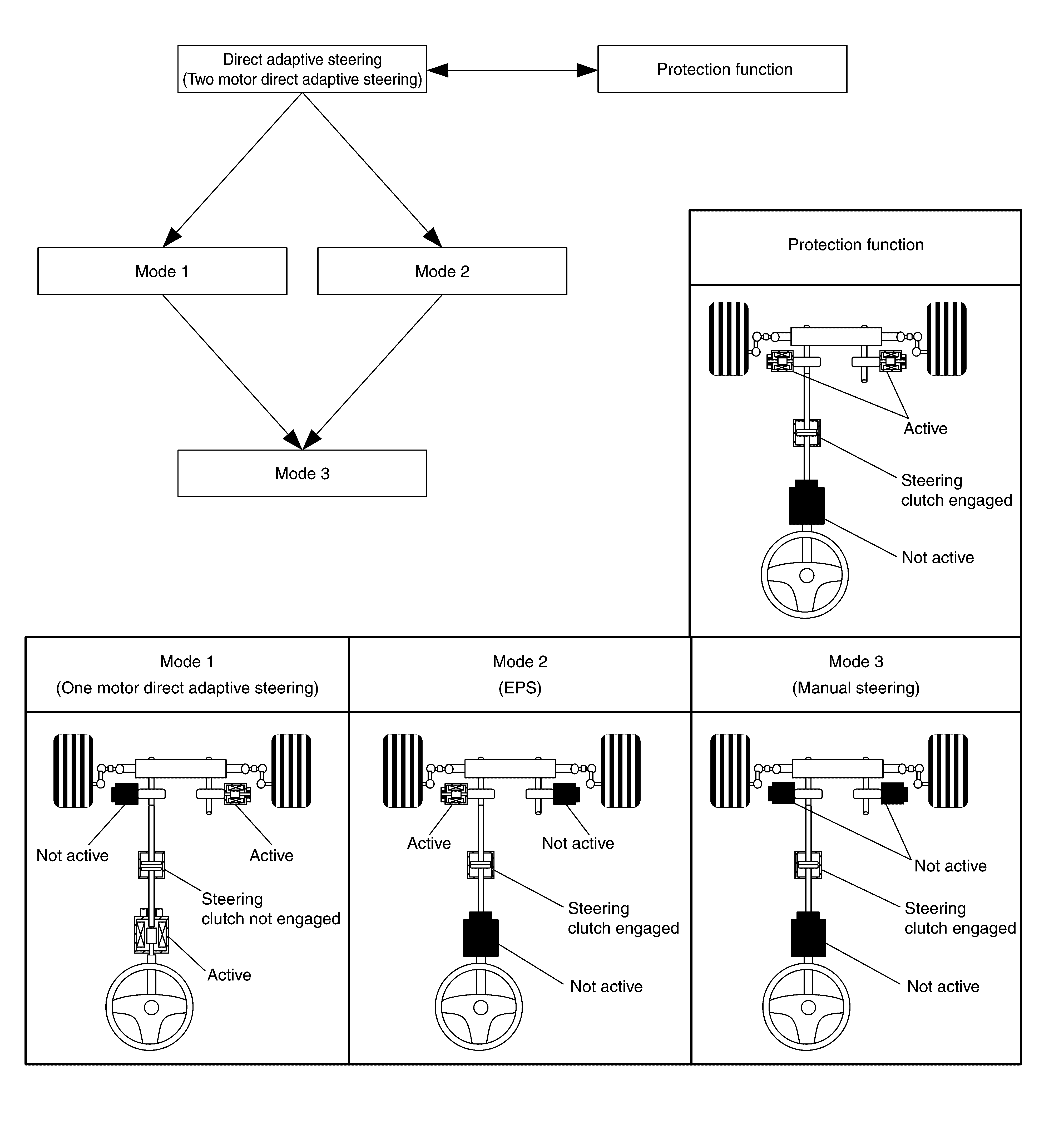

- If a malfunction occurs in the system, the fail-safe function stops the system (mode 3), activates the fail-safe mode (mode 1 or mode 2) or activates the protection mode. When the system enters mode 1, mode 2 or mode 3, the power steering warning lamp illuminates to inform the driver that the turning force is heavy in effect.
- Since three control modules monitor malfunctions mutually, DTC code varies from control module to control module.
- For details of protection function, refer to PROTECTION FUNCTION .
| DTC | Relation between control module detecting DTC and system status | ||
|---|---|---|---|
| When steering force control module detects DTC | When steering angle main control module detects DTC |
When steering angle sub control module detects DTC | |
| C13A0 - 00 | Variable | Variable | Variable |
| C13A1 - 00 | - | Mode 2 | Mode 2 |
| C13A2 - 00 | Mode 1 or Mode 3 | Mode 1 or Mode 3 | Mode 1 or Mode 3 |
| C13A3 - 00 | Mode 2 | Mode 2 | Mode 2 |
| C13A4 - 00 | - | Mode 2 | Mode 2 |
| C13A5 - 00 | - | - | Mode 2 |
| C13A6 - 00 | - | Mode 3 | - |
| C13A7 - 00 | - | Mode 3 | - |
| C13A8 - 00 | Mode 2 | Mode 1 or Mode 3 | Mode 2 |
| C13A9 - 00 | Mode 2 | Mode 1 or Mode 3 | Mode 2 |
| C13AA - 00 | Mode 2 | Mode 3 | Mode 2 |
| C13AB - 00 | Mode 2 | Mode 3 | Mode 2 |
| C13AC - 00 | - | Mode 3 | - |
| C13AD - 00 | Mode 2 | Mode 1 or Mode 3 | Mode 2 |
| C13AE - 00 | Mode 2 | Mode 3 | Mode 2 |
| C13AF - 00 | Mode 2 | Mode 3 | Mode 2 |
| C13B0 - 00 | Mode 2 | Mode 3 | Mode 2 |
| C13B1 - 00 | Mode 2 | Mode 3 | Mode 2 |
| C13B2 - 00 | Mode 2 | Mode 1 or Mode 3 | Mode 2 |
| C13B3 - 00 | Mode 2 | Mode 1 or Mode 3 | Mode 2 |
| C13B4 - 00 | Mode 2 | Mode 3 | Mode 2 |
| C13B5 - 00 | Mode 2 | Mode 1 or Mode 3 | Mode 2 |
| C13B6 - 00 | Mode 2 | Mode 1 or Mode 3 | Mode 2 |
| C13B7 - 00 | Mode 2 | Mode 1 or Mode 3 | Mode 2 |
| C13B8 - 00 | Mode 2 | Mode 1 or Mode 3 | Mode 2 |
| C13B9 - 00 | Mode 2 | Mode 1 or Mode 3 | Mode 2 |
| C13BA - 00 | Mode 2 | Mode 1 or Mode 3 | Mode 2 |
| C13BB - 00 | - | - | - |
| C13BC - 00 | - | - | - |
| C13BD - 00 | - | Mode 2 | - |
| C13BE - 00 | Mode 2 | Mode 2 | Mode 2 |
| C13BF - 00 | Variable | Variable | Variable |
| C13C0 - 00 | Mode 2 or Mode 3 | Mode 2 or Mode 3 | Mode 2 or Mode 3 |
| C13C1 - 00 | Mode 1, Mode 2 or Mode 3 | Mode 2 | Mode 1, Mode 2 or Mode 3 |
| C13C2 - 00 | Mode 1, Mode 2 or Mode 3 | Mode 2 | Mode 1, Mode 2 or Mode 3 |
| C13C3 - 00 | Mode 1, Mode 2 or Mode 3 | Mode 2 | Mode 1, Mode 2 or Mode 3 |
| C13C4 - 00 | Mode 2 | Mode 1 or Mode 3 | Mode 2 |
| C13C5 - 00 | Mode 2 | - | - |
| C13C6 - 00 | Mode 2 | - | - |
| C13C7 - 00 | Mode 2 | - | - |
| C13C8 - 00 | - | - | - |
| C13C9 - 00 | - | - | - |
| C13CA - 00 | - | - | - |
| C13CB - 00 | - | - | - |
| C13CC - 00 | - | - | - |
| C13CD - 00 | - | - | - |
| C13CE - 00 | - | - | - |
| C13CF - 00 | - | - | - |
| C13D0 - 00 | - | - | - |
| C13D1 - 00 | - | - | - |
| C13D2 - 00 | Mode 2 | Mode 1 or Mode 3 | Mode 2 |
| C13D3 - 00 | Mode 2 | Mode 1 or Mode 3 | Mode 2 |
| C13D4 - 00 | Mode 2 | Mode 1 or Mode 3 | Mode 2 |
| C13D5 - 00 | Mode 2 | Mode 1 or Mode 3 | Mode 2 |
| C13D6 - 00 | Mode 2 | Mode 1 or Mode 3 | Mode 2 |
| C13D7 - 00 | Mode 2 | Mode 1 or Mode 3 | Mode 2 |
| C13D8 - 00 | - | - | - |
| C13D9 - 00 | - | - | - |
| C13DA - 00 | - | - | - |
| C13DB - 00 | - | Mode 3* 1 Mode 2* 2 |
- |
| C13DC - 00 | - | Mode 3* 1 Mode 2* 2 |
- |
| C13DD - 00 | - | Mode 3* 1 Mode 2* 2 |
- |
| C13DE - 00 | Protection function mode | Protection function mode | Protection function mode |
| C13DF - 00 | - | Mode 3* 1 Mode 2* 2 |
- |
| C13E0 - 00 | Mode 2 | - | - |
| C13E1 - 00 | Mode 2 | - | - |
| C13E2 - 00 | - | - | - |
| C13E3 - 00 | Protection function mode | - | - |
| C13E4 - 00 | Protection function mode | - | - |
| C13E5 - 00 | Mode 2 | - | - |
| C13E6 - 00 | Protection function mode | Protection function mode | Protection function mode |
| C13E7 - 00 | Protection function mode | Protection function mode | Protection function mode |
| C13E8 - 00 | Protection function mode | Protection function mode | Protection function mode |
| C13E9 - 00 | - | Mode 2 | - |
| C13EA - 00 | Mode 2 | - | - |
| C13EB - 00 | - | Mode 2 | Mode 2 |
| C13EE - 00 | Mode 3 | Mode 3 | Mode 3 |
| C13EF - 00 | Mode 3 | Mode 3 | Mode 3 |
| C13F0 - 00 | Mode 2 | Mode 2 | Mode 2 |
| C13F1 - 00 | Mode 2 | - | - |
| C13F2 - 00 | Mode 2 or Mode 3 | Mode 2 or Mode 3 | Mode 2 or Mode 3 |
| U1000 - 01 | - | - | - |
| U1010 - 49 | - | - | - |
- * 1: When control module detects a malfunction at startup.
- * 2: When control module detects a malfunction except during startup.
