Consult-II Inspection Procedure
- Turn ignition switch "OFF".

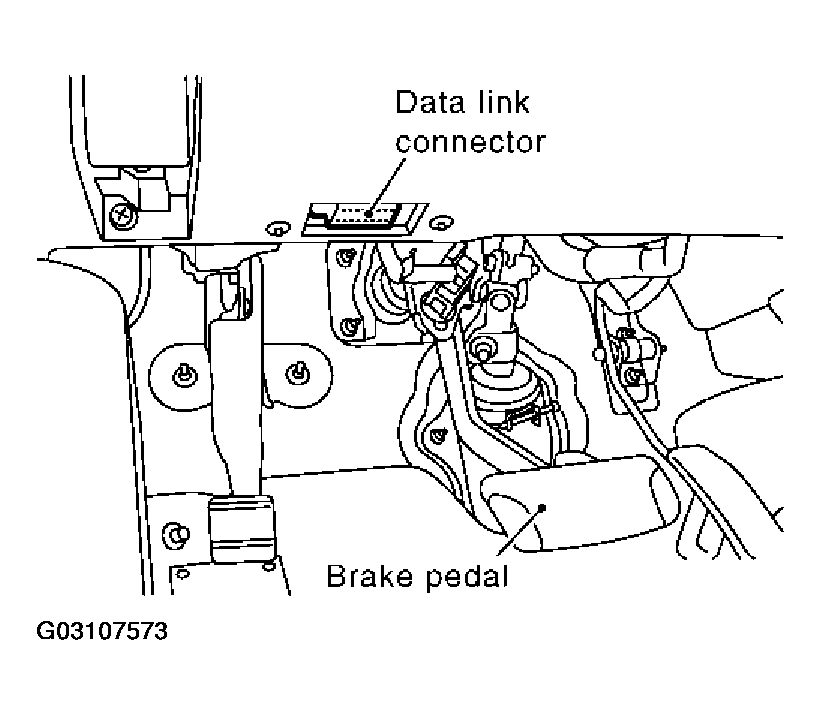

- Connect "CONSULT-II" and "CONSULT-II CONVERTER" to the data link connector.
- Turn ignition switch "ON".

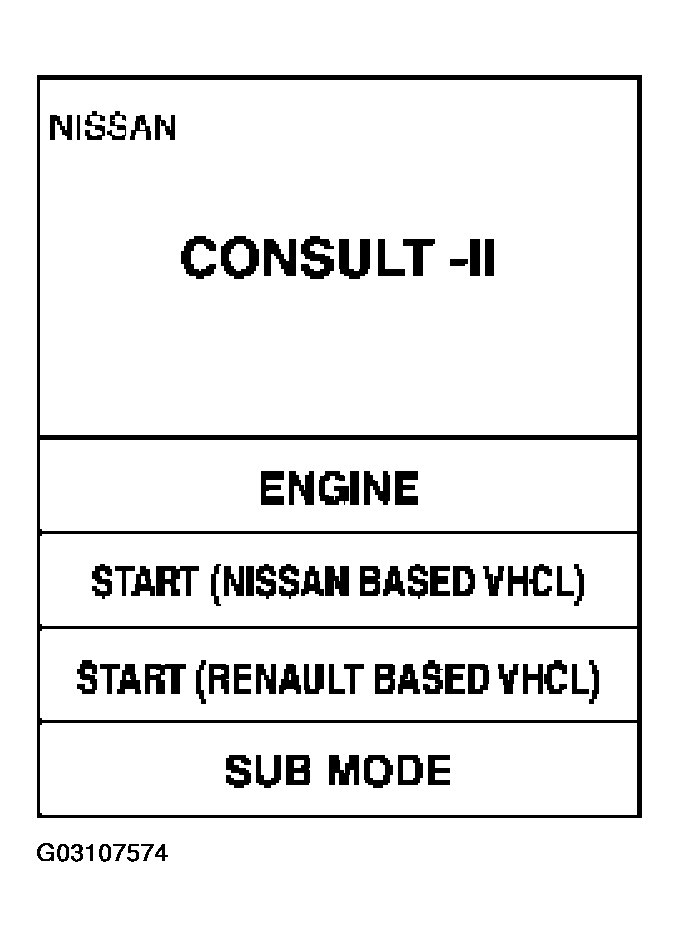

- Touch "START (NISSAN BASED VHCL)".

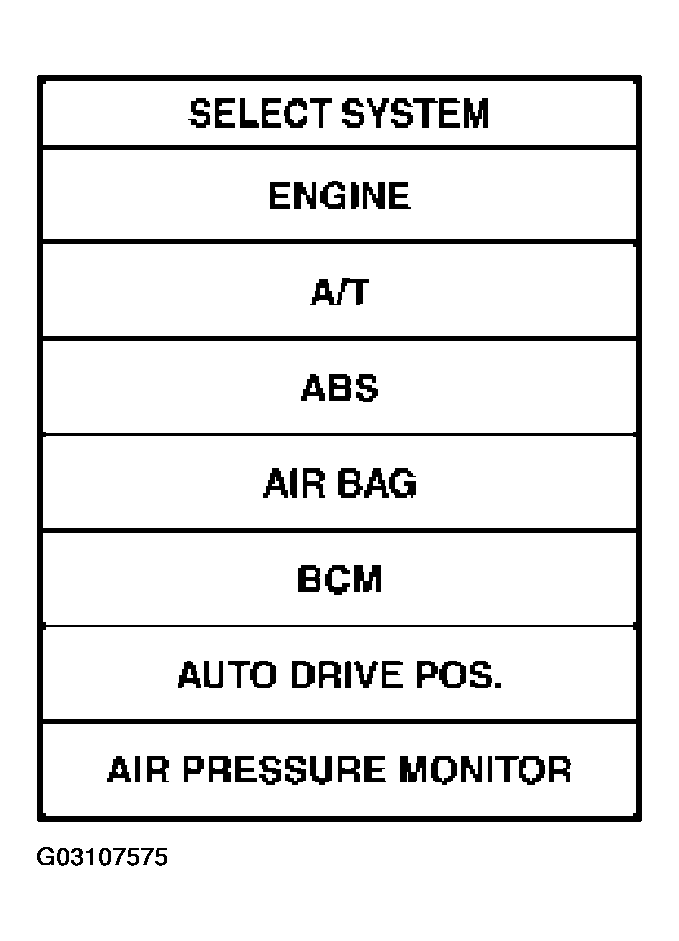

- Touch "AUTO DRIVE POS" and "BCM".
If "AUTO DRIVE POS." is not indicated, refer to CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT .

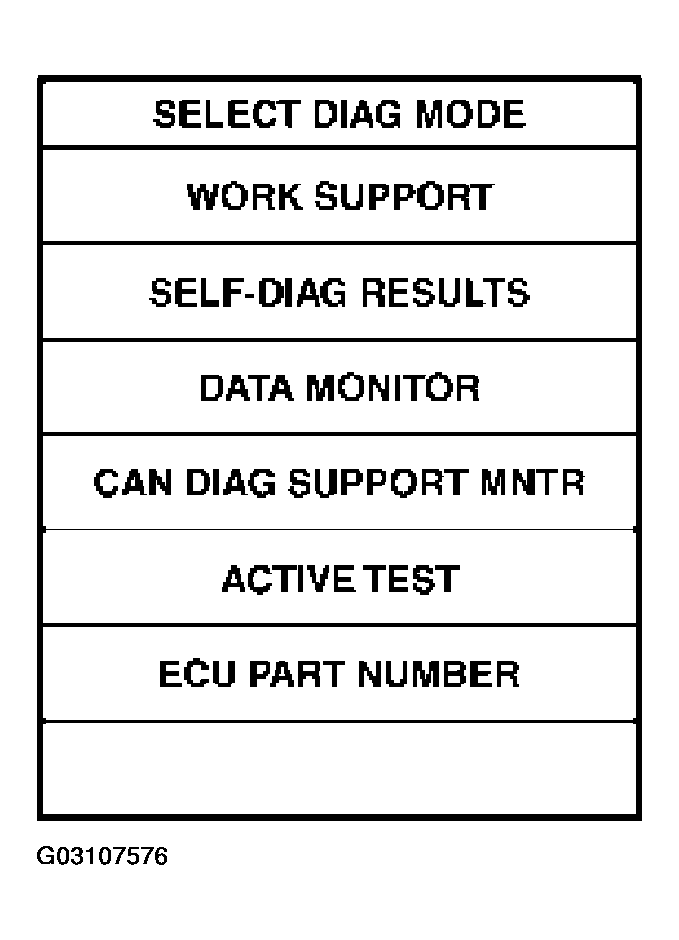

- Select diagnosis mode.
"DATA MONITOR", "ACTIVE TEST", "SELF-DIAG RESULTS", "ECU PART NUMBER" and "WORK SUPPORT" are available.
