2014 Hyundai Veloster Turbo, Automatic Trans
Repair Procedures: Removal
2014 Hyundai Veloster Turbo, Automatic TransSECTION Removal
- Set shift lever to "N" position.
- Remove the air duct.
(Refer to "AIR CLEANER ")
- Remove the battery and the battery tray.
(Refer to "BATTERY ")

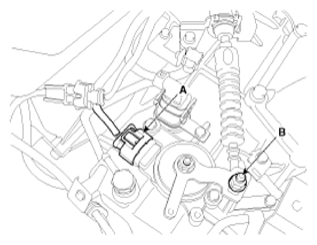

- Disconnect the inhibitor switch connector (A).
- Remove the shift cable mounting nut (B).
Tightening torque:
0.8 ~ 1.2 kgf.m
- Remove the manual control lever (B) and the washer after removing a nut (A).
Tightening torque:
1.8 ~ 2.5 kgf.m
