2014 Hyundai Veloster Turbo, Automatic Trans
Repair Procedures: Removal
2014 Hyundai Veloster Turbo, Automatic TransSECTION Removal
- Turn the ignition switch OFF and disconnect the battery negative (-) cable.

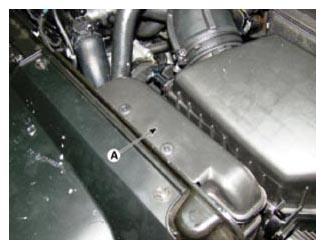

- Remove the air duck (A).

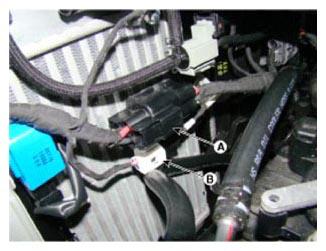

- Disconnect the cooling pan control connector (A) and cooling pan & RCV extension connector (B) from the bracket.

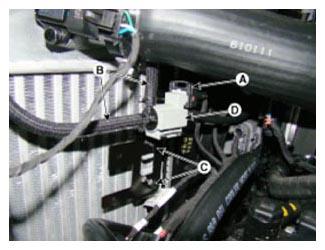

- Disconnect the RCV control solenoid valve connector (A) and vapor hose (B).
- Remove the installation bolts (C) and then RCV control solenoid valve (D).
