2014 Hyundai Veloster Turbo, Automatic Trans

Repair Procedures: Removal

2014 Hyundai Veloster Turbo, Automatic TransSECTION Removal
  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
  2. Remove the air cleaner assembly and air intake hose.

    (Refer to "AIR CLEANER ")

  3. Relax the engine wiring.
    1. Disconnect the ignition coil (A).
    2. Disconnect the OCV (B).
    3. Disconnect the CMPS (C).
    4. Disconnect the FPCV (D).
    5. Disconnect the PCSV (E).
    6. Remove the engine wiring installation bolts (F) and then remove the engine wiring harness (G).

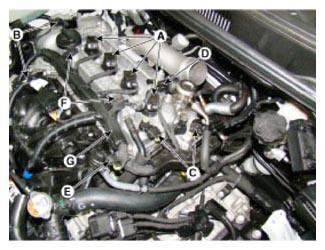

      Fig 1: Ignition Coil OCV, CMPS, FPCV, PCSV Bolts & Wiring Harness
      G09151072Courtesy of HYUNDAI MOTOR AMERICA
  4. Remove the vacuum pipe installation bolts (A) and relax the bracket.
  5. Disconnect the engine coolant temperature sensor connect (B).
  6. Remove the engine coolant temperature sensor (C).

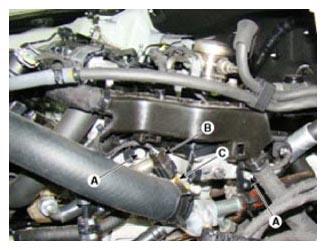

    Fig 2: Engine Coolant Temperature Sensor, Connector & Bolts
    G09151073Courtesy of HYUNDAI MOTOR AMERICA
