2014 Hyundai Azera Base

Repair Procedures: Removal

2014 Hyundai Azera BaseSECTION Removal
  1. Remove the center console assembly.

    (Refer to "FLOOR CONSOLE ASSEMBLY ")

  2. Remove the duct (A).

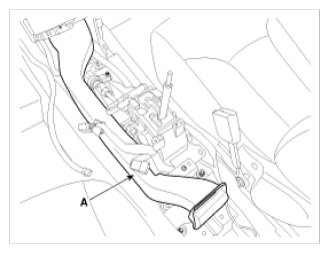

    Fig 1: Identifying Center Console Assembly Duct
    G08809991Courtesy of HYUNDAI MOTOR AMERICA
  3. Remove the control cable (B).

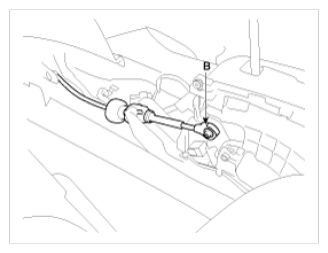

    Fig 2: Identifying Control Cable
    G08809992Courtesy of HYUNDAI MOTOR AMERICA
  4. Remove the control cable assembly in the vehicle after removing the nuts (B) and the retainer (A).

    Tightening torque:

    9.8 ~ 14.7 N.m (1.0 ~ 1.5 kgf.m, 7.2 ~ 10.9 lb-ft)

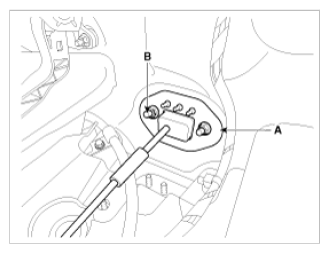

    Fig 3: Identifying Control Cable Assembly Retainer And Nuts
    G08809993Courtesy of HYUNDAI MOTOR AMERICA
  5. Remove the nut (C).
  6. Remove the cable (B) from the bracket (A) at transaxle assembly side.

    (Refer to "AUTOMATIC TRANSAXLE ")

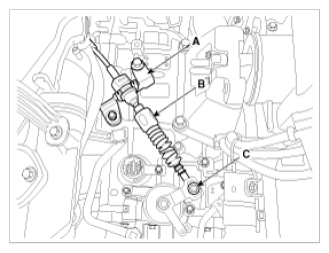

    Fig 4: Identifying Transaxle Assembly Cable, Bracket And Nut
    G08809994Courtesy of HYUNDAI MOTOR AMERICA
  7. Remove the control cable inside of cab.
