2014 Hyundai Azera Base
Repair Procedures: Removal
2014 Hyundai Azera BaseSECTION Removal
- Turn the ignition switch off and disconnect the battery negative (-) cable.

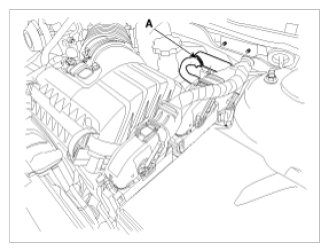

- Disconnect the injector drive box (IDB) connector (A).
- Remove the air cleaner assembly.
(Refer to "AIR CLEANER ")

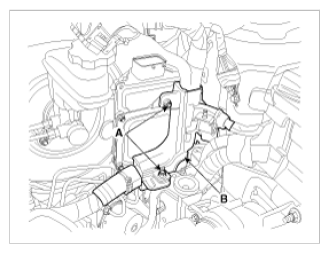

- Remove the main wiring harness (B) after removing the nut (A).

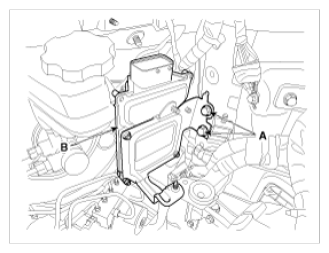

- Remove the IDB bracket assembly (B) after removing the bolts (A).

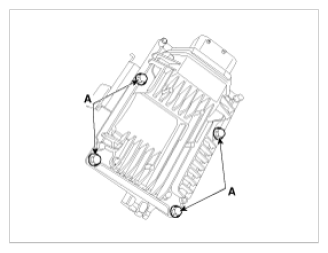

- After removing the installation bolts (A), remove the IDB from the bracket.
