Serial Communication Interface (SCI)

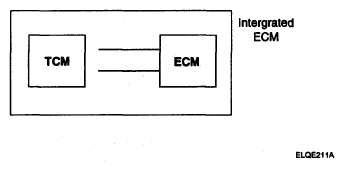

This uses a integrated computer which contains both the ECM and the TCM within the same unit. We will refer to this unit as integrated ECM.
Communication Speed: 15.625Kbit/sec
Frequency: 20ms
If a fault occurs in either ECM or TCM, the entire integrated ECM must be replaced.
