Feedback Shift Control

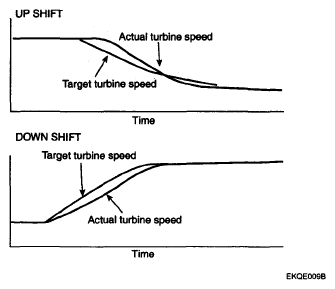

The turbine speed is monitored and controlled during shifting to satisfy target turbine speed which is accomplished by feedback control of solenoid valve duty value. Therefore the compensation of torque for the outworn engine or A/T is possible. This has resulted in the ability to control the change in torque during shifting and produce smooth shift and better shift feeling. Feedback shift control is also applicable in N→D and N→R.
