Code Saving Method (Programming Transmitter)
2002 Hyundai XG350 BaseSECTION Code Saving Method (Programming Transmitter)
NOTE:
DO NOT disconnect the negative (-) battery terminal.

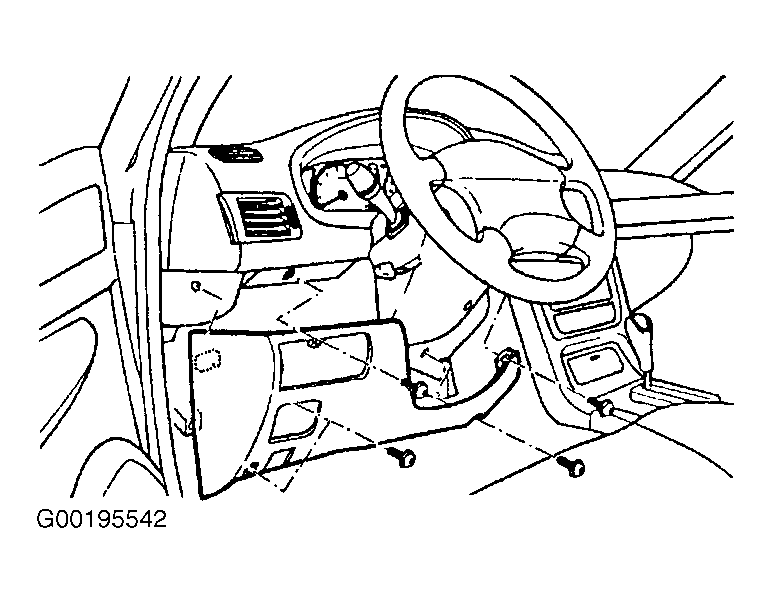

- Remove the lower crash pad panel. See Fig 1
- To store new codes:

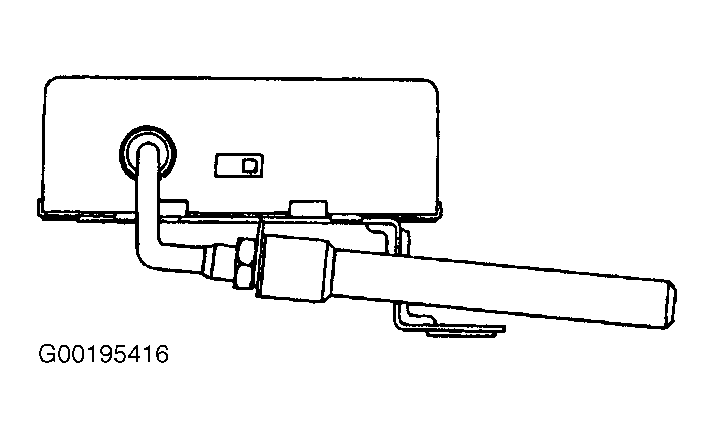

- Activate the keyless entry/receiver unit and change code saving switch of the receiver unit from OFF to SET. See Fig 2
- The secret codes from the transmitter will be stored into the receiver unit when the door lock button or unlock button is pressed on the transmitter.
- Save the 2nd transmitter codes in the same matter.

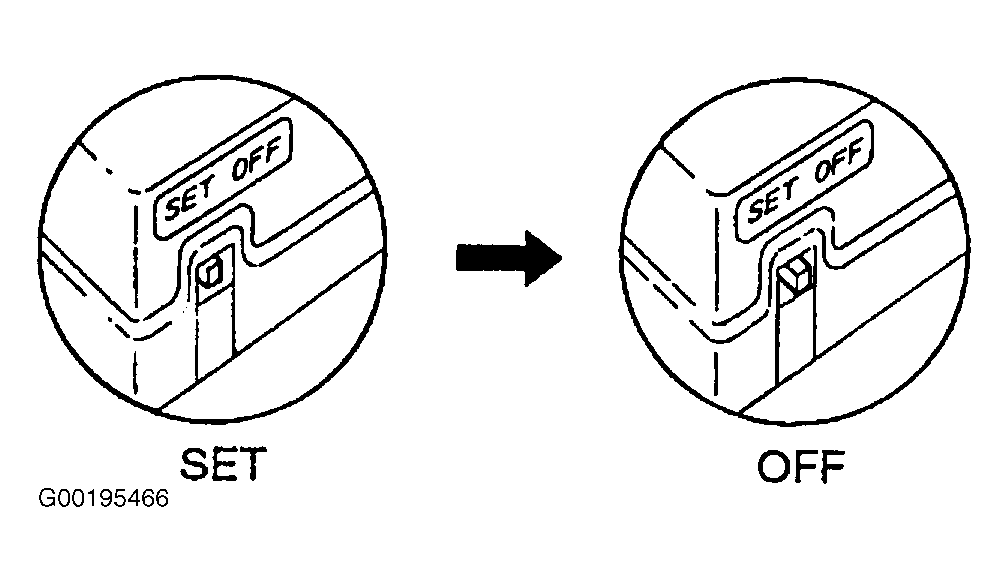

- Return the code saving switch of the receiver unit from SET to OFF. See Fig 3 .
- Install the lower crash pad panel.
