2014 Honda Ridgeline RTLFACTORY OEM SERVICE PROCEDURE
CKP Sensor Replacement
- Raise the vehicle on a lift (see LIFT AND SUPPORT POINTS
).NOTE: Make sure the vehicle is level, because engine oil will drip out when you remove the sensor.

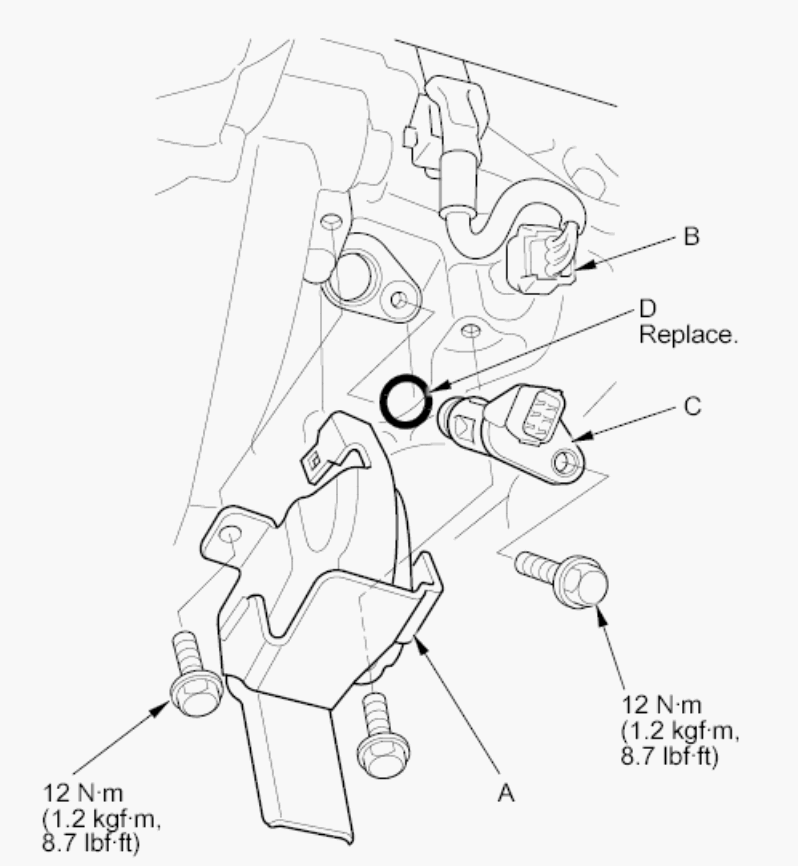

- Remove the CKP sensor cover (A).
- Disconnect the CKP sensor connector (B).
- Remove the CKP sensor (C).
- Install the parts in the reverse order of removal with a new O-ring (D).
- Do the CKP pattern clear/CKP pattern learn procedure (see CKP PATTERN CLEAR/CKP PATTERN LEARN ).
