2014 Honda Pilot EX, FWDFACTORY OEM SERVICE PROCEDURE
EVAP Canister Replacement
- Raise the vehicle on a lift.

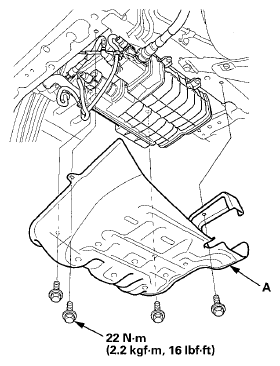

- Remove the EVAP canister cover (A).

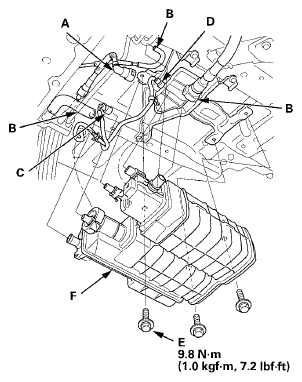

- Disconnect the quick-connect fittings (A) (see FUEL LINE/QUICK-CONNECT FITTING PRECAUTIONS ), the hoses (B), the EVAP canister vent shut valve connector (C), and the FTP sensor connector (D), then remove the harness clamps.
- Remove the bolts (E).
- Remove the EVAP canister assembly (F).

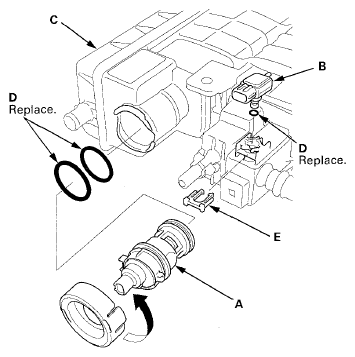

- Remove the EVAP canister vent shut valve (A) and the FTP sensor (B) from the canister (C).
- Reassemble the EVAP canister vent shut valve and the FTP sensor onto the EVAP canister with new O-rings (D) and a new retainer (E).NOTE: Do not coat the O-rings with oil.
- Install the parts in the reverse order of removal.
