2014 Honda Pilot EX, FWDFACTORY OEM SERVICE PROCEDURE
Yaw Rate-Acceleration Sensor Replacement
NOTE:
- Do not damage or drop the sensor as it is sensitive.
- Do not use power tools.
- Turn the ignition switch to LOCK (0).
- Remove the driver's center console trim (see step 2 under CENTER CONSOLE REMOVAL/INSTALLATION ).

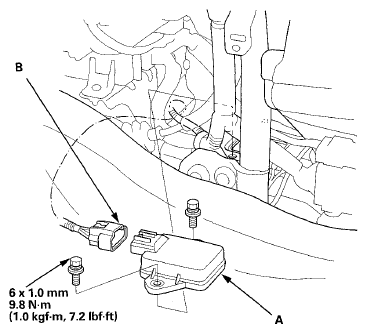

- Remove the yaw rate-acceleration sensor (A) mounting bolts.
- Disconnect the yaw rate-acceleration sensor 5P connector (B).
- Install the yaw rate-acceleration sensor in the reverse order of removal.
- Do the VSA sensor neutral position memorization (see VSA SENSOR NEUTRAL POSITION MEMORIZATION ).
