2014 Honda Odyssey EXFACTORY OEM SERVICE PROCEDURE
Engine Mount Control Unit Replacement
- Do the battery terminal disconnection procedure (see BATTERY TERMINAL DISCONNECTION AND RECONNECTION ).
- Remove the glove box (see GLOVE BOX REMOVAL/INSTALLATION ).
- With navigation: Remove the stereo amplifier (see AUDIO DISPLAY UNIT REMOVAL/INSTALLATION ).

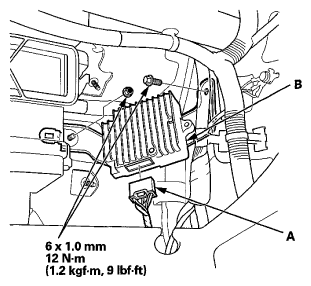

- Disconnect the engine mount control unit 16P connector (A).
- Remove the engine mount control unit (B).
- Install the parts in the reverse order of removal.
- Do the battery terminal reconnection procedure (see BATTERY TERMINAL DISCONNECTION AND RECONNECTION ).
