Voice Control Switch Test
SRS components are located in this area. Review the SRS component location (see COMPONENT LOCATION INDEX ), and the precautions and procedures (see PRECAUTIONS AND PROCEDURES ) in the SRS section before doing repairs or service.
- Remove the HFL-navigation voice control switch (see VOICE CONTROL SWITCH TESTΒ ).

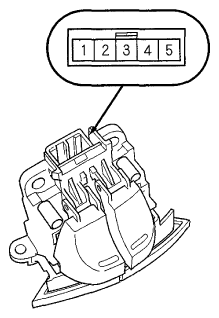

- Measure the resistance between terminals No. 2 and No. 4 in each switch position according to the table.RESISTANCE CHART
Position Resistance No button pressed About 10 kΞ© Navigation TALK button About 2.2 kΞ© Navigation BACK button About 650 Ξ© - If the resistance is not as specified, replace the HFL-navigation voice control switch (see VOICE CONTROL SWITCH TESTΒ ).
