2012 Honda Insight BaseFACTORY OEM SERVICE PROCEDURE
Brake Pedal Replacement
WARNING: This page is about a different car, the 2011 Honda Insight and 2010 Honda Insight. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the driver's dashboard undercover (see DRIVER'S DASHBOARD UNDERCOVER REMOVAL/INSTALLATION ).

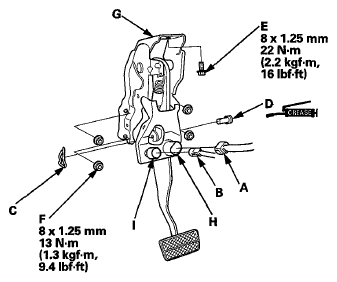

- Disconnect the brake pedal position switch connector (A).
- Disconnect the idle stop switch connector (B).
- Remove the lock pin (C) and clevis pin (D).
- Remove the brake pedal bracket mounting bolt (E) and the nuts (F).
- Remove the brake pedal with bracket (G).
- Remove the brake pedal position switch (H) by turning it counter clockwise and the idle stop switch (I) from brake pedal.
- Install in the reverse order of removal.
- Adjust the brake pedal and brake pedal position switch/idle stop switch adjustment (see BRAKE PEDAL AND BRAKE PEDAL POSITION SWITCH/IDLE STOP SWITCH ADJUSTMENT ).
