Inspect the brake hoses for damage, deterioration, leaks, interference, and twisting.
Check the brake lines for damage, rusting, and leaks. Also check for bent brake lines.
Check for leaks at hose and line joints and connections, and retighten if necessary.

Check the master cylinder and the ABS or VSA modulator-control unit for damage and leaks.

COMPONENT SPECIFICATION

Connection Point	Component	Connected to	Specified Torque	Note
A	Front brake caliper	Brake hose	34 N.m (3.5 kgf.m, 25 lbf.ft)	Banjo bolt
A	Front brake caliper	Bleed screw	8.5 N.m (0.9 kgf.m, 7 lbf.ft)
B	Rear wheel cylinder	Brake line	15 N.m (1.5 kgf.m, 11 lbf.ft)	Flare nut
B	Rear wheel cylinder	Bleed screw	7 N.m (0.7 kgf.m, 5 lbf.ft)
C	Brake hose	Brake line	15 N.m (1.5 kgf.m, 11 lbf.ft)	Flare nut
D	Master cylinder	Brake line	22 N.m (2.2 kgf.m, 16 lbf.ft)	Flare nut
E	ABS or VSA modulator-control unit	Brake line (10 mm nut)	15 N.m (1.5 kgf.m, 11 lbf.ft)	Flare nut
E	ABS or VSA modulator-control unit	Brake line (12 mm nut)	22 N.m (2.2 kgf.m, 16 lbf.ft)	Flare nut

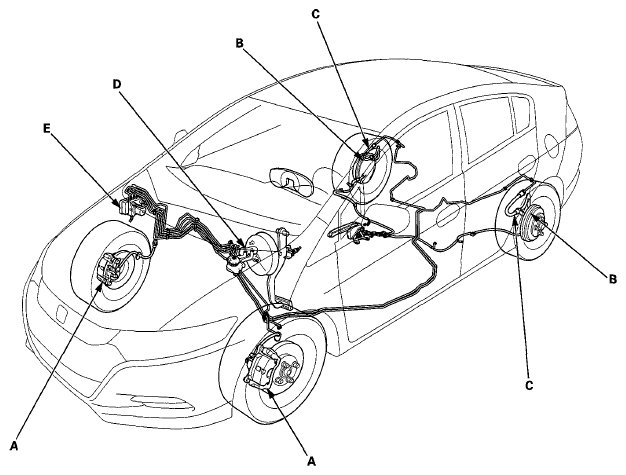

Fig 1: Identifying Brake Hose And Line Components

Courtesy of AMERICAN HONDA MOTOR CO., INC.
