2012 Honda Fit Base, Automatic TransFACTORY OEM SERVICE PROCEDURE

Voice Control Switch Test

WARNING: This page is about a different car, the 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.

SRS components are located in this area. Review the SRS COMPONENT LOCATION INDEX .

Also review PRECAUTIONS AND PROCEDURES in the SRS section before doing repairs or service.

Remove the voice control switch (see Voice Control Switch Replacement ).

Measure the resistance between terminals No. 2 and No. 4 in each switch position according to the table below.

RESISTANCE SPECIFICATION TABLE

Position	Resistance
No button pressed	About 10 kΩ
Navigation TALK	About 2.2 kΩ
Navigation BACK	About 650 Ω

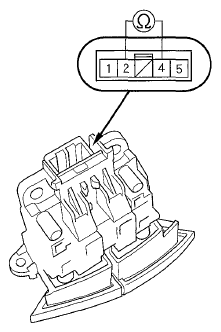

Fig 1: Measuring Resistance Between Terminals No. 2 & No. 4

Courtesy of AMERICAN HONDA MOTOR CO., INC.

If the resistance is not as specified, Replace the voice control switch (see Voice Control Switch Replacement )..
