2012 Honda Fit Base, Automatic TransFACTORY OEM SERVICE PROCEDURE

Voice Control Switch Replacement

WARNING: This page is about a different car, the 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.

SRS components are located in this area. Review the SRS COMPONENT LOCATION INDEX .

Also review PRECAUTIONS AND PROCEDURES in the SRS section before doing repairs or service.

  1. Remove the steering wheel (see STEERING WHEEL REMOVAL ).
  2. Remove the audio remote switch (see AUDIO REMOTE SWITCH REPLACEMENT ).
  3. Remove the switch cover (A) from the voice control switch (B).

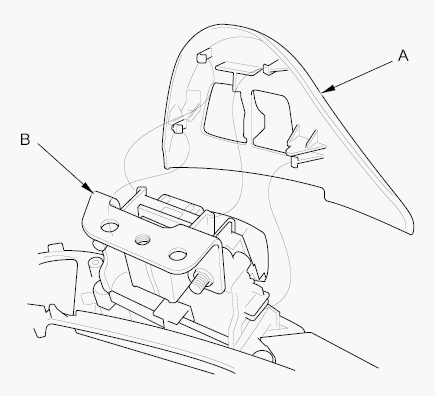

    Fig 1: Identifying Switch Cover And Voice Control Switch
    G00510678Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Remove the screws (A), and remove the set plate (B).

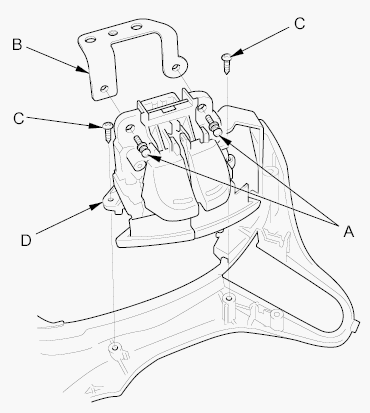

    Fig 2: Identifying Set Plate, Voice Control Switch And Fasteners
    G00510679Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. Remove the screws (C), and remove the voice control switch (D).
  6. Install the voice control switch in the reverse order of removal.
