Ignition Switch/Steering Lock: Test
SRS components are located in the area. Review the SRS COMPONENT LOCATION INDEX and PRECAUTIONS AND PROCEDURES before doing repairs or servicing.
- Do the battery terminal disconnection procedure (see BATTERY TERMINAL DISCONNECTION AND RECONNECTION ).
- Remove the steering column covers (see SIDE DEFOGGER VENT TRIM REMOVAL/INSTALLATION ).

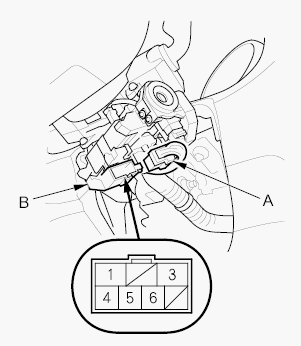

- Disconnect the 7P connector (A) from the ignition switch (B).

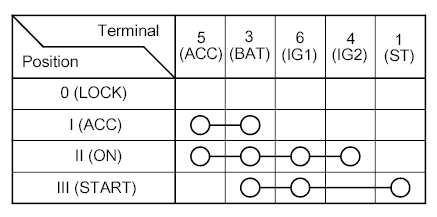

- Check for continuity between the terminals in each switch position according to the table below.
- If the continuity is not as specified, replace the ignition switch (see TEST ).
- Do the battery terminal reconnection procedure (see BATTERY TERMINAL DISCONNECTION AND RECONNECTION ).
