2002 Honda Insight StandardFACTORY OEM SERVICE PROCEDURE
Navigation Unit Removal/Installation
WARNING: This page is about a different car, the 2006 Honda Odyssey and 2005 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
If the navigation unit is replaced or disconnected, a map matching must be done (see AFTER SERVICING PROCEDURES-MAP MATCHING
).
- Remove the DVD disc from the navigation unit (see DVD-ROM REPLACEMENT ).
- Turn the ignition switch off.
- Raise the driver's seat all the way up, then move it all the way forward.
- Remove the driver's seat rear riser cover (see step 6 in FRONT SEAT REMOVAL/INSTALLATION ).

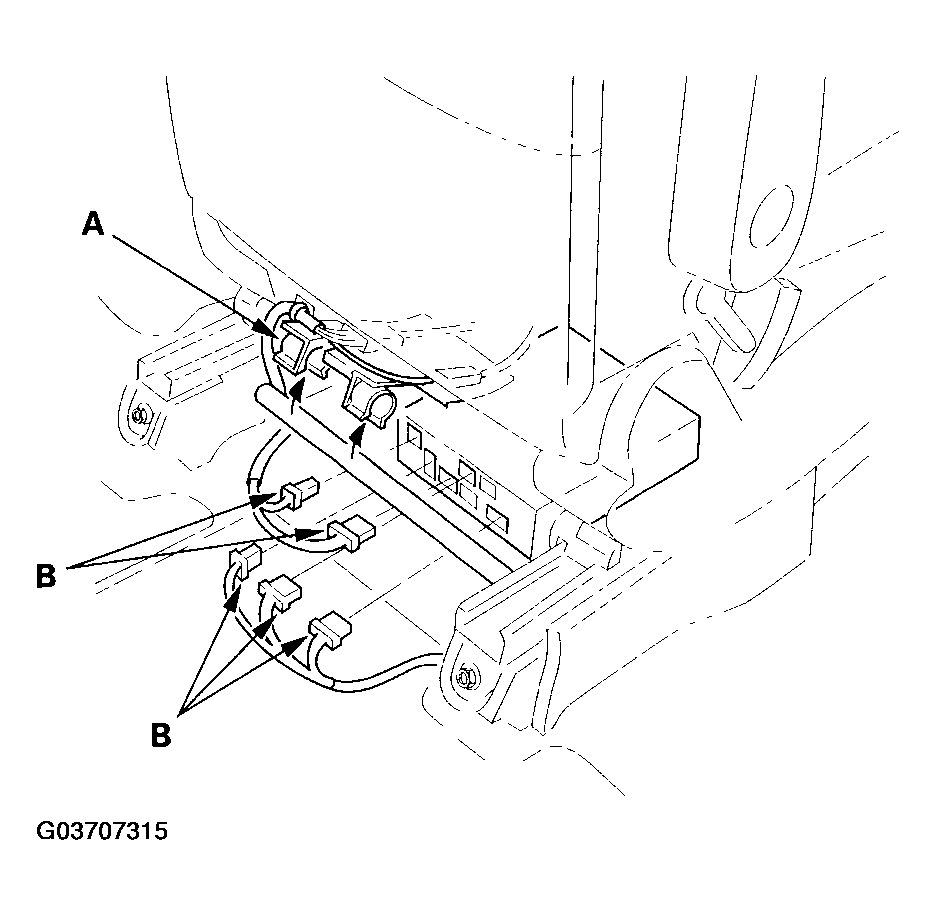

- Lift up the rear of the seat connectors mounting clip (A), and disconnect the navigation unit connectors (B).

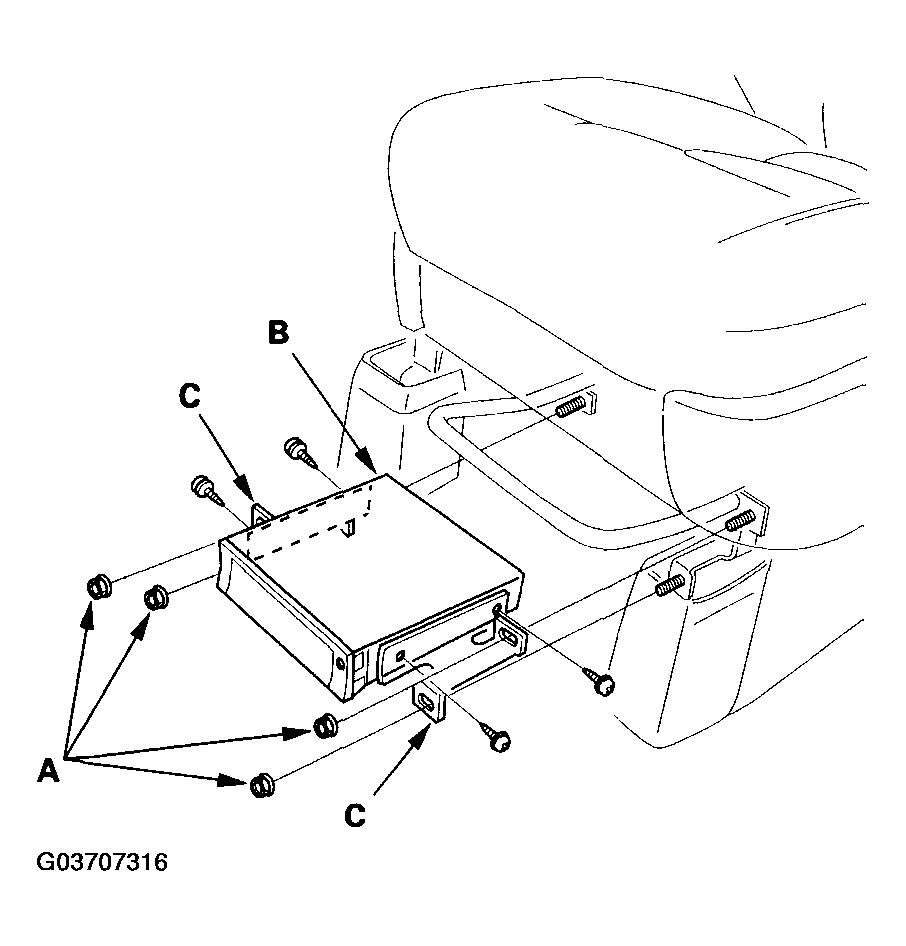

- Move the driver's seat all the way back, and remove the four mounting nuts (A), then remove the navigation unit (B) with brackets (C) from the driver's seat.
- Remove the bracket from the navigation unit.
- Install the reverse order of removal.
