2000 Honda Insight

PCV Valve Inspection

2000 Honda InsightSECTION PCV Valve Inspection
  1. Check the PCV valve (A), hoses (B), and connections for leaks or restrictions.

    2000-2004 models

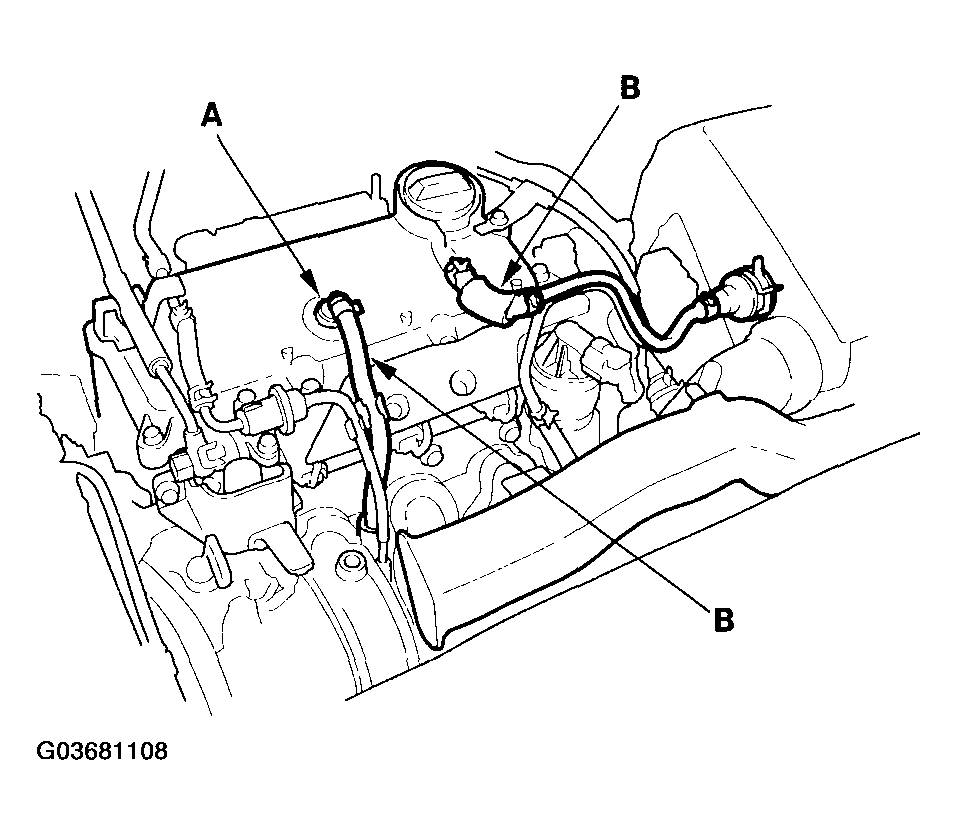

    Fig 1: Checking PCV Valve, Hoses And Connections (2000-2004 Models)
    G03681108Courtesy of AMERICAN HONDA MOTOR CO., INC.

    2005-2006 models

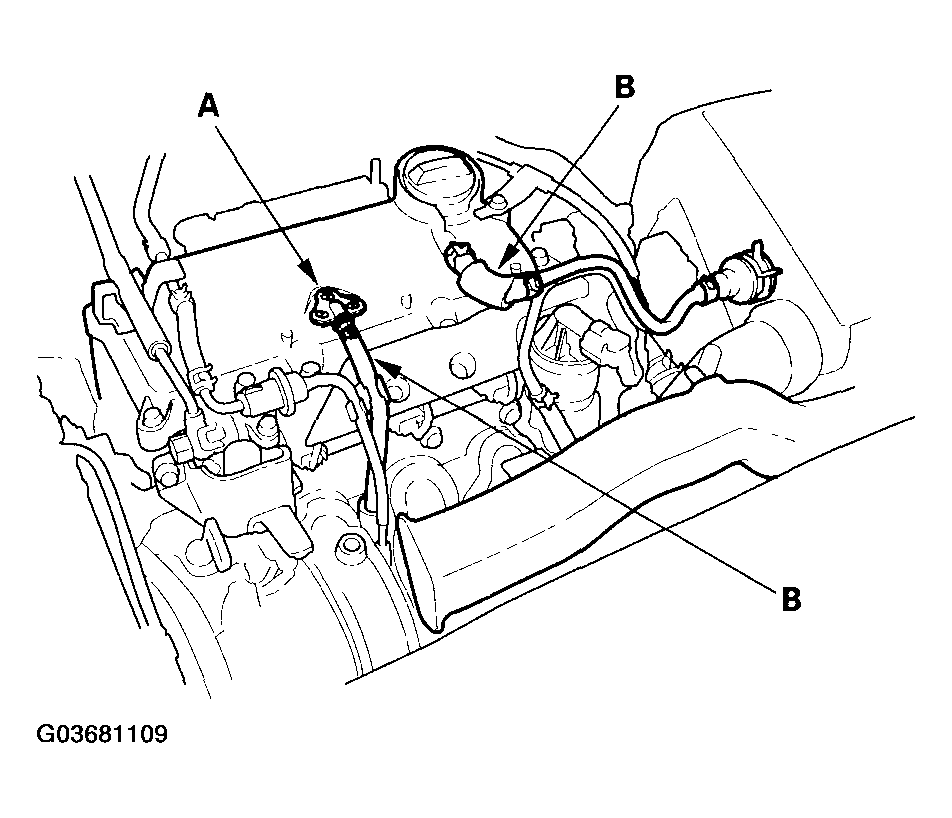

    Fig 2: Checking PCV Valve, Hoses And Connections (2005-2006 Models)
    G03681109Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. At idle, make sure there is a clicking sound from the PCV valve when the hose between the PCV valve and intake manifold is lightly pinched (A) with your fingers or pliers.

    If there is no clicking sound, check the PCV valve grommet for cracks or damage. If the grommet is OK, replace the PCV valve and recheck.

    2000-2004 models

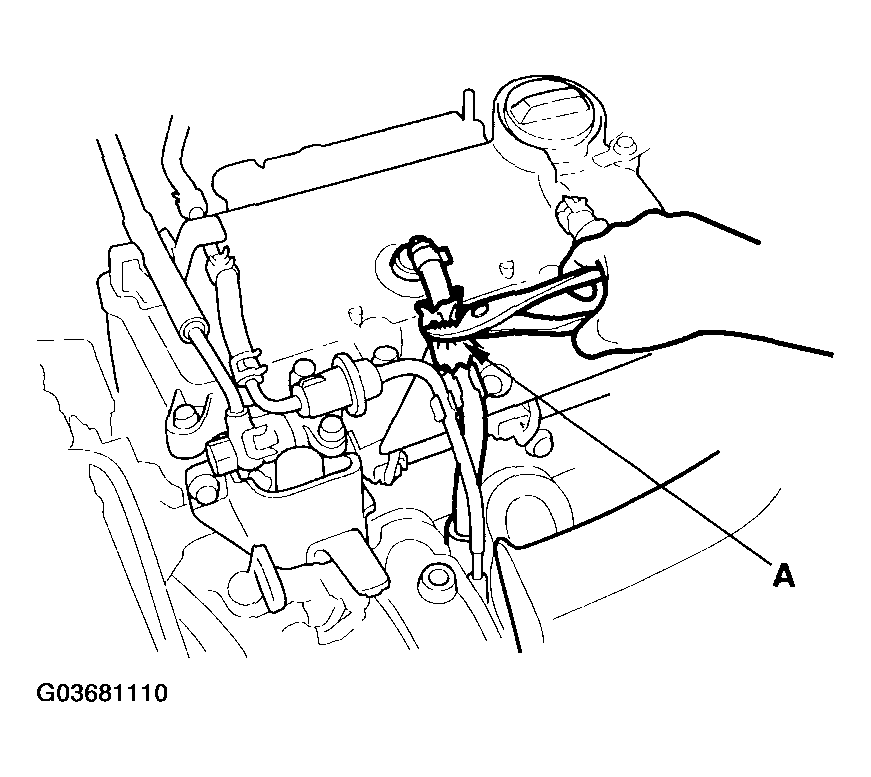

    Fig 3: Pinching Hose Between PCV Valve And Intake Manifold (2000-2004 Models)
    G03681110Courtesy of AMERICAN HONDA MOTOR CO., INC.

    2005-2006 models

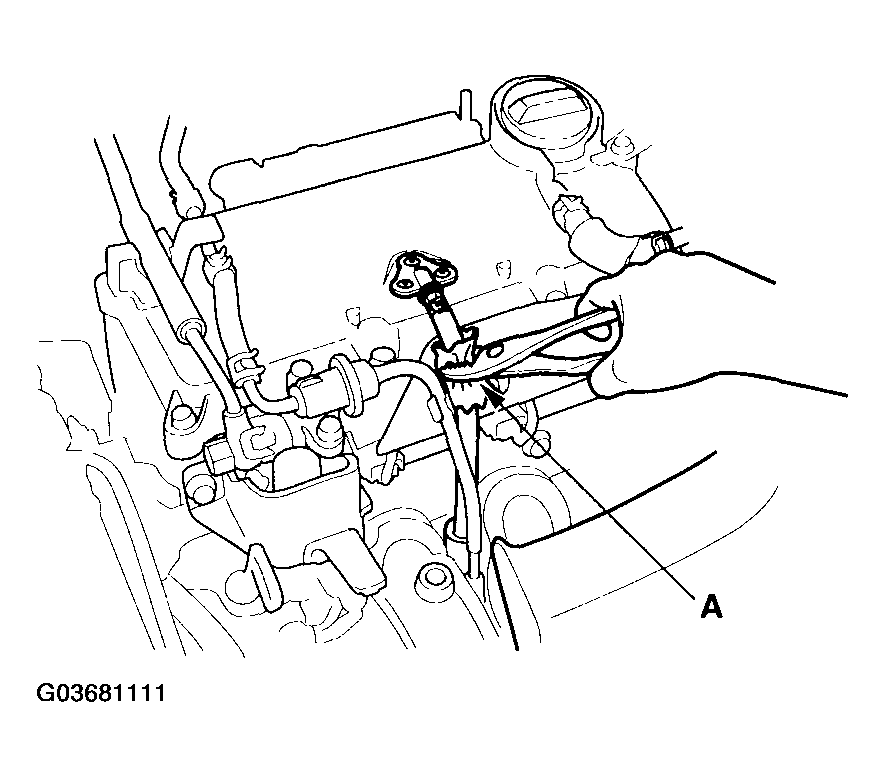

    Fig 4: Pinching Hose Between PCV Valve And Intake Manifold (2005-2006 Models)
    G03681111Courtesy of AMERICAN HONDA MOTOR CO., INC.
