2004 GMC Jimmy (CANADA) V6-4.3LFACTORY OEM SERVICE PROCEDURE
Intake Manifold
Evaporative Emission (EVAP) Canister Purge Solenoid Valve Nut to Intake Manifold 10 Nm (89 inch lbs.)

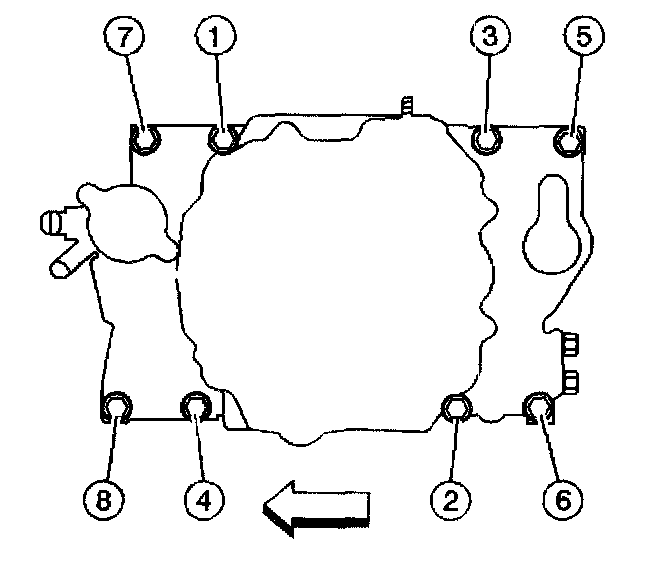

Lower Intake Manifold Bolt
First Pass in Sequence 3 Nm (27 inch lbs.)
Second Pass in Sequence 12 Nm (106 inch lbs.)
Final Pass in Sequence 15 Nm (11 ft. lbs.)
Upper Intake Manifold Stud
First Pass 5 Nm (44 inch lbs.)
Final Pass 9 Nm (80 inch lbs.)
Intake Manifold
Surface Flatness 0.10 mm (0.004 inch)
Throttle body attaching studs 9 Nm (80 inch lbs.)
Lower Intake Manifold Bolt
First Pass in Sequence 3 Nm (27 inch lbs.)
Second Pass in Sequence 12 Nm (106 inch lbs.)
Final Pass in Sequence 15 Nm (11 ft. lbs.)
Upper Intake Manifold Stud
First Pass 5 Nm (44 inch lbs.)
Final Pass 9 Nm (80 inch lbs.)
Intake Manifold
Surface Flatness 0.10 mm (0.004 inch)
Throttle body attaching studs 9 Nm (80 inch lbs.)
