2004 GMC Jimmy (CANADA) V6-4.3LFACTORY OEM SERVICE PROCEDURE
Scan Tool Data Values & Data List

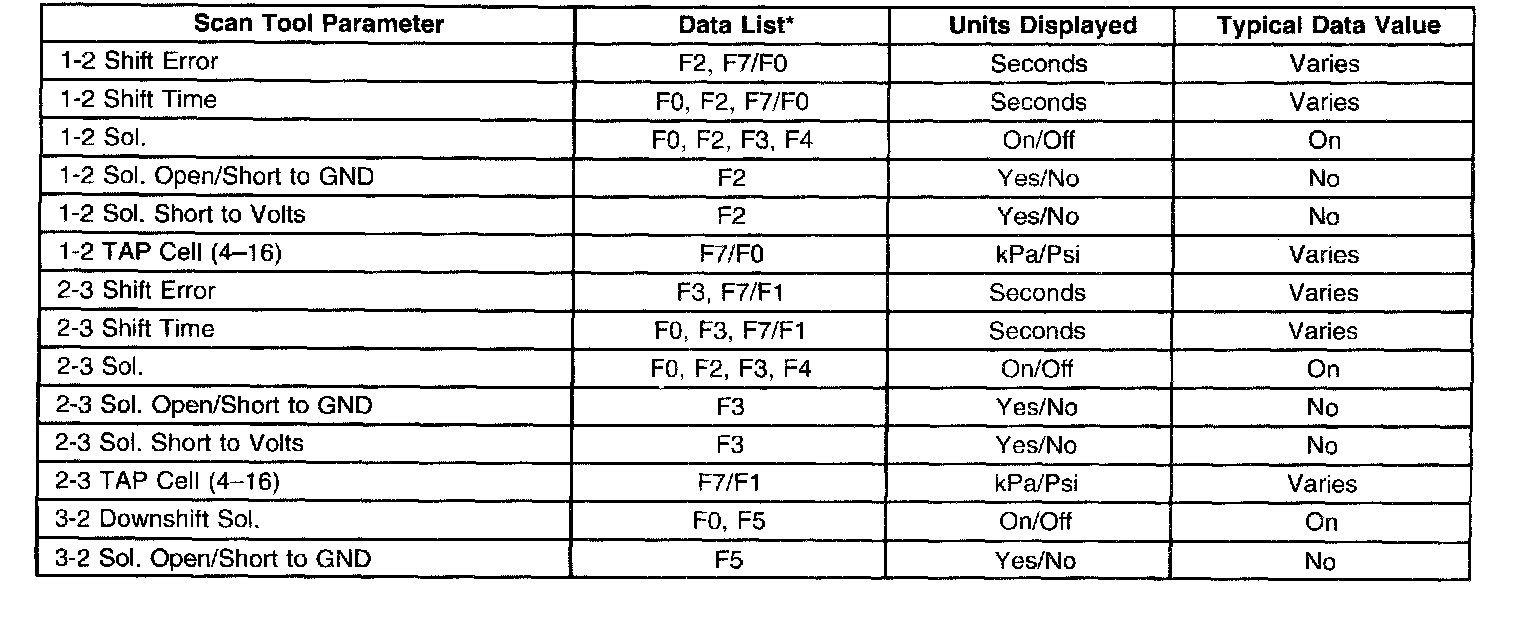

Transmission Scan Tool Data List
Use the scan tool data list under the following conditions:
^ The Diagnostic System Check - Automatic Transmission is complete.
^ The on-board diagnostics are functioning properly.
^ No DTCs are present.
The values below represent a typical display recorded from a properly functioning system.
Important: Do not use a scan tool that displays faulty data. Report the condition to the scan tool manufacturer. The use of a faulty scan tool can result in misdiagnosis and the unnecessary replacement of parts.
Only the parameters listed below are used for diagnosing. If a scan tool displays other parameters, the values are not recommended by General Motors for use in diagnosis.
Scan tool values below were recorded under the following conditions:
^ Engine at idle
^ Upper radiator hose hot
^ Closed throttle
^ Transmission in PARK
^ Closed loop operation
^ Accessories OFF
^ Brake pedal not applied

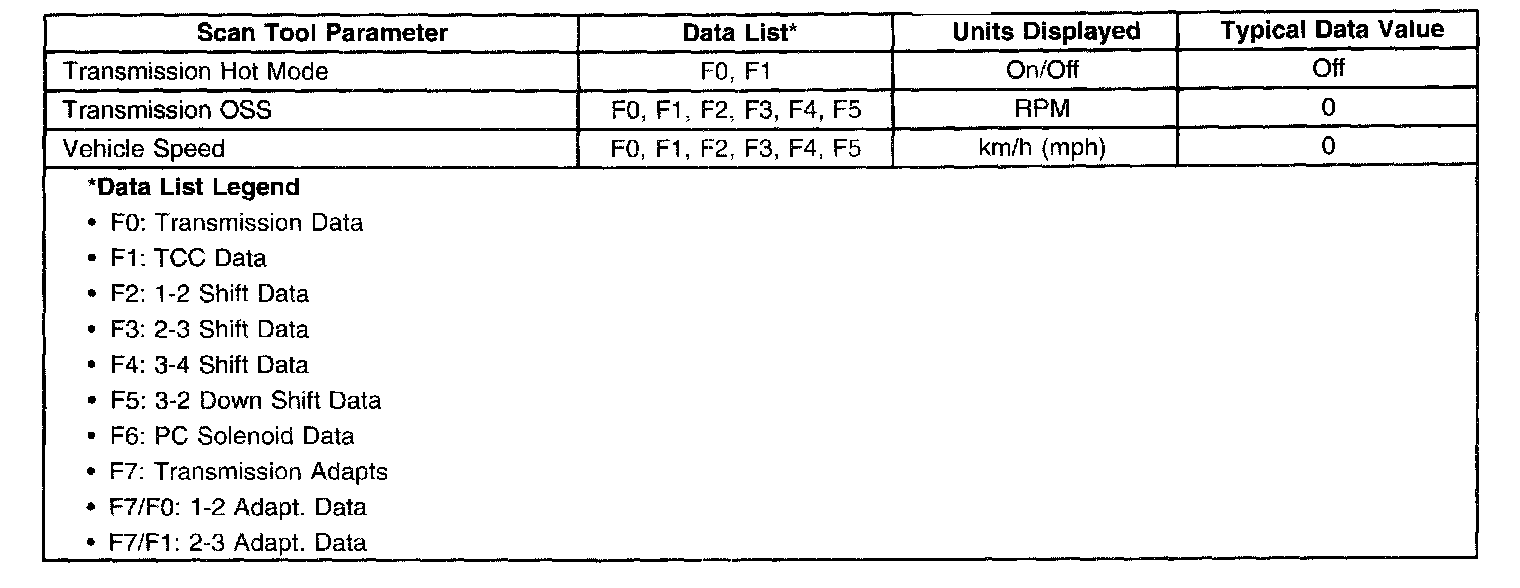

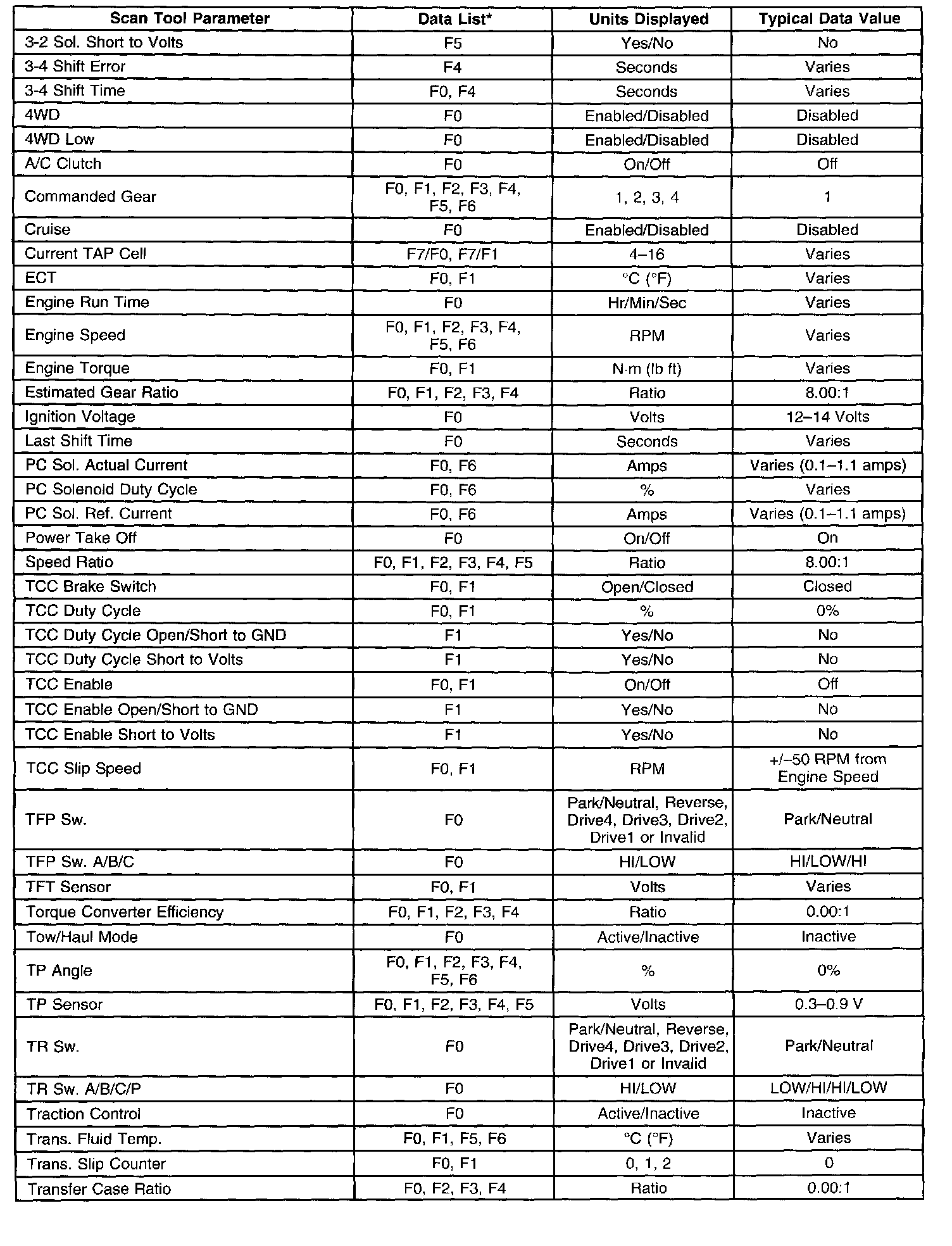

Transmission Scan Tool Data List
Use the scan tool data list under the following conditions:
^ The Diagnostic System Check - Automatic Transmission is complete.
^ The on-board diagnostics are functioning properly.
^ No DTCs are present.
The values below represent a typical display recorded from a properly functioning system.
Important: Do not use a scan tool that displays faulty data. Report the condition to the scan tool manufacturer. The use of a faulty scan tool can result in misdiagnosis and the unnecessary replacement of parts.
Only the parameters listed below are used for diagnosing. If a scan tool displays other parameters, the values are not recommended by General Motors for use in diagnosis.
Scan tool values below were recorded under the following conditions:
^ Engine at idle
^ Upper radiator hose hot
^ Closed throttle
^ Transmission in PARK
^ Closed loop operation
^ Accessories OFF
^ Brake pedal not applied
Transmission Scan Tool Data List
