2011 Ford Mustang V8-5.4L SCFACTORY OEM SERVICE PROCEDURE
Timing Cover
Using new gaskets, position the engine front cover onto the dowels and install the 16 bolts.

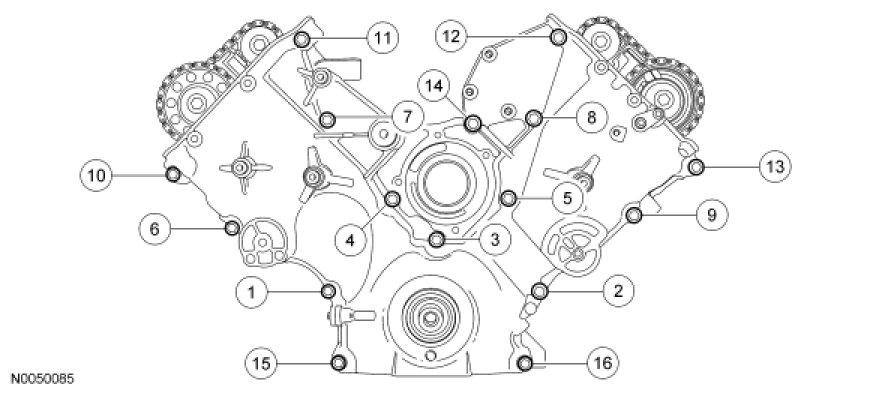

Tighten the bolts in the sequence shown:
Stage 1: Bolts 1 through 14 to 25 Nm (18 lb-ft).
Stage 2: Bolts 15 and 16 to 50 Nm (37 lb-ft).
Install the oil pan-to-engine front cover bolt and the 3 oil pan-to-engine front cover stud bolts.
Tighten to 25 Nm (18 lb-ft).
