2011 Ford Mustang V8-5.4L SCFACTORY OEM SERVICE PROCEDURE
Exploded Views

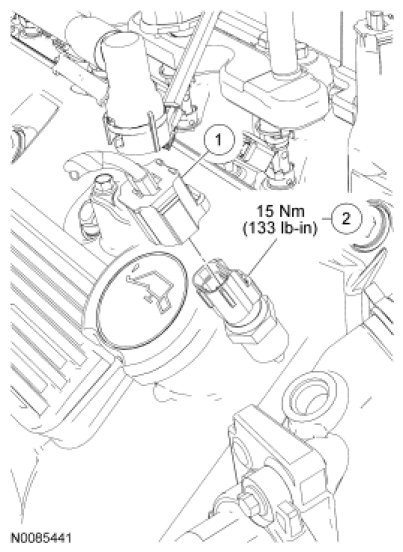

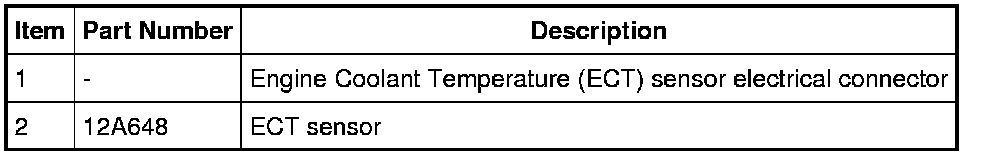

Engine Control Components - Exploded View, 5.4L (4V)
Engine Coolant Temperature (ECT) Sensor
NOTE: Drain the cooling system prior to removing the Engine Coolant Temperature (ECT) sensor. For additional information, refer to Engine Cooling Cooling System Draining, Filling and Bleeding.
NOTE: Fill and bleed the cooling system after installing the ECT sensor. For additional information, refer to Engine Cooling Cooling System Draining, Filling and Bleeding.
1. Refer to the procedures and/or exploded views for any Warnings, Notices, Notes, Materials, Specifications, and Special Tools. Items in the exploded views may not be listed in order of removal.
