2011 Ford Mustang V8-5.4L SCFACTORY OEM SERVICE PROCEDURE
Seat Temperature Control Module
Seat - Exploded View, Front

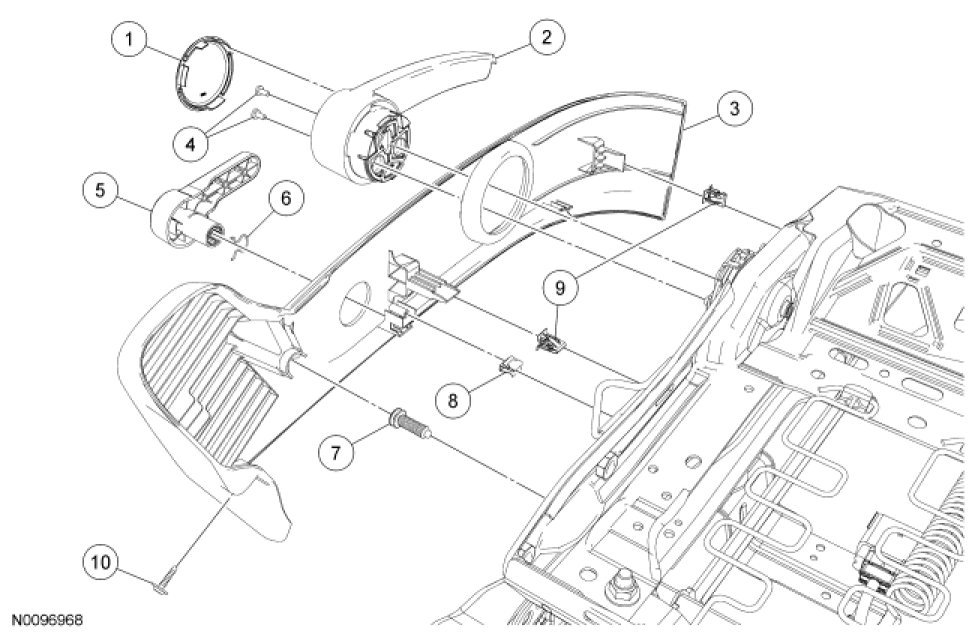

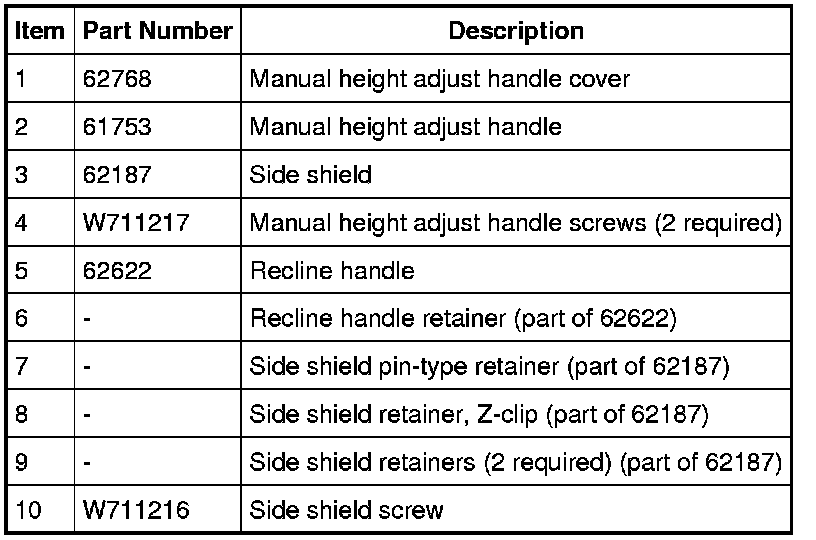

Cushion Side Shield - Manual
NOTE: LH shown, RH similar.

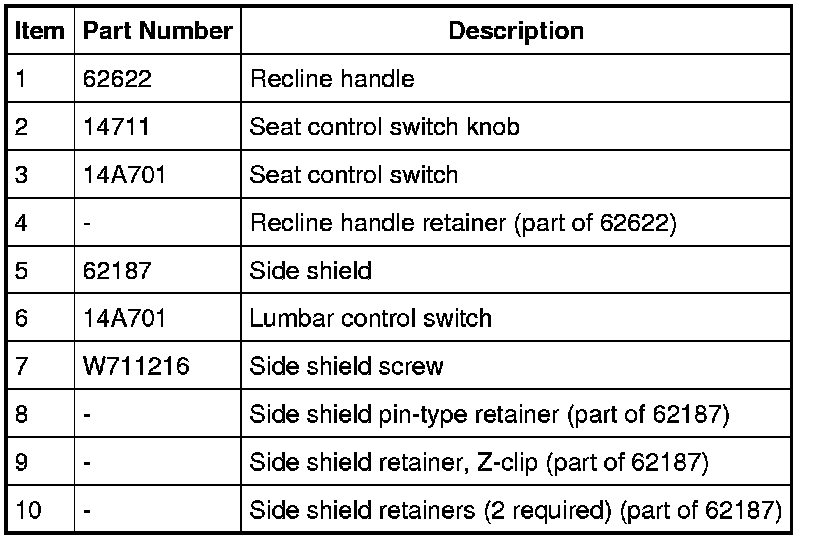

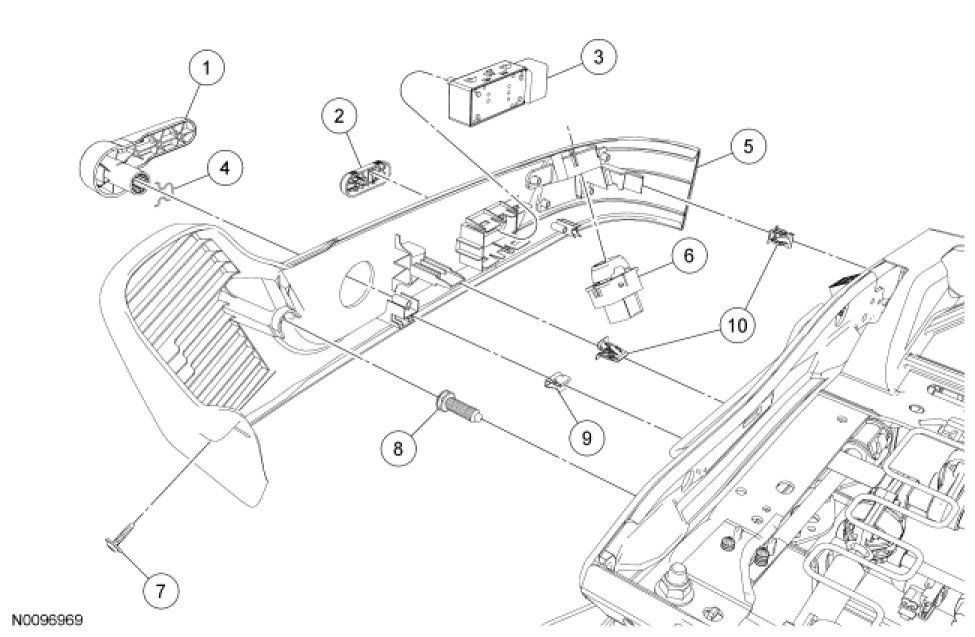

Cushion Side Shield - Power
NOTE: LH shown, RH similar.

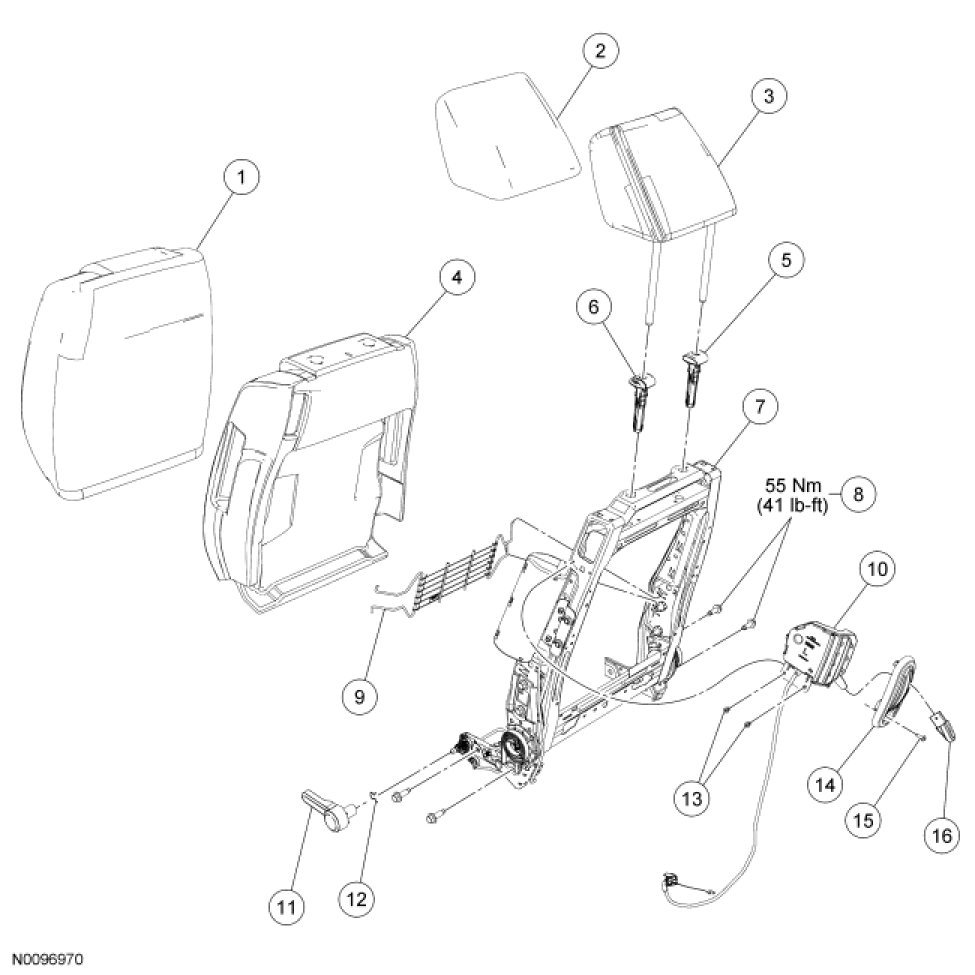

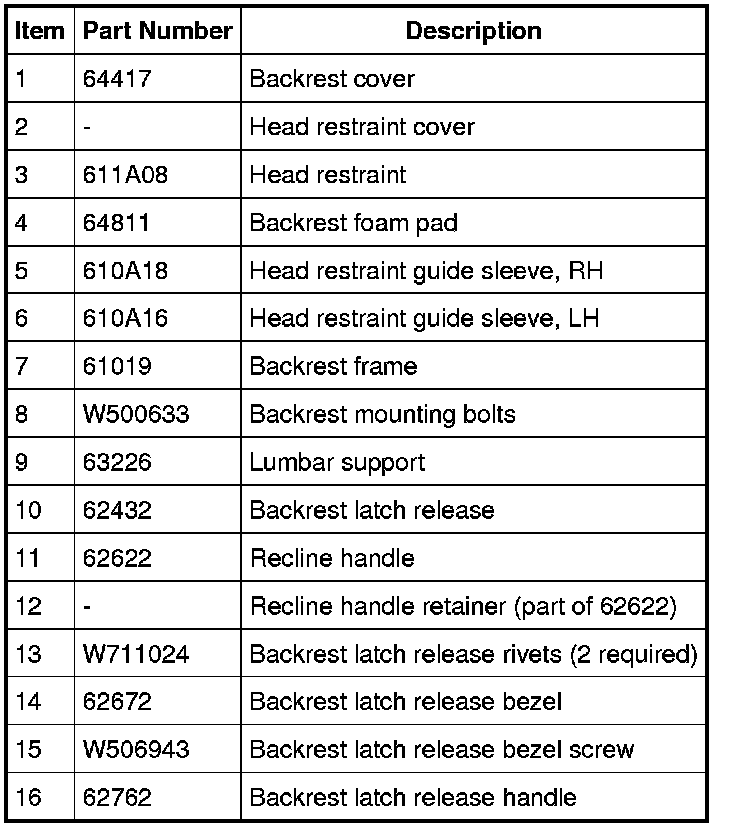

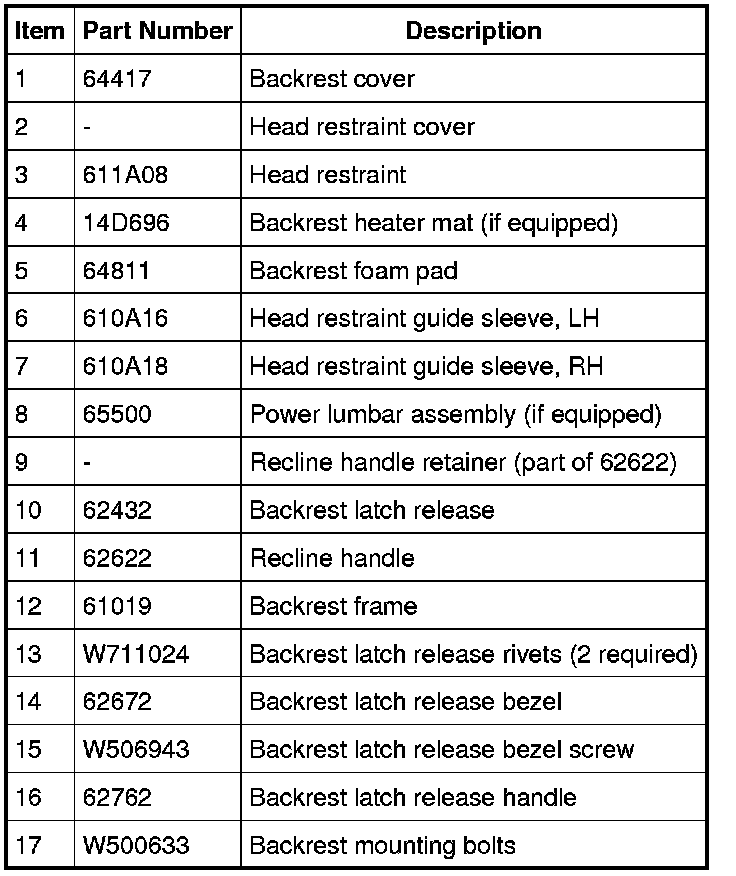

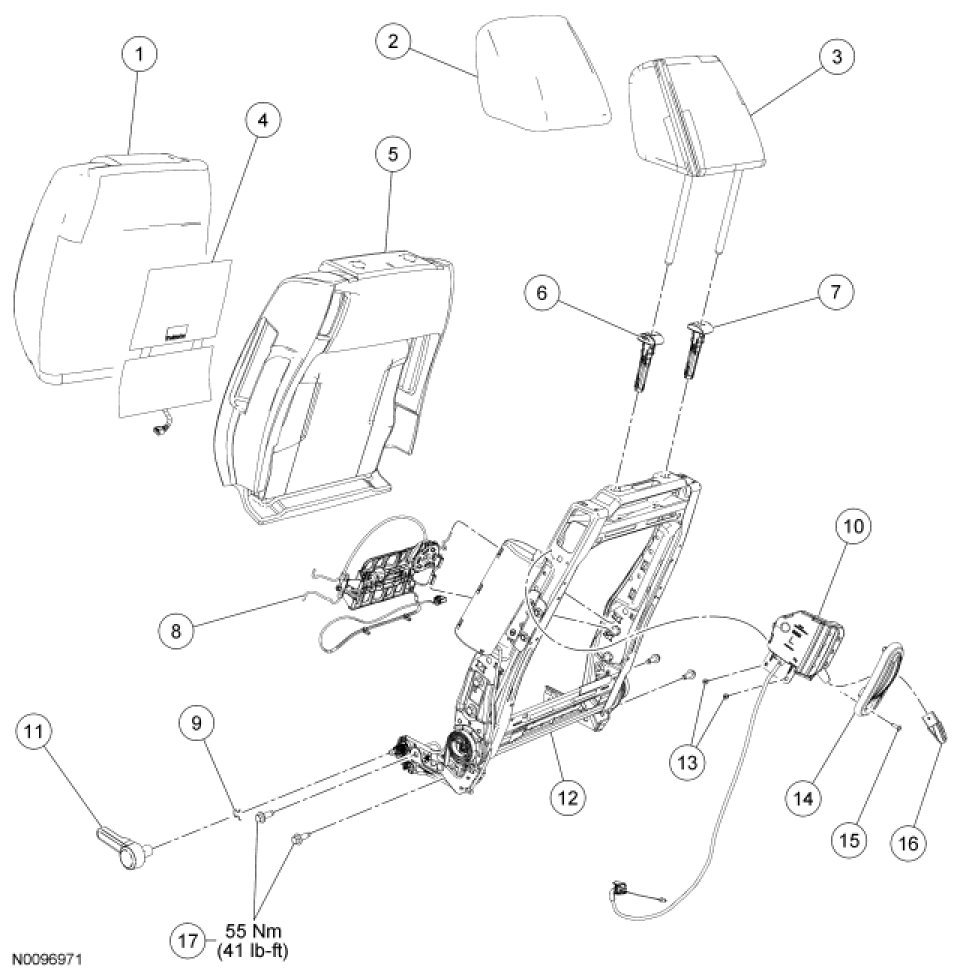

Seat Backrest - Manual
NOTE: LH shown, RH similar.
Seat Backrest - Power
NOTE: LH shown, RH similar.

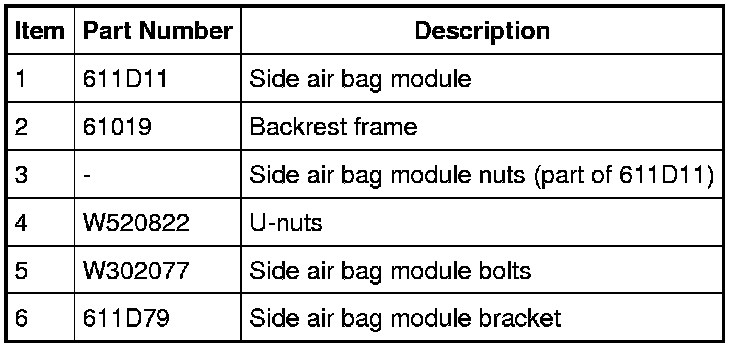

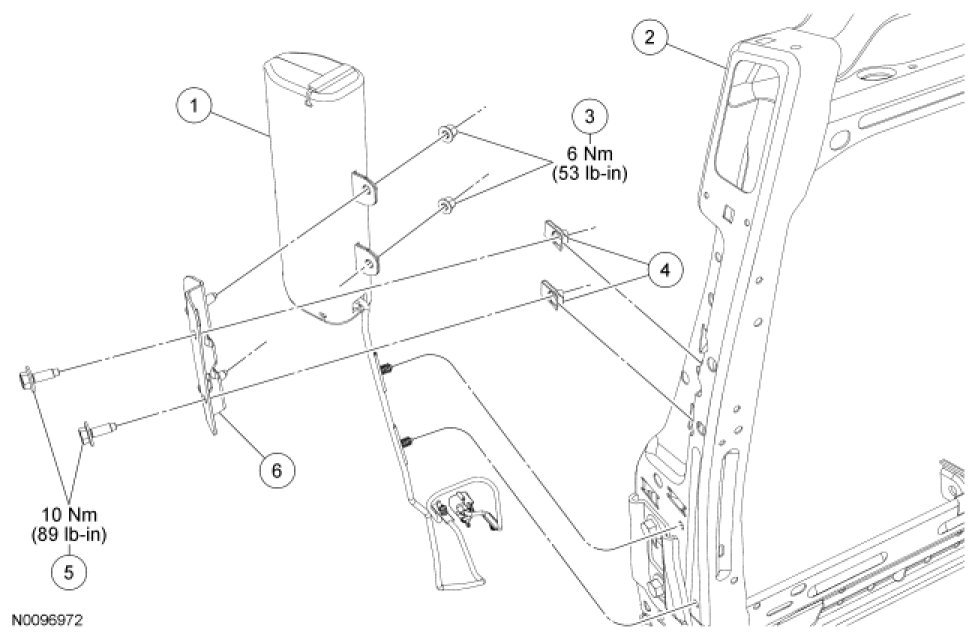

Seat Side Air Bag Module
NOTE: LH shown, RH similar.

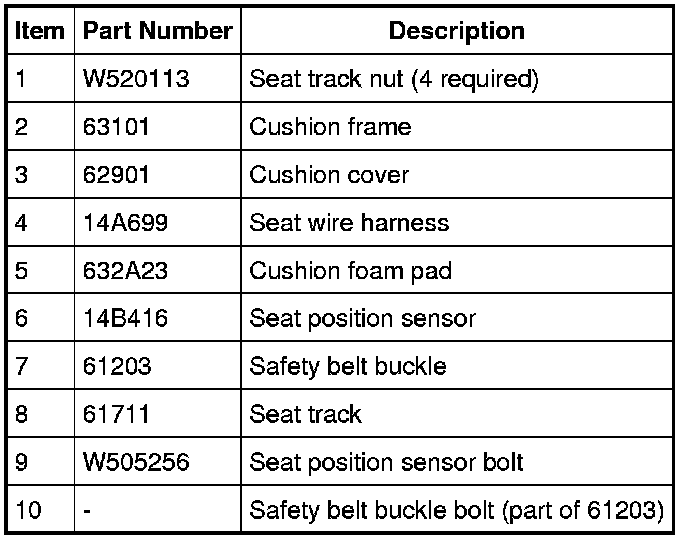

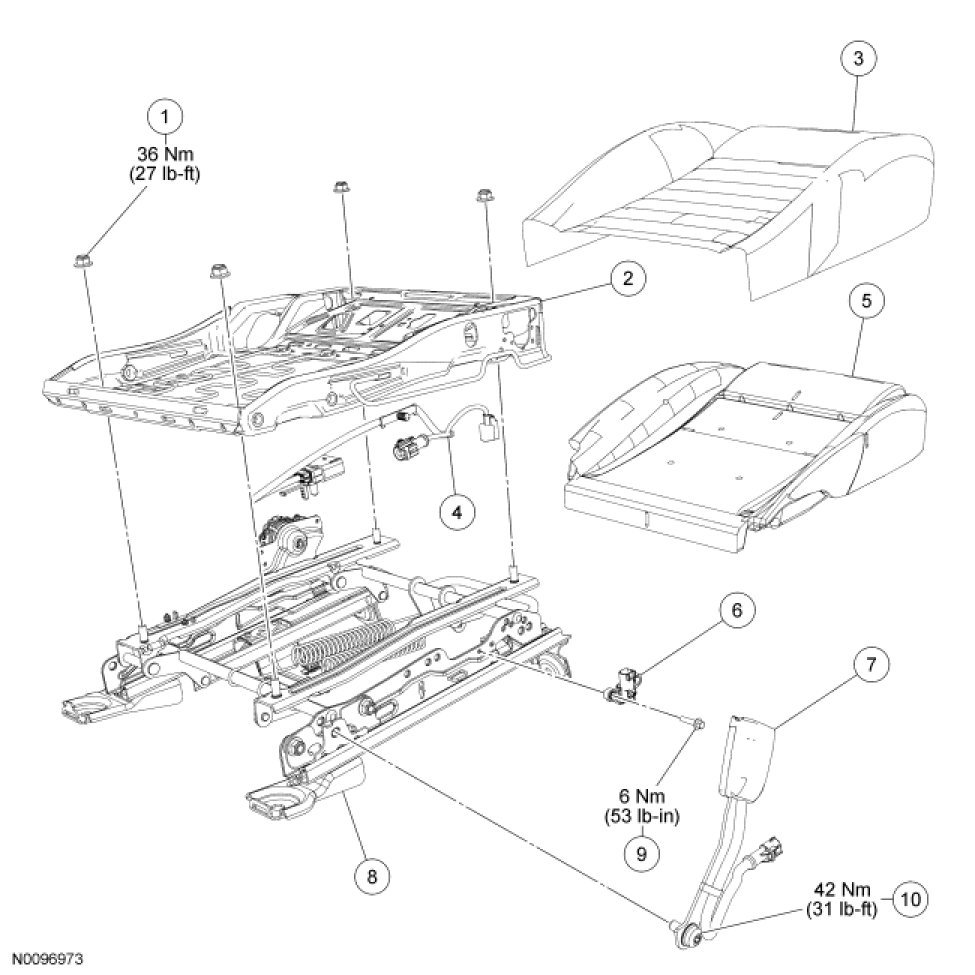

Seat Cushion - Driver, Manual

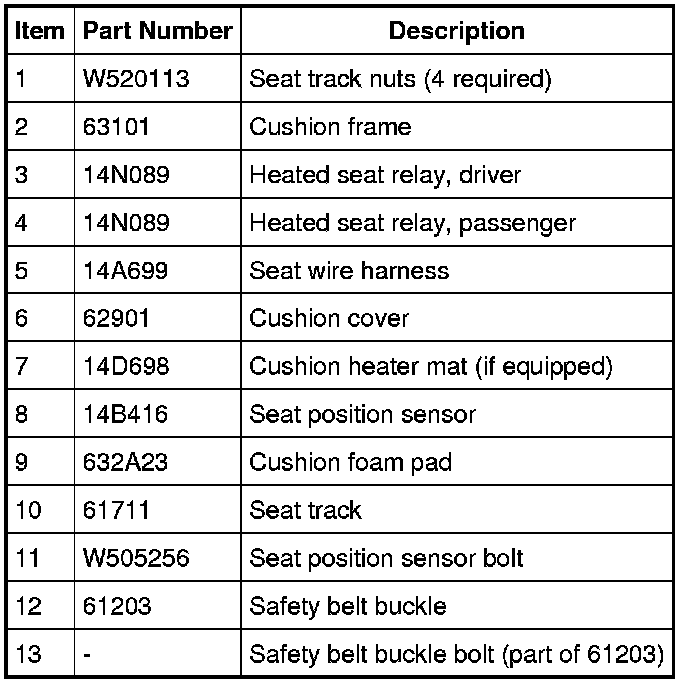

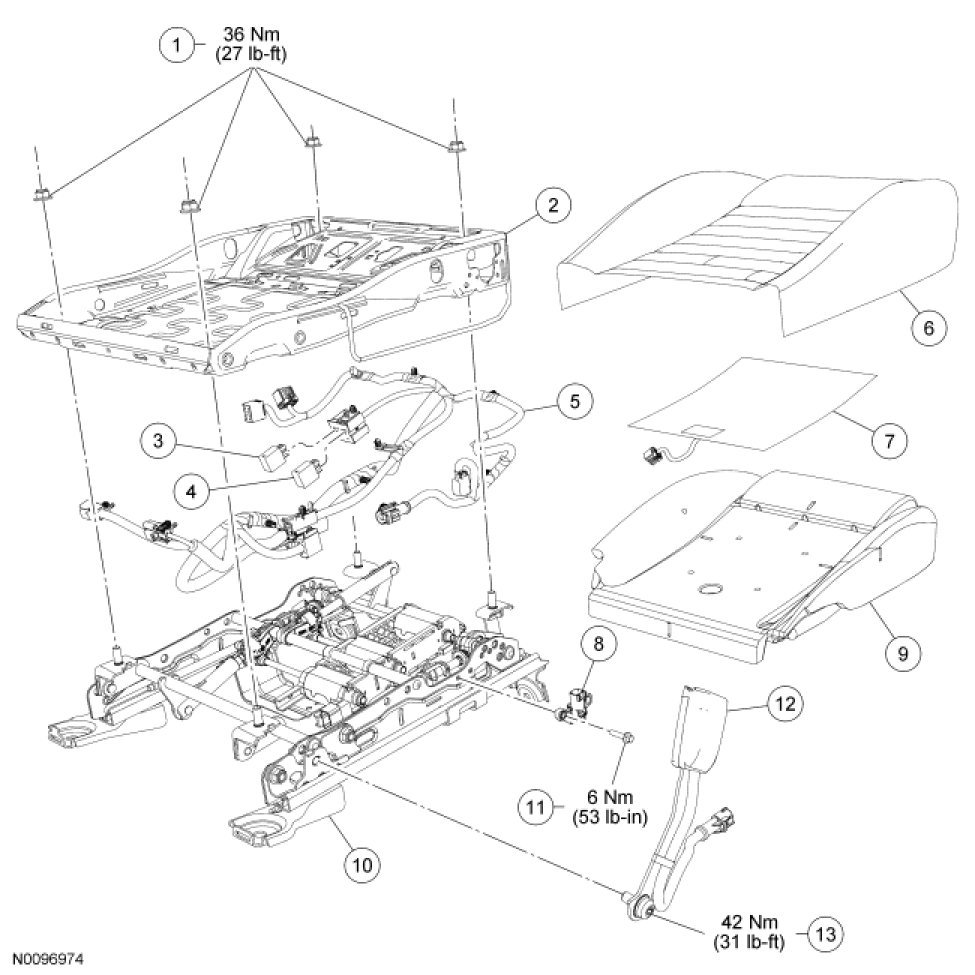

Seat Cushion - Driver, Power

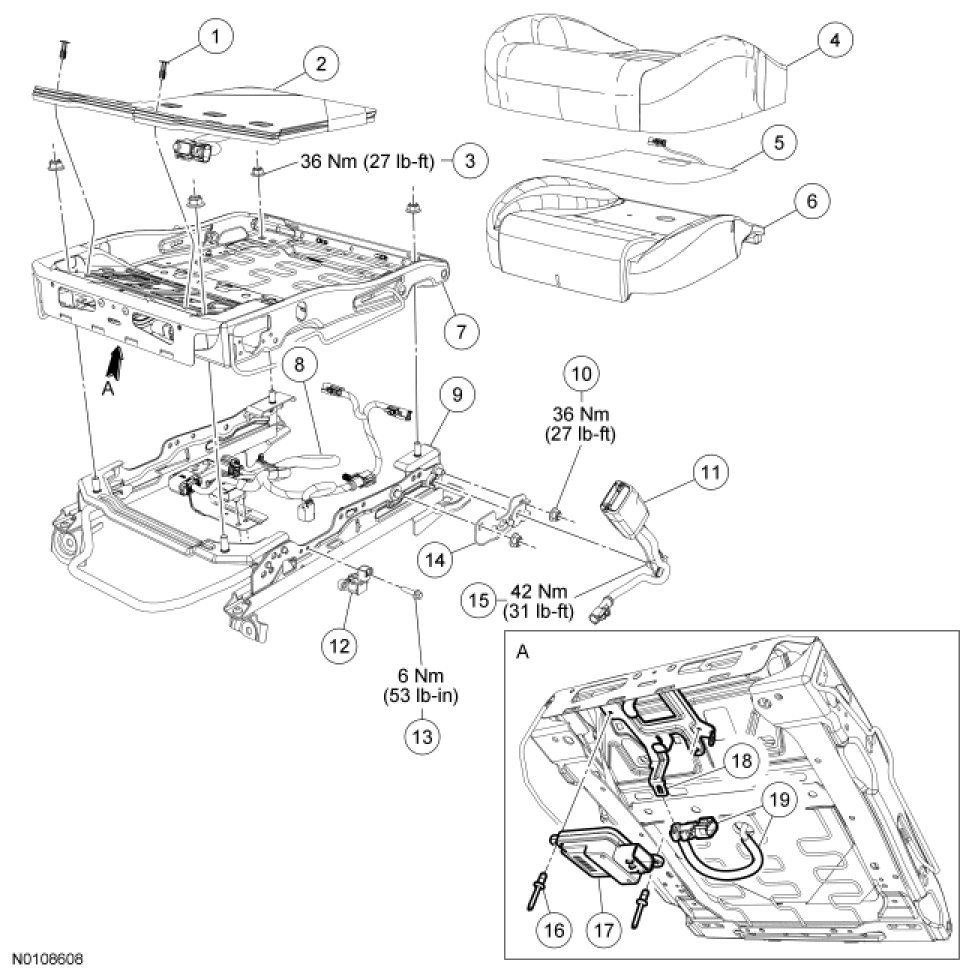

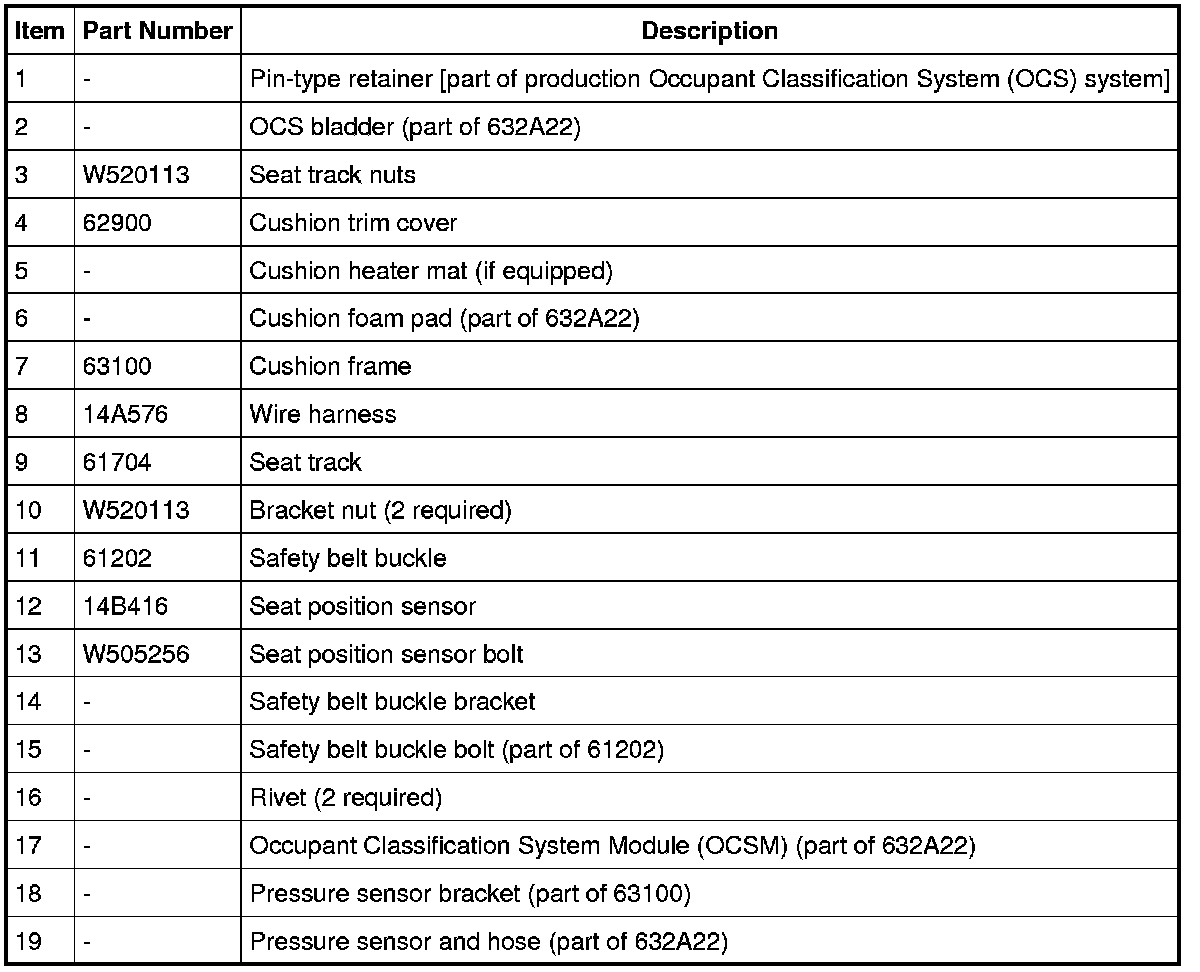

Seat Cushion - Passenger
NOTE: Production Occupant Classification System (OCS) system is shown. For OCS system service kit, refer to Occupant Classification Sensor procedure in Supplemental Restraint System Service and Repair.
NOTE: Manual seat shown, power similar.
