2011 Ford Mustang V8-5.4L SCFACTORY OEM SERVICE PROCEDURE
Engine Temperature Sensor

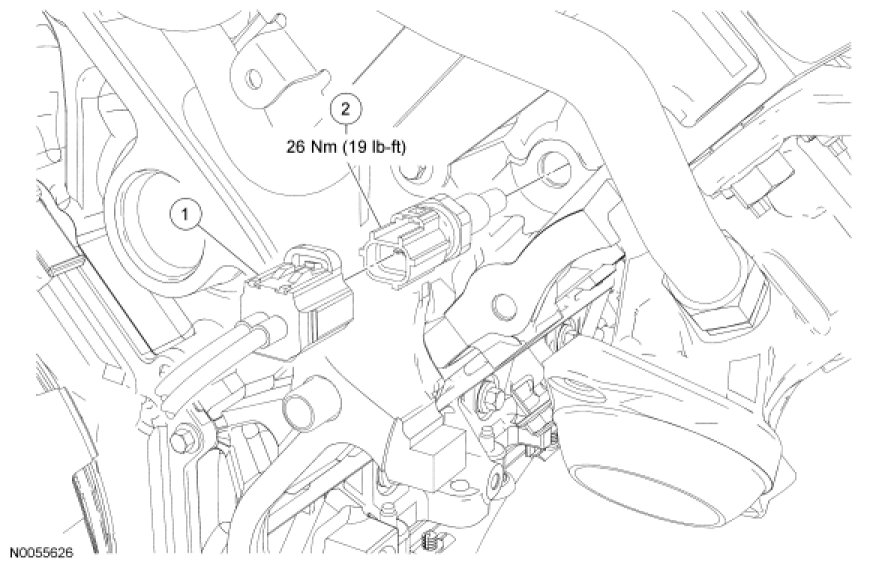

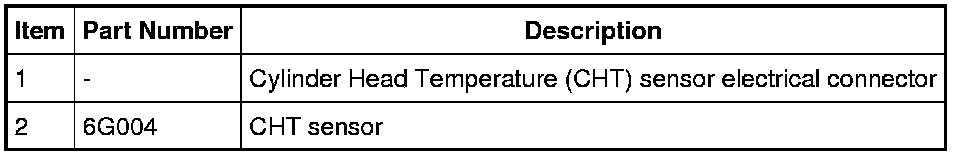

Engine Control Components - Exploded View, 5.4L (4V)
Cylinder Head Temperature (CHT) Sensor
NOTE: The battery tray must be removed to perform this procedure. For additional information, refer to Battery, Mounting and Cables Battery and Battery Tray - Exploded View.
NOTE: Do not reuse the CHT sensor, install a new sensor.

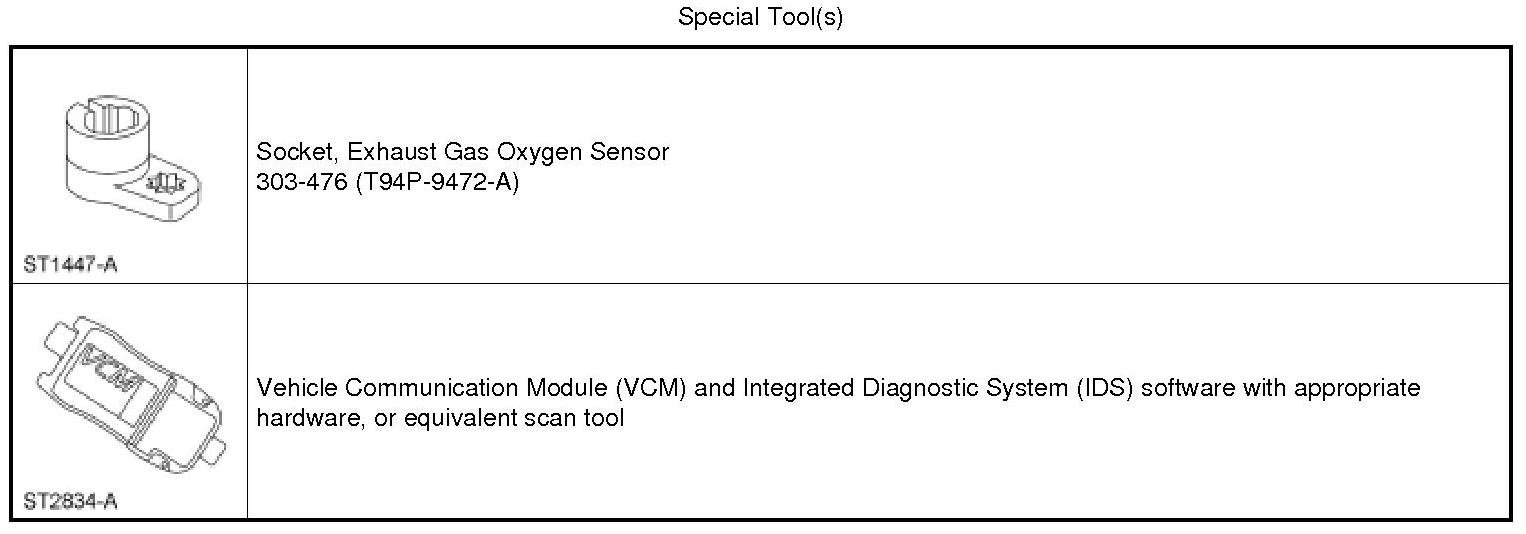

1. Refer to the procedures and/or exploded views for any Warnings, Notices, Notes, Materials, Specifications, and Special Tools. Items in the exploded views may not be listed in order of removal.
