2011 Ford Focus L4-2.0LFACTORY OEM SERVICE PROCEDURE
Power Window Switch: Service and Repair
Window Control Switch
Removal and Installation

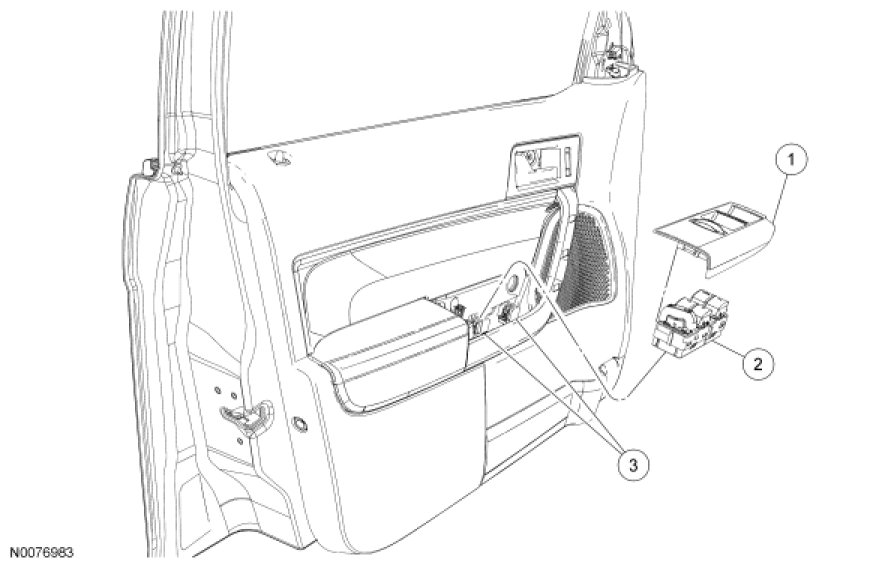

NOTE: Driver window control switch shown, all others similar.

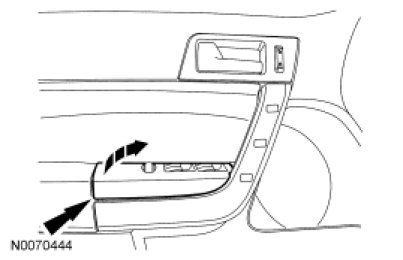

1. NOTE: Front window control switch shown, all others similar.
Lift upward at the rear of the window control switch panel.
- Disconnect the electrical connector(s).
- Remove the control switch.
2. To install, reverse the removal procedure.
