2011 Ford Focus L4-2.0LFACTORY OEM SERVICE PROCEDURE
Exhaust System
Exhaust System - Exploded View

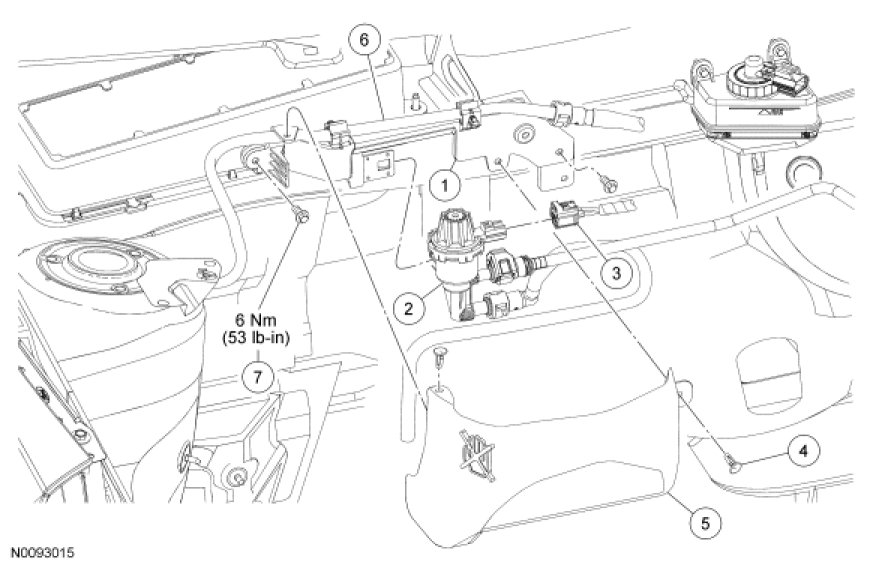

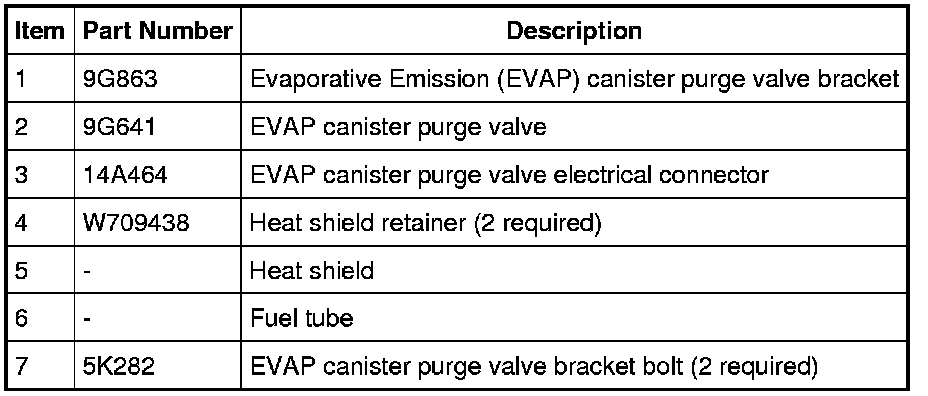

Heat Shield and Purge Valve

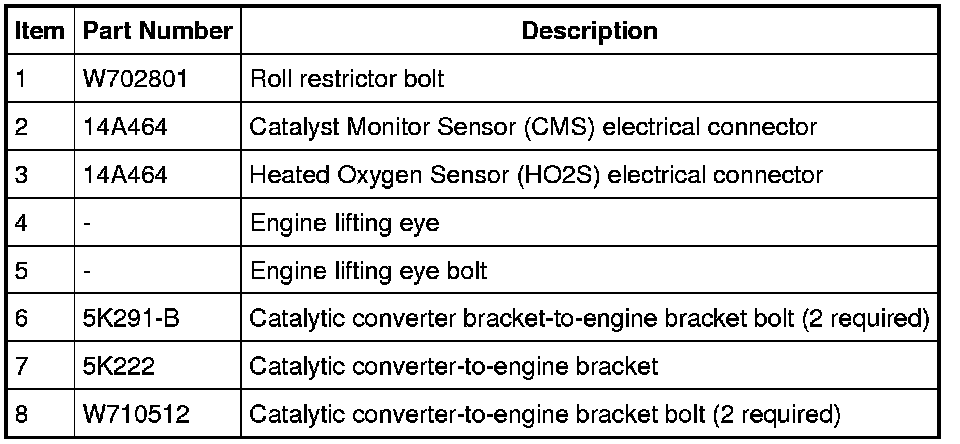

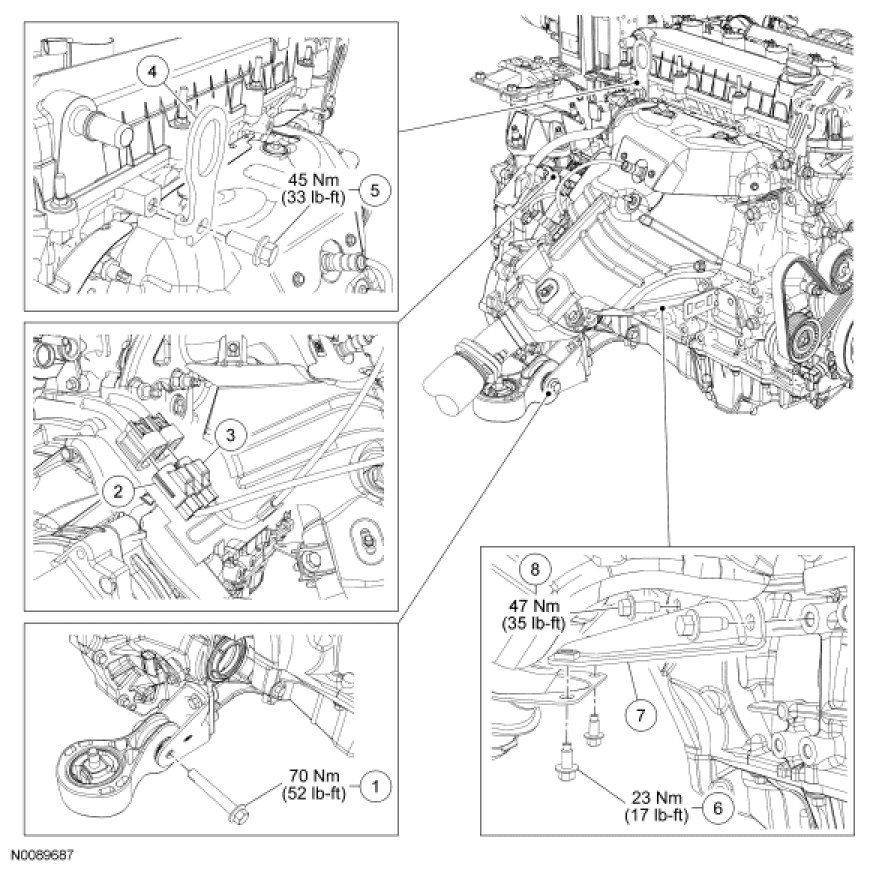

Engine Roll Restrictor, Catalytic Converter Bracket and Electrical Connectors

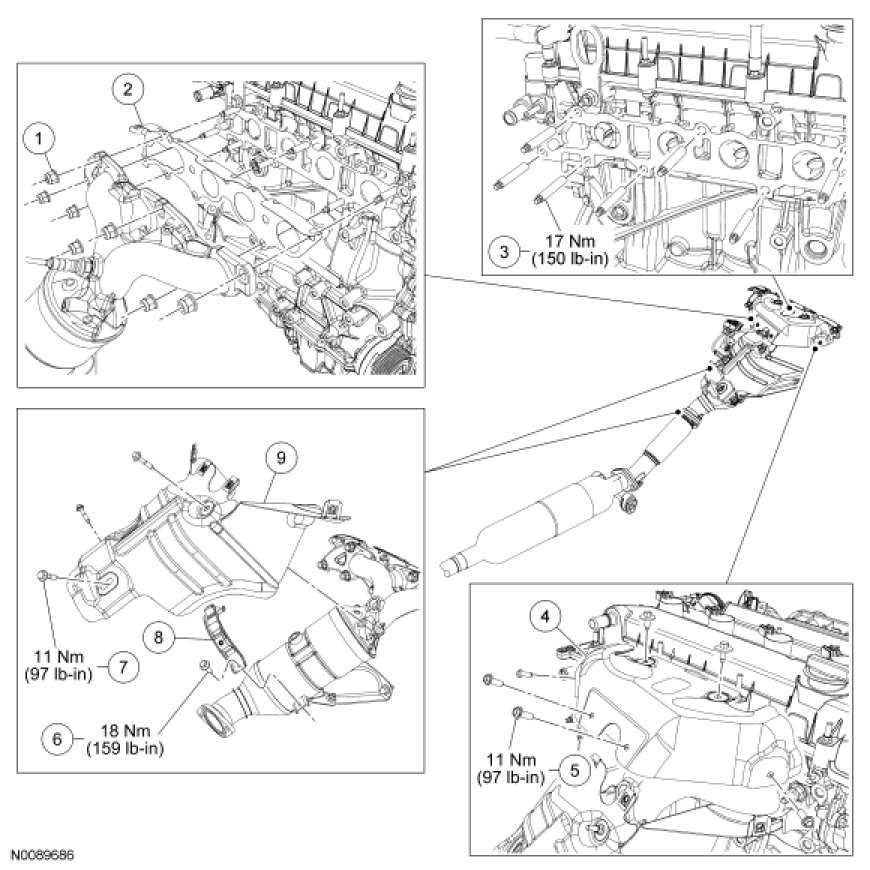

Heat Shields, Catalytic Converter and Studs

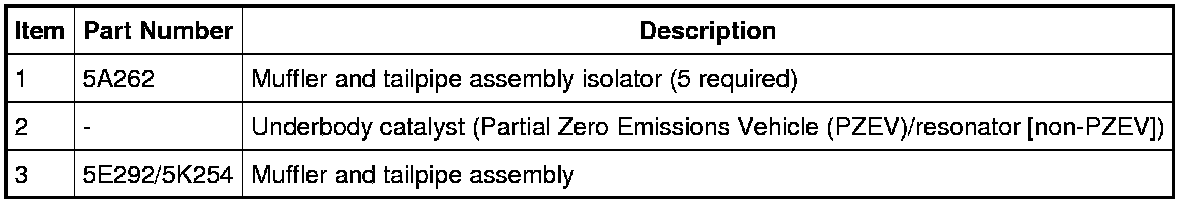

Underbody Catalyst/Resonator, Muffler and Tail Pipe
Exhaust Flexible Pipe - Partial Zero Emissions Vehicle (PZEV)

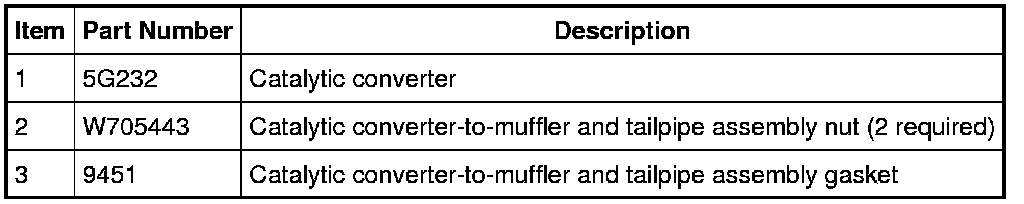

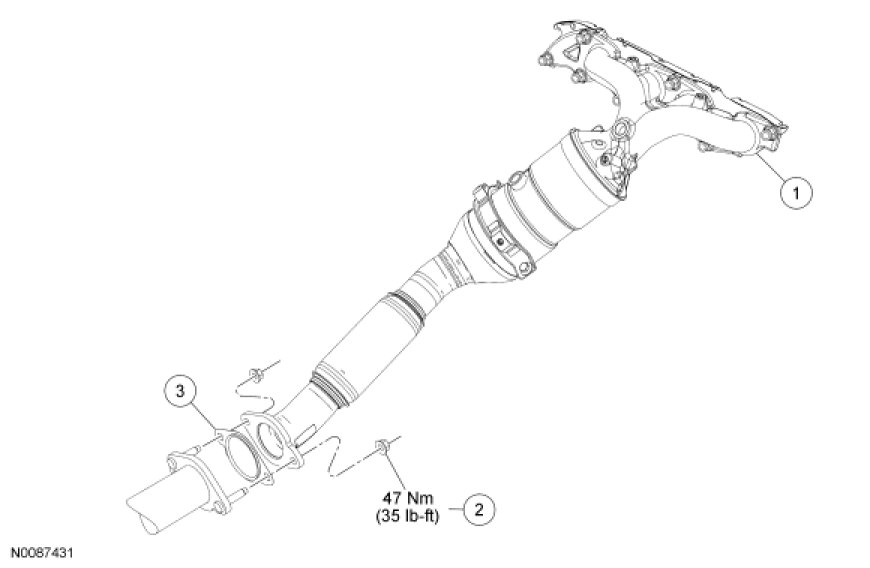

Catalytic Converter-to-Muffler and Tailpipe Assembly - Non-Partial Zero Emissions Vehicle (PZEV)
