2011 Ford Escape 4WD L4-2.5LFACTORY OEM SERVICE PROCEDURE
Camshaft Position Sensor: Service and Repair
Camshaft Position (CMP) Sensor
Removal and Installation

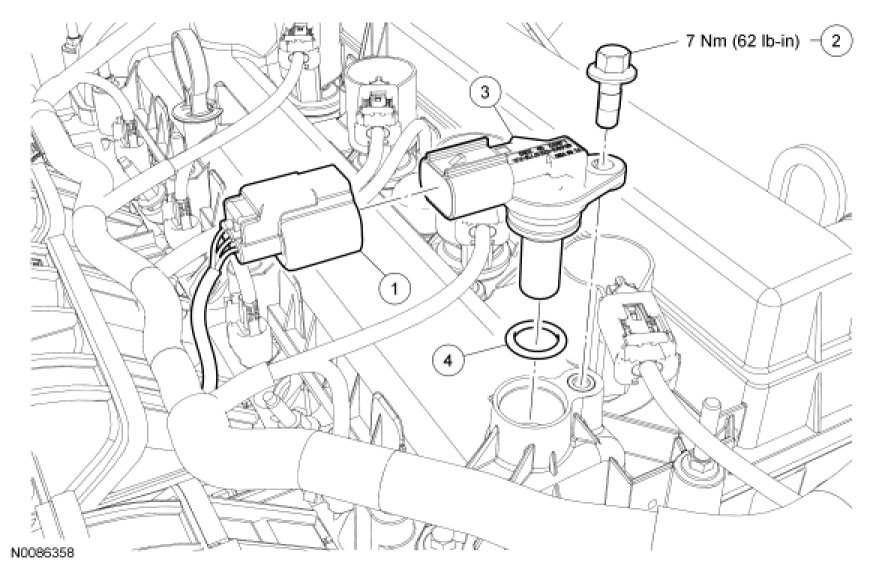

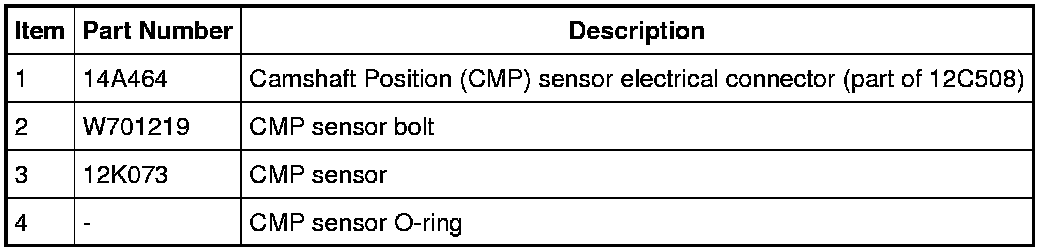

1. Disconnect the Camshaft Position (CMP) sensor electrical connector.
2. Remove the bolt and the CMP sensor.
- To install, tighten to 7 Nm (62 lb-in).
- Inspect the O-ring seal and install new as necessary.

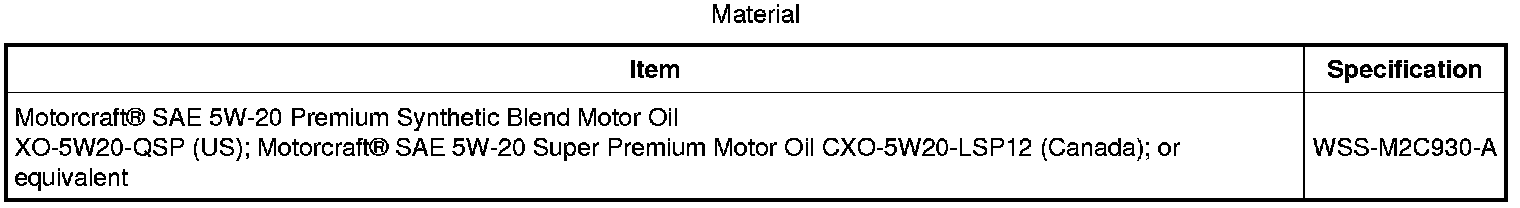

3. NOTE: Lubricate the CMP sensor O-ring seal with clean engine oil.
To install, reverse the removal procedure.
