2011 Ford Escape 4WD L4-2.5LFACTORY OEM SERVICE PROCEDURE
Catalyst Monitor Sensor
Catalyst Monitor Sensor
Removal and Installation
1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to Jacking and Lifting Service and Repair.
2. Disconnect the Catalyst Monitor Sensor (CMS) electrical connector.

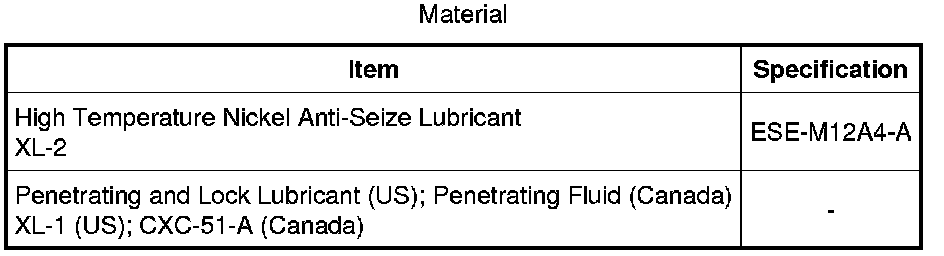

3. NOTE: If necessary, lubricate the sensor threads with penetrating and lock lubricant to assist in removal.

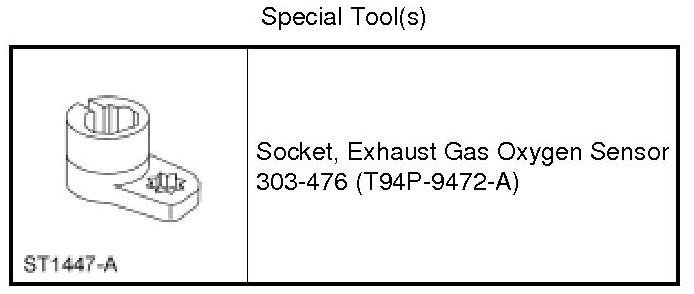

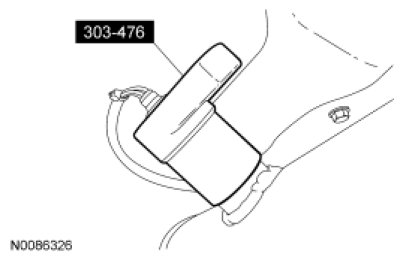

Using the Exhaust Gas Oxygen Sensor Socket, remove the CMS.
- Calculate the correct torque wrench setting for the following torque. Refer to the Torque Wrench Adapter Formulas in the Appendix.
- To install, tighten to 48 Nm (35 lb-ft).
4. NOTE: Apply a light coat of anti-seize lubricant to the threads of the CMS.
To install, reverse the removal procedure.
