2011 Ford Escape 4WD L4-2.5LFACTORY OEM SERVICE PROCEDURE
Keyless Entry Key-Pad: Service and Repair
Keyless Entry Keypad
Removal and Installation
1. Remove the LH front door trim panel. For additional information, refer to Interior Trim and Ornamentation Service and Repair.
2. Position the water shield aside.

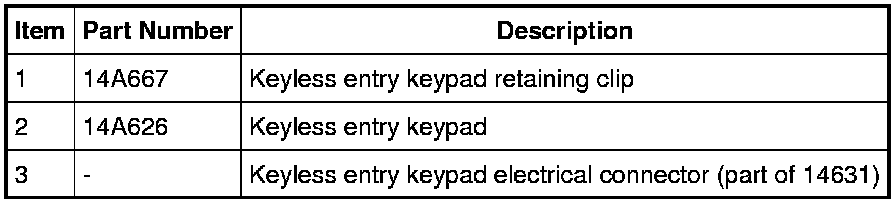

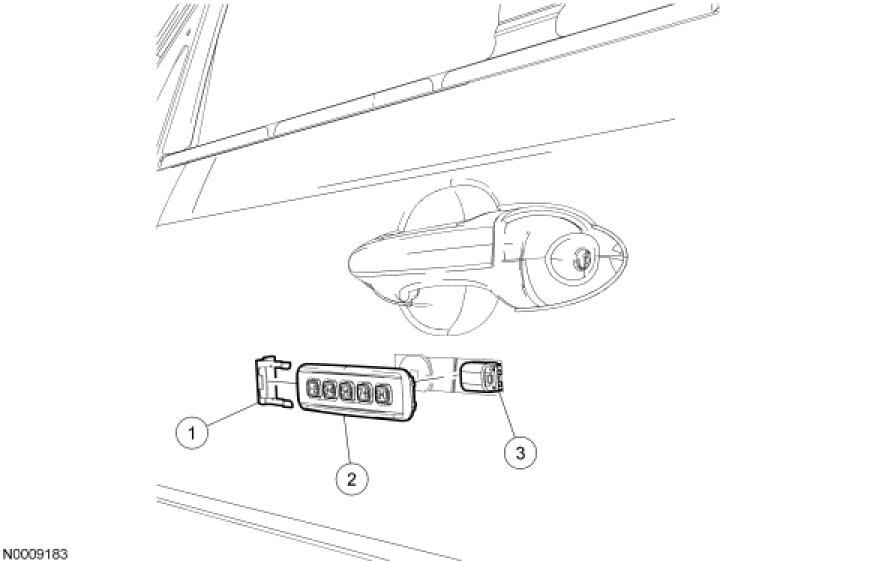

3. Remove the keypad retaining clip.
4. Remove the keypad from the door.
- Disconnect the electrical connector.
5. To install, reverse the removal procedure.
