2011 Ford Edge AWD V6-3.5L
Key Programming - Enable/Disable Spare Key Programming
2011 Ford Edge AWD V6-3.5LSECTION Key Programming - Enable/Disable Spare Key Programming
Key Programming - Enable/Disable Spare Key Programming
NOTE: This procedure provides the capability to enable/disable the normal customer spare key programming procedure detailed in the Owner's Literature and Key Programming - Program a Key Using Two Programmed Keys Key Programming - Program a Key Using Two Programmed Keys. If spare key programming is disabled, spare keys can only be programmed by using the Key Programming Using Diagnostic Equipment Key Programming Using Diagnostic Equipment procedure.
1. Turn the ignition from the OFF position to the RUN position.

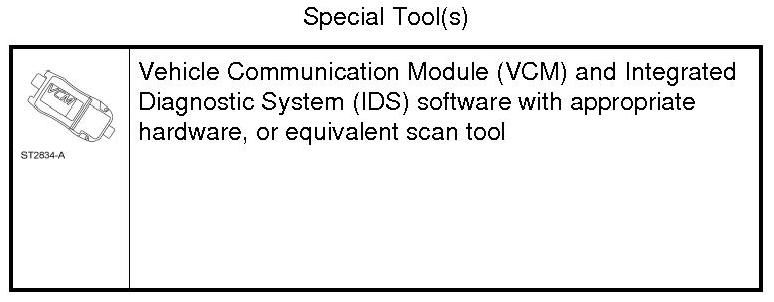

2. From the scan tool, enter TOOLBOX. Select Body>Security>PATS Functions and follow the Integrated Diagnostic System (IDS) on-screen instructions to enter PATS (Passive Anti-Theft System) security access.
3. From the scan tool menu select "Customer Spare Key Programming Enable" or "Customer Spare Key Programming Disable" and follow the IDS (Integrated Diagnostic System) on-screen instructions.
